Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix SL Disc, 30T-24T HM UD Carbon, 12mm TA, flatmount
Suspension Fork
Fenix SL Disc, 30T - 24T HM UD Carbon, 12mm TA, flatmount
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano 105 11/28
Crank
Rotor 3D30 52/36
Chain
KMC x11
Wheels
Rims
DT Swiss R24 DB
Tires
Vittoria Rubino Pro 28mm
Brakes
Brakes
Shimano Ultegra Disc
Cockpit
Stem
Forza Stratos
Handlebar
Forza Cirrus E2
Seat
Saddle
Forza Cirrus Pro
Seatpost
Forza Cirrus
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.41 mm | 1.41 mm | 1.46 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 46 mm | 43 mm | 45 mm | 45 mm |
| Trail | 64 mm | 63 mm | 56 mm | 56 mm | 53 mm | 50 mm |
| Stack | 506 mm | 526 mm | 541 mm | 572 mm | 598 mm | 623 mm |
| Reach | 378 mm | 373 mm | 383 mm | 391 mm | 395 mm | 402 mm |
| Top Tube Length | 514 mm | 524 mm | 544 mm | 564 mm | 584 mm | 599 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71.8 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 107 mm | 127 mm | 142 mm | 172 mm | 202 mm | 227 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 412 mm | 412 mm |
| Wheelbase | 974 mm | 974 mm | 981 mm | 991 mm | 1009 mm | 1018 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 739 mm | 764 mm | 788 mm | 819 mm | 849 mm | 877 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

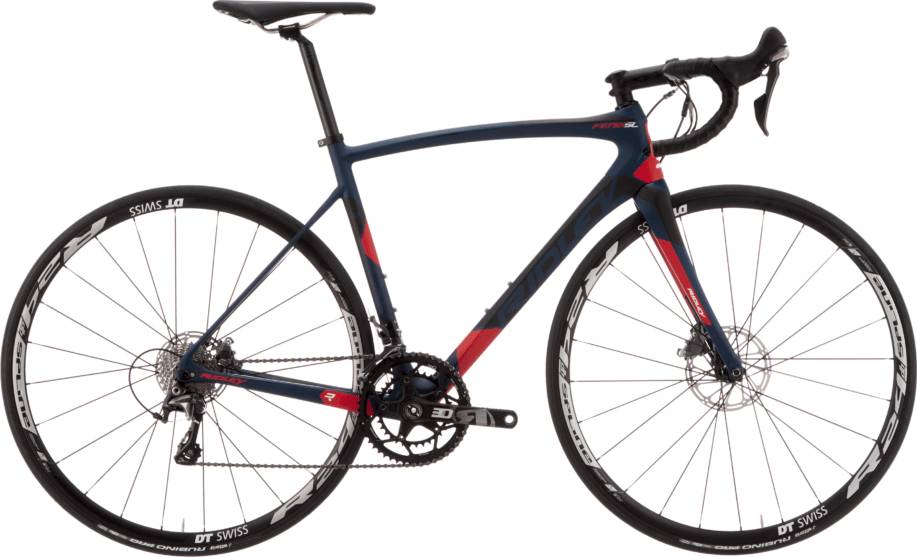

Model Overview
Fenix SL Disc Ultegra completes the Ridley Fenix model. Ridley launched 107 bikes of this model so far. Take a sneak peek at all Ridley Fenix bikes models from 2018, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Fenix SL Disc Ultegra components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Ridley Fenix SL Disc Ultegra 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Fenix SL Disc Ultegra has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
