Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix SL, 30T-24T HM Unidirectional carbon
Suspension Fork
Fenix SL, 30T-24T HM Unidirectional carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano 105, 11-28
Crank
Shimano Ultegra 52/36
Chain
KMC X11
Wheels
Rims
4ZA RC23 SL
Tires
Continental Ultrasport Folding 25mm
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra
Cockpit
Stem
New 4ZA Stratos
Handlebar
4ZA Stratos E2
Seat
Saddle
4ZA Cirrus Pro, Cr/Ti rails
Seatpost
New 4ZA Stratos 27,2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.42 mm | 1.42 mm | 1.47 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 46 mm | 43 mm | 45 mm | 45 mm |
| Trail | 64 mm | 63 mm | 56 mm | 56 mm | 53 mm | 50 mm |
| Stack | 500 mm | 520 mm | 535 mm | 566 mm | 592 mm | 617 mm |
| Reach | 372 mm | 367 mm | 377 mm | 385 mm | 389 mm | 396 mm |
| Top Tube Length | 508 mm | 518 mm | 538 mm | 558 mm | 578 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71.8 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 107 mm | 127 mm | 142 mm | 172 mm | 202 mm | 227 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 406 mm | 406 mm |
| Wheelbase | 968 mm | 968 mm | 975 mm | 985 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 733 mm | 758 mm | 782 mm | 813 mm | 843 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

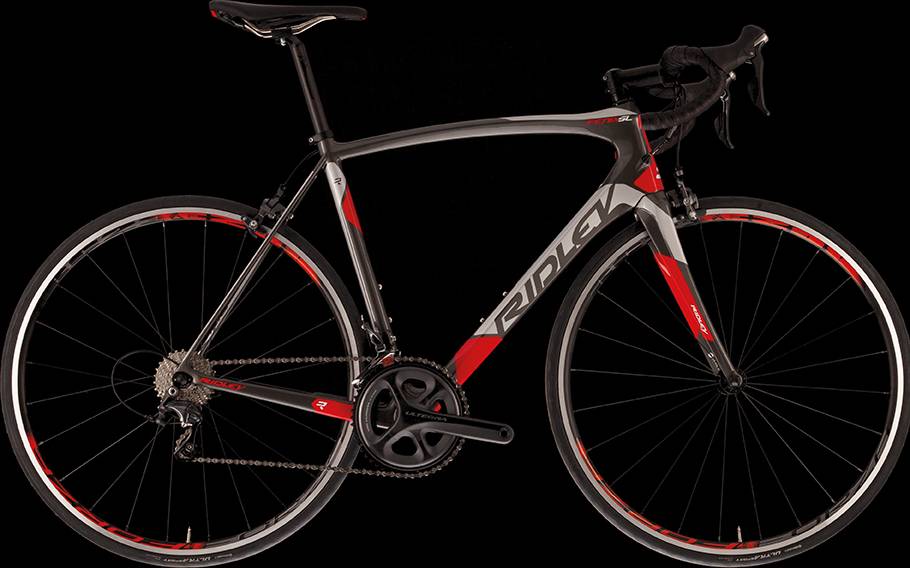

Fenix SL ULTEGRA completes the Ridley Fenix model. 107 bikes variations carry this model name so far. You can easily view all of the Ridley Fenix bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Ridley Fenix SL ULTEGRA 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fenix SL ULTEGRA comes with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
