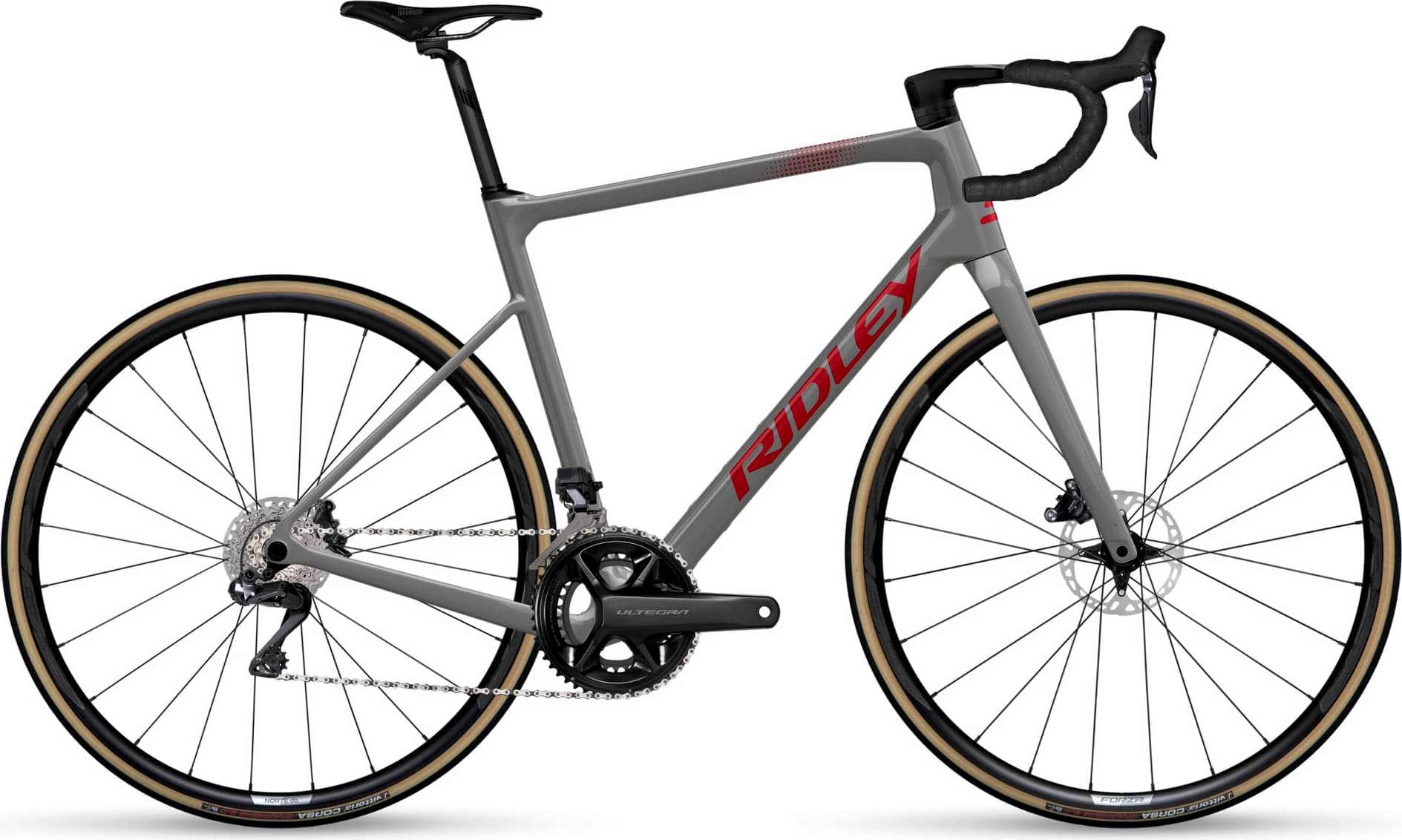

Ridley Grifn – Shimano 105 – 2×12 2024
2024 Road
Estimate price |
3,838$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kanzo AllRoad 7E7
Suspension Fork
4ZA AllRoad 7E7/GRC02As
Drivetrain
Rear Derailleur
Shimano 105 - 2x12
Front Derailleur
Shimano 105 - 2x12
Shift Levers
Shimano 105 - 2x12
Cassette
Shimano 105// 12s // 11-34
Crank
Shimano 105 // 50/34 // 172mm
Pedals
Not included **
Wheels
Rims
Front: 4ZA Norte G DB F 24TL -3BF V2- NO STI, Rear: 4ZA Norte G DB R 24TL -3BF V2 SHI- NO STI
Brakes
Brakes
Flat Mount
Cockpit
Stem
Forza Stratos // 110 mm // Black Glossy
Handlebar
4ZA Cirrus E.2 42/51 / St. BLA/16°
Seat
Saddle
Selle Italia Model X // Black
Seatpost
Forza Cirrus // Carbon-Alloy // 10mm Offset // 350mm // 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.501 mm | 1.524 mm | 1.536 mm |
| Bottom Bracket Height | 274 mm | 276 mm | 276 mm | 278 mm | 278 mm |
| Front Center | 585 mm | 596 mm | 612 mm | 633 mm | 648 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 67 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Stack | 540 mm | 563 mm | 587 mm | 614 mm | 633 mm |
| Reach | 375 mm | 383 mm | 391 mm | 403 mm | 412 mm |
| Top Tube Length | 525 mm | 545 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 195 mm | 215 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 993 mm | 1005 mm | 1021 mm | 1043 mm | 1058 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Grifn – Shimano 105 – 2×12 is a Ridley Grifn model. Ridley launched 15 bikes of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Ridley Grifn – Shimano 105 – 2×12 2024 is the most affordable bike of this model and has a price of 3493$. On the other hand, Ridley Grifn – Sram Rival AXS 2x12sp 2024, is the most expensive and costs 6352$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2024 for 3493$. Doing a quick comparison, we notice that Grifn – Shimano 105 – 2×12 price is 41.88% more expensive than the average cost of a Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Grifn – Shimano 105 – 2×12 2024 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grifn – Shimano 105 – 2×12 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
