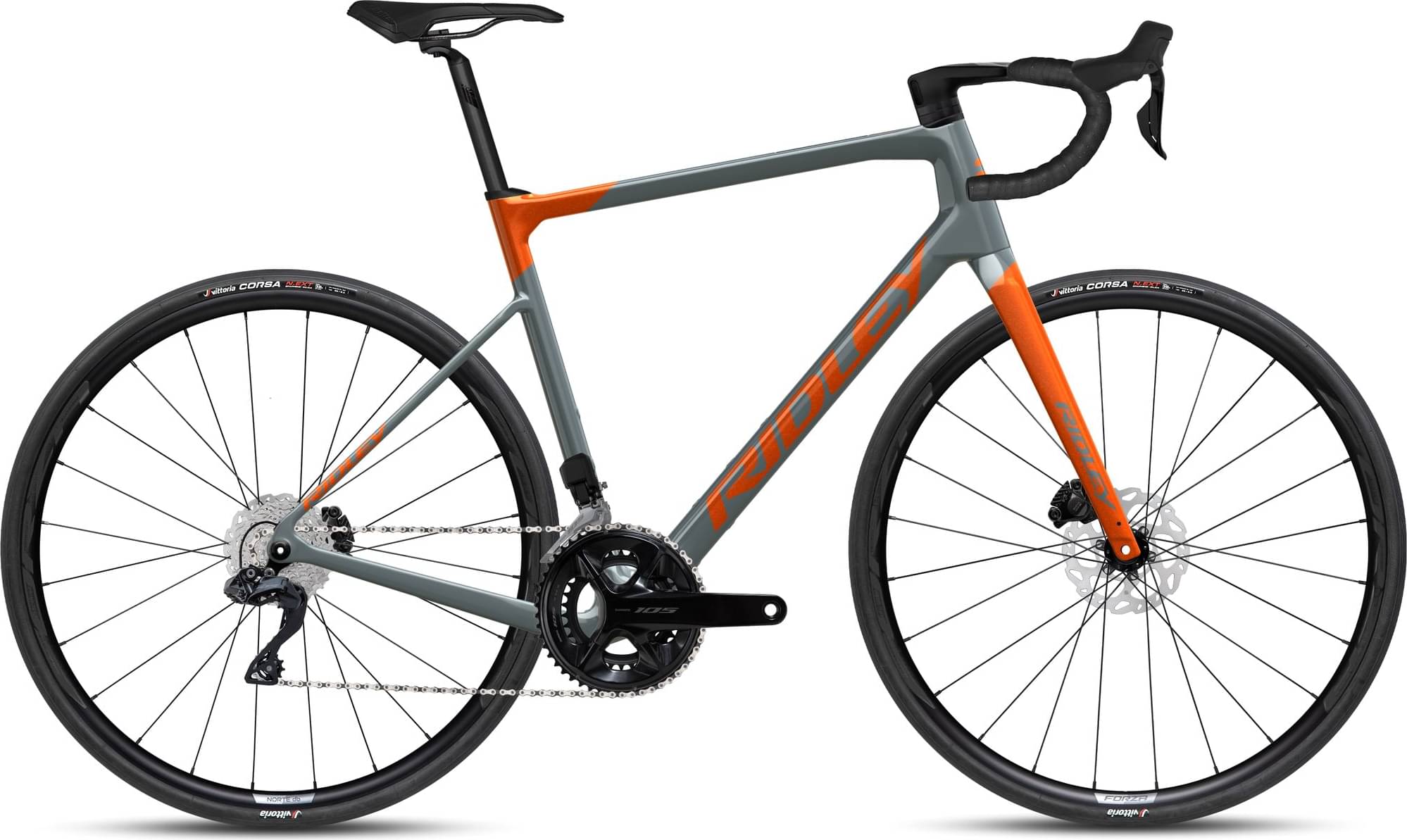

Ridley Grifn – Shimano 105 DI2 // 2x12s 2023
2023 Road
Estimate price |
5,504$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Grifn, F-Steerer headtube, TA12x142mm, integrated dynamo routing
Suspension Fork
4ZA AllRoad // TA12x100 // Integrated dynamo routing // Fender mounts // Full Carbon
Drivetrain
Rear Derailleur
Shimano 105 DI2 // 2x12s
Front Derailleur
Shimano 105 DI2 // 2x12s
Shift Levers
Shimano 105 DI2 // 2x12s
Cassette
Shimano 105// 12s // 11-34
Crank
Shimano 105 // 50/34 // 172mm
Pedals
Not included **
Wheels
Rims
Front: Forza Norte Gravel DB // TA 12x100mm // Tubeless Ready // Forza 3 Beaufort // 24mm Internal Width // 25mm Deep, Rear: Forza Norte Gravel DB // Shimano-Campagnolo-XDR // TA 12x142mm // Tubeless Ready // Forza 3 Beaufort // 24mm Internal Width // 25mm Deep
Brakes
Brakes
Flat Mount
Cockpit
Handlebar
Forza Cirrus Pro Integrated Flared // 110mm - 400mm (cc shifters) - 465mm (cc drops) // 16° flared // Drop 120mm // Reach 70mm
Seat
Saddle
Selle Italia Model Y // Black
Seatpost
Forza Cirrus // Carbon-Alloy // 10mm Offset // 350mm // 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 274 mm | 276 mm | 276 mm | 278 mm | 278 mm |
| Front Center | 585 mm | 596 mm | 612 mm | 633 mm | 648 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 67 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Stack | 542 mm | 565 mm | 589 mm | 616 mm | 635 mm |
| Reach | 377 mm | 385 mm | 393 mm | 405 mm | 414 mm |
| Top Tube Length | 527 mm | 547 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 195 mm | 215 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 995 mm | 1007 mm | 1023 mm | 1045 mm | 1060 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Grifn – Shimano 105 DI2 // 2x12s is part of the Ridley Grifn model. 7 bikes variations carry this model name so far. Take a sneak peek at all Ridley Grifn bikes models from 2023, by clicking here.
Model range prices
Ridley Grifn – Shimano GRX600 2x11sp 2023 is the cheapest bike model and costs 3397$. Ridley Grifn – Classified GRX800 DI2 11sp 2023 is the most expensive one and costs 8264$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5096$. If we compare this with the average Gravel bike cost we notice that the price is 106.99% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Grifn – Shimano 105 DI2 // 2x12s components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Ridley Grifn – Shimano 105 DI2 // 2x12s 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grifn – Shimano 105 DI2 // 2x12s comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
