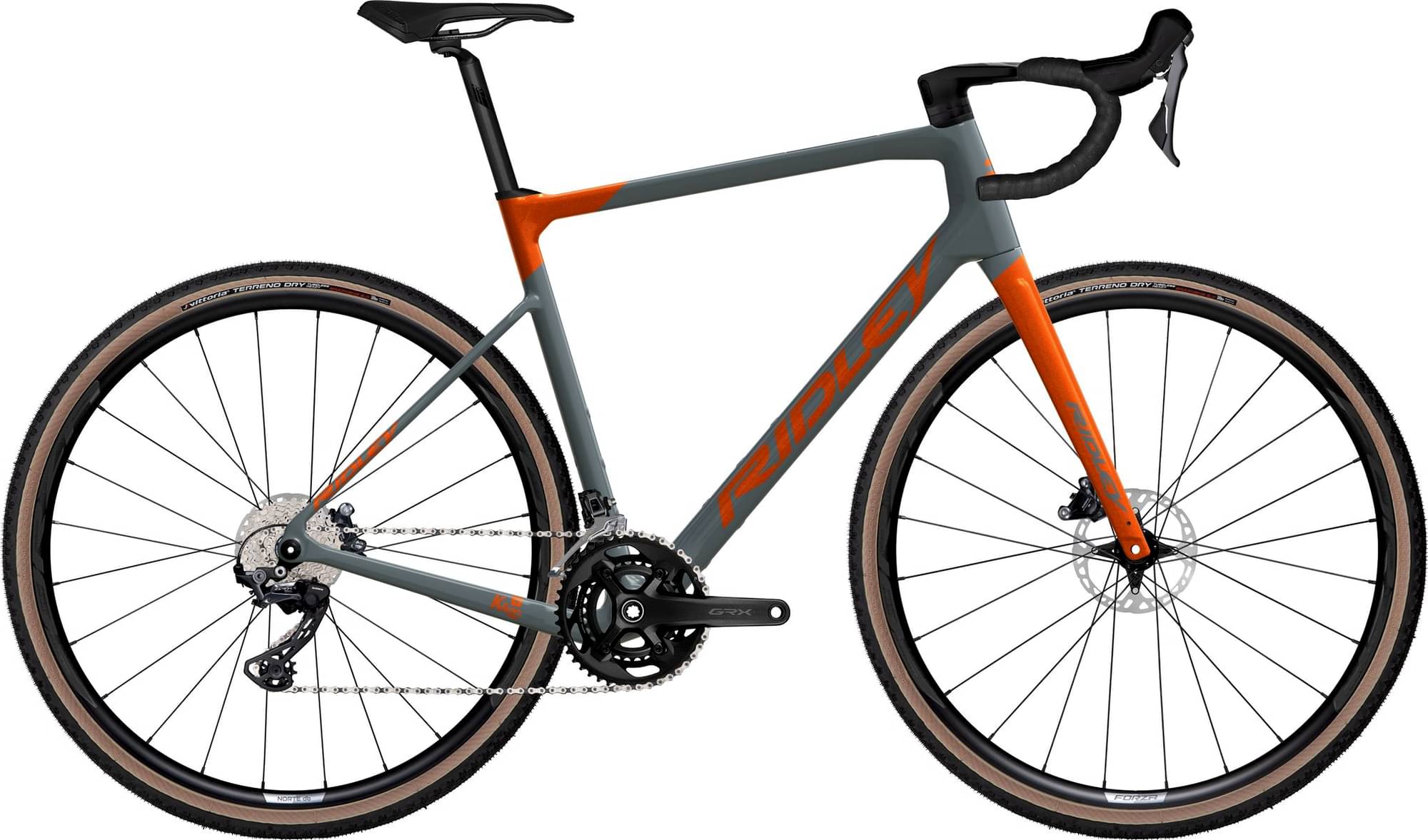

Ridley Grifn – Shimano GRX800 2x12sp 2023
2023 Road
Estimate price |
4,472$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Grifn, F-Steerer headtube, TA12x142mm, integrated dynamo routing
Suspension Fork
4ZA AllRoad // TA12x100 // Integrated dynamo routing // Fender mounts // Full Carbon
Drivetrain
Rear Derailleur
Shimano GRX800 2x12sp
Front Derailleur
Shimano GRX800 2x12sp
Shift Levers
Shimano GRX800 2x12sp
Cassette
Shimano Ultegra // 11-34
Crank
172,5 // 46-30
Pedals
Not included **
Wheels
Rims
Front: Forza Norte Gravel DB // TA 12x100mm // Tubeless Ready // Forza 3 Beaufort // 24mm Internal Width // 25mm Deep, Rear: Forza Norte Gravel DB // Shimano-Campagnolo-XDR // TA 12x142mm // Tubeless Ready // Forza 3 Beaufort // 24mm Internal Width // 25mm Deep
Brakes
Brakes
Flat Mount
Cockpit
Handlebar
Forza Cirrus Pro Integrated Flared // 110mm - 400mm (cc shifters) - 465mm (cc drops) // 16° flared // Drop 120mm // Reach 70mm
Seat
Saddle
Selle Italia Model Y // Black
Seatpost
Forza Cirrus // Carbon-Alloy // 10mm Offset // 350mm // 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 274 mm | 276 mm | 276 mm | 278 mm | 278 mm |
| Front Center | 585 mm | 596 mm | 612 mm | 633 mm | 648 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 67 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Stack | 542 mm | 565 mm | 589 mm | 616 mm | 635 mm |
| Reach | 377 mm | 385 mm | 393 mm | 405 mm | 414 mm |
| Top Tube Length | 527 mm | 547 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 195 mm | 215 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 995 mm | 1007 mm | 1023 mm | 1045 mm | 1060 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Grifn – Shimano GRX800 2x12sp completes the Ridley Grifn model. 15 bikes variations carry this model name so far. You can easily view all of the Ridley Grifn bikes models from 2023, here.
Model range prices
The most economical model, the Ridley Grifn – Shimano GRX600 2x11sp 2023 has a starting price of 3387$. Ridley Grifn – Classified GRX800 DI2 11sp 2023 on the other hand is the most expensive at 8242$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Ridley Grifn – Shimano GRX800 2x12sp price was 4129$. Comparing the average cost of a Gravel bike to this one, you will see that Grifn – Shimano GRX800 2x12sp price is 67.71% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Grifn – Shimano GRX800 2x12sp components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Grifn – Shimano GRX800 2x12sp 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grifn – Shimano GRX800 2x12sp comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
