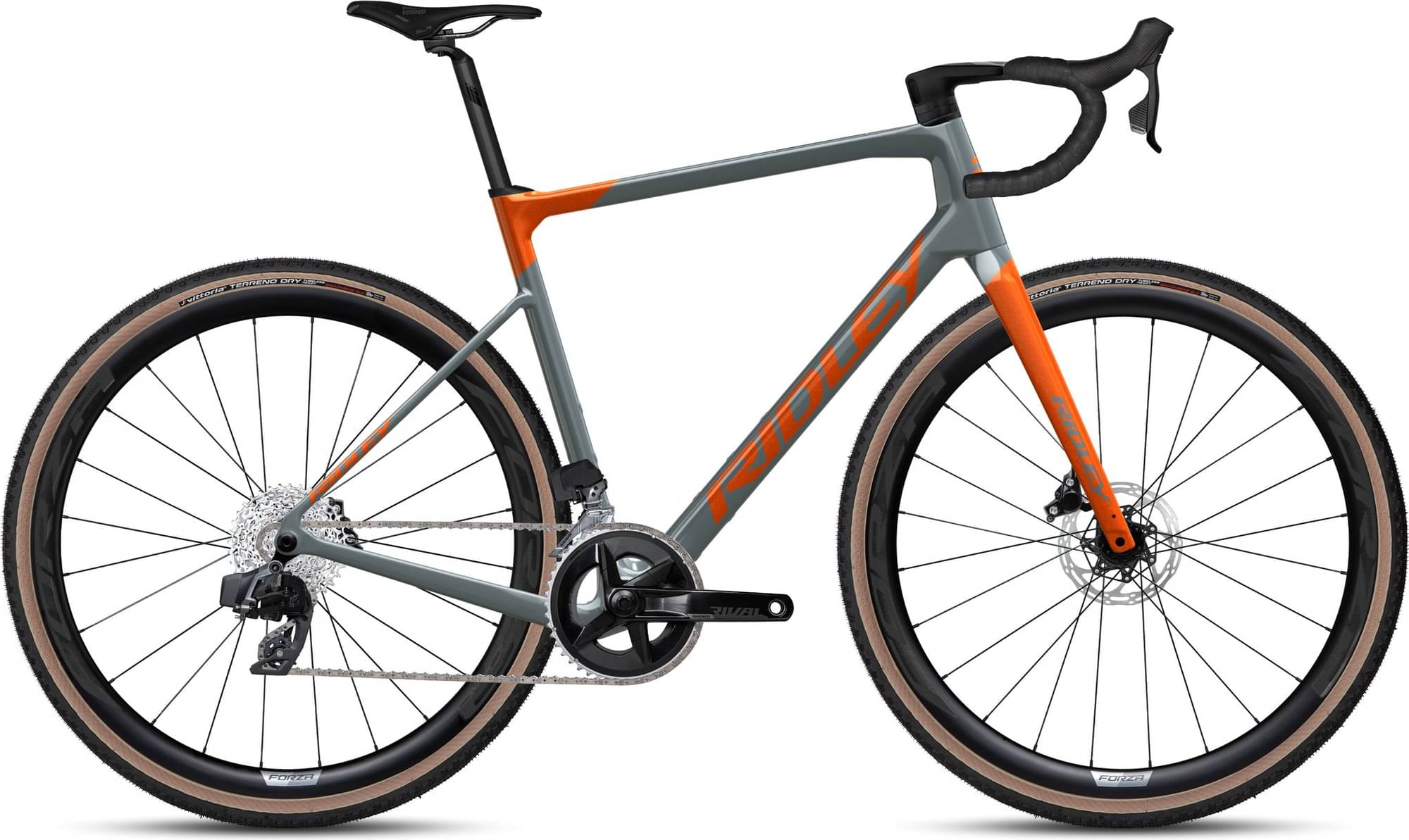

Ridley Grifn – Sram Rival AXS WIDE 2x12sp 2023
2023 Road
Estimate price |
6,250$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Grifn, F-Steerer headtube, TA12x142mm, integrated dynamo routing
Suspension Fork
4ZA AllRoad // TA12x100 // Integrated dynamo routing // Fender mounts // Full Carbon
Drivetrain
Rear Derailleur
SRAM Rival AXS WIDE 2x12sp
Front Derailleur
SRAM Rival AXS WIDE 2x12sp
Shift Levers
SRAM Rival AXS WIDE 2x12sp
Cassette
SRAM XG-1250 // 12s // 10-36
Crank
SRAM FC RIVAL WIDE // 172 // 43/30T
Pedals
Not included **
Wheels
Rims
Front: Forza Levanto Gravel db // TA 12x100mm // Tubeless Ready // Forza 3 Beaufort hub // 23mm Internal Width // 40mm deep, Rear: 4ZA Levanto G R 23TL - 3BFdbV2 XDR - W/ Stickers
Brakes
Brakes
Flat Mount
Cockpit
Handlebar
Forza Cirrus Pro Integrated Flared // 110mm - 400mm (cc shifters) - 465mm (cc drops) // 16° flared // Drop 120mm // Reach 70mm
Seat
Saddle
Selle Italia SLR Boost // Manganese Rails // Black
Seatpost
Forza Cirrus // Carbon-Alloy // 10mm Offset // 350mm // 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 274 mm | 276 mm | 276 mm | 278 mm | 278 mm |
| Front Center | 585 mm | 596 mm | 612 mm | 633 mm | 648 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 67 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Stack | 542 mm | 565 mm | 589 mm | 616 mm | 635 mm |
| Reach | 377 mm | 385 mm | 393 mm | 405 mm | 414 mm |
| Top Tube Length | 527 mm | 547 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 195 mm | 215 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 995 mm | 1007 mm | 1023 mm | 1045 mm | 1060 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Grifn – Sram Rival AXS WIDE 2x12sp is part of the Ridley Grifn model. 7 bikes variations carry this model name so far. You can easily view all of the Ridley Grifn bikes models from 2023, here.
Model range prices
Ridley Grifn – Shimano GRX600 2x11sp 2023 is the cheapest bike model and costs 3397$. Ridley Grifn – Classified GRX800 DI2 11sp 2023 is the most expensive one and costs 8264$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Ridley Grifn – Sram Rival AXS WIDE 2x12sp price was 5786$. Comparing the average cost of a Gravel bike to this one, you will see that Grifn – Sram Rival AXS WIDE 2x12sp price is 135.01% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Grifn – Sram Rival AXS WIDE 2x12sp components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Grifn – Sram Rival AXS WIDE 2x12sp bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Grifn – Sram Rival AXS WIDE 2x12sp is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Grifn – Sram Rival AXS WIDE 2x12sp comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
