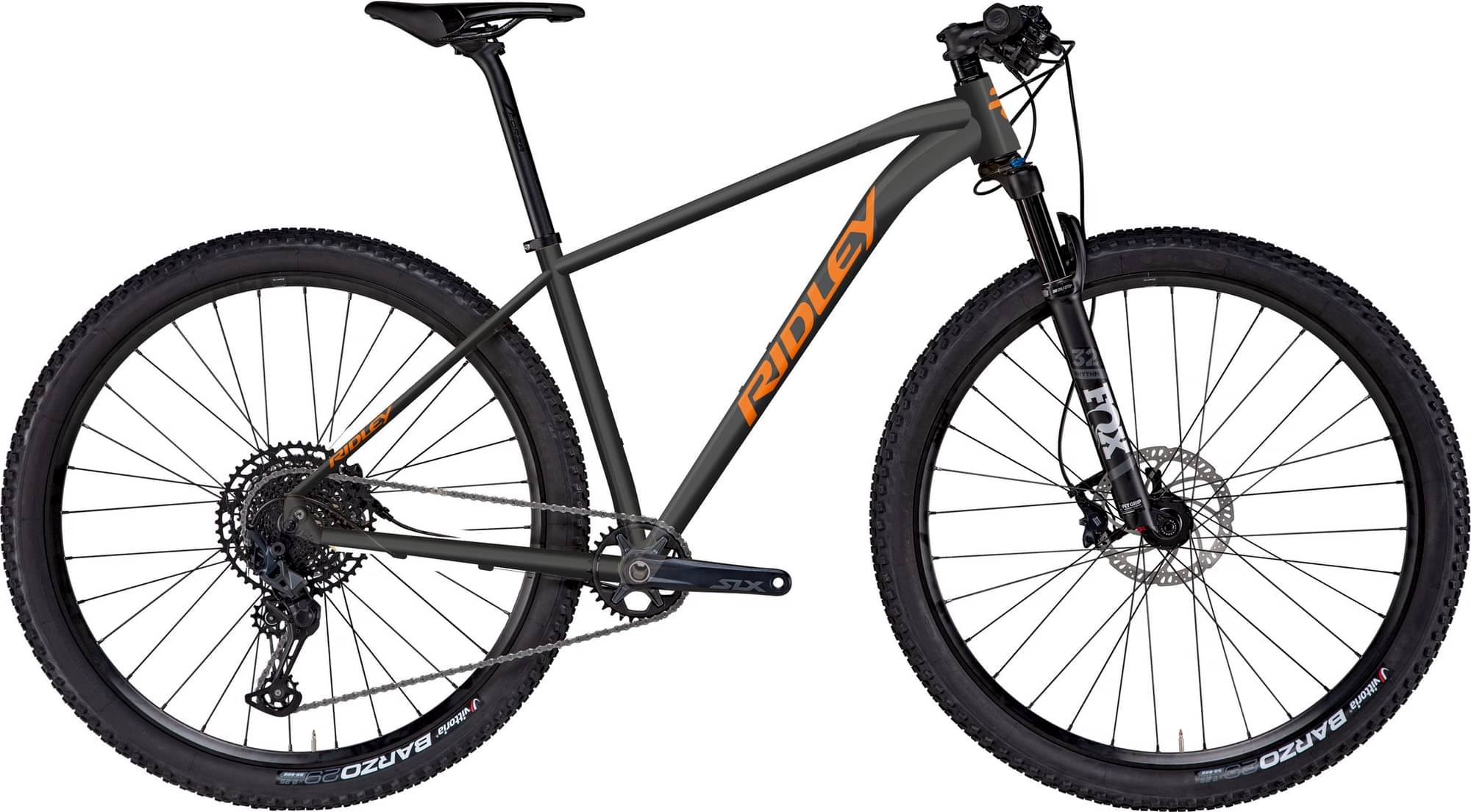

Ridley Ignite A – SRAM NX 1x12sp 2023
2023 Mountain
Estimate price |
1,834$
Weight | 10.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset NX, NX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ignite A9 7E6
Suspension Fork
Rockshox Judy Silver TK R 29er 100mm TA15/110 // Matte Black
Drivetrain
Rear Derailleur
SRAM NX 1x12sp
Front Derailleur
SRAM NX 1x12sp
Shift Levers
SRAM NX 1x12sp
Cassette
SRAM PG-1230 Eagle // 12s // 11-50T
Crank
SRAM NX Eagle 175mm // 32T
Pedals
Not included **
Wheels
Rims
Front: Forza XCD-SL, 29er // TA 15x110mm // Clincher-TLR // 23mm Internal Width, Rear: Forza XCD SL // TA12-148 // 29Inch
Brakes
Brakes
Front: SRAM Level T DB, Rear: SRAM Level T DB
Cockpit
Stem
Forza Stratos // 80 mm // Black Glossy
Handlebar
Forza Stratos Flat Bar // 720mm // Black Glossy
Seat
Saddle
Selle Italia Model X // Black
Seatpost
Forza Stratos // Zero Offset // 400mm // 31,6mm // Black Glossy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.42 mm | 1.4 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 657 mm | 677 mm | 702 mm | 728 mm |
| Rake | 49 mm | 51 mm | 51 mm | 50 mm |
| Trail | 84 mm | 82 mm | 82 mm | 83 mm |
| Stack | 611 mm | 611 mm | 620 mm | 639 mm |
| Reach | 397 mm | 415 mm | 437 mm | 457 mm |
| Top Tube Length | 577 mm | 597 mm | 622 mm | 647 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1083 mm | 1103 mm | 1128 mm | 1154 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ignite A – SRAM NX 1x12sp is a Ridley Ignite model. 89 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ridley Ignite A – Sram SX 1x12sp 2023 is the cheapest bike model and costs 1432$. Ridley Ignite SLX – Sram X01 mix 1x12sp 2023 is the most expensive one and costs 3821$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1698$. In conclusion, this bike price is 12.19% smaller than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 10.16 kg (22.4 lbs), the Ignite A – SRAM NX 1x12sp model is much lighter than average. In conclusion, the average Crosscountry bike weighs 22.05% more than Ignite A – SRAM NX 1x12sp.
Ignite A – SRAM NX 1x12sp components
Fork
This bike has the RockShox Judy Silver TK fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Ignite A – SRAM NX 1x12sp are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Ignite A – SRAM NX 1x12sp has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
