Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Fork Fox -
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ignite CSL9, 30t-24t HM/HR Unidirectional carbon, 142x12 Thru Axle
Suspension Fork
Fox F32 FIT4
Drivetrain
Rear Derailleur
Shimano XT 11s, Shadow Plus
Front Derailleur
Shimano XT 2s
Shift Levers
Shimano XT RapidFire Plus, I-Spec II
Cassette
Shimano CS-M8000, 11-40
Crank
Shimano XT, 36/26
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Rims
Fulcrum RedPower HP, AFS
Tires
Continental X-King 29x2.2, Folding
Brakes
Brakes
Shimano XT, F180/R160
Brake Levers
Shimano XT RapidFire Plus, I-Spec II
Cockpit
Stem
4ZA Cirrus
Handlebar
4ZA Cirrus
Seat
Saddle
4ZA Cirrus Pro Cr/Ti rail
Seatpost
4ZA Cirrus Carbon, 31,6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

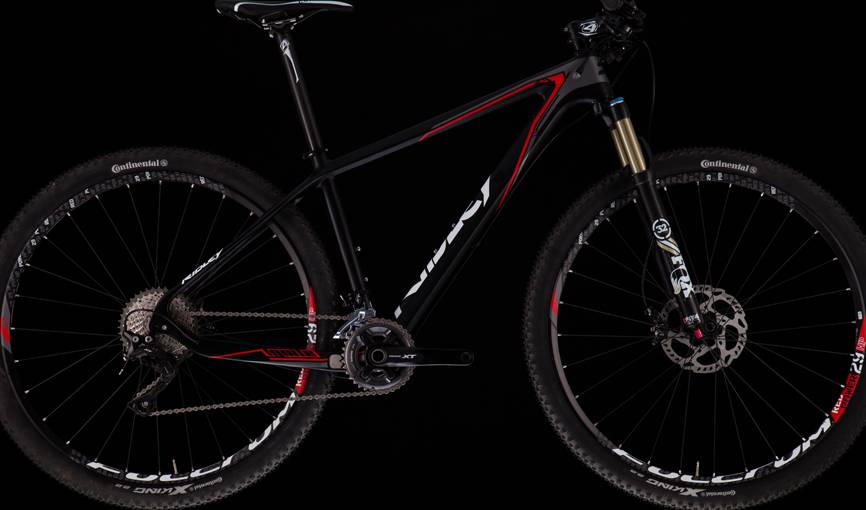

Ignite CSL 29″ XT is part of the Ridley Ignite model. Ridley released 89 bikes variations of this model so far. You can easily view all of the Ridley Ignite bikes models from 2017, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the Fox model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Ignite CSL 29″ XT are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Ignite CSL 29″ XT has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
