Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ignite CSL9, 30t-24t HM/HR Unidirectional carbon, 142x12 Thru Axle
Suspension Fork
RockShox SID XX, 100mm, 15mm TA, Xloc remote
Drivetrain
Rear Derailleur
Shimano XTR 11s, Shadow Plus
Shift Levers
Shimano XTR RapidFire Plus, I-Spec II
Cassette
Shimano CS-M8000, 11-40
Crank
Shimano XTR, 32t
Chain
KMC X11
Wheels
Rims
DT Swiss XR1501 Spline One
Tires
Continental RaceKing RS 29x2.2, Folding
Brakes
Brakes
Shimano XTR, F180/R160
Brake Levers
Shimano XTR RapidFire Plus, I-Spec II
Cockpit
Stem
4ZA Cirrus
Handlebar
4ZA Cirrus
Seat
Saddle
4ZA Cirrus Pro Cr/Ti rail
Seatpost
4ZA Cirrus Carbon, 31,6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

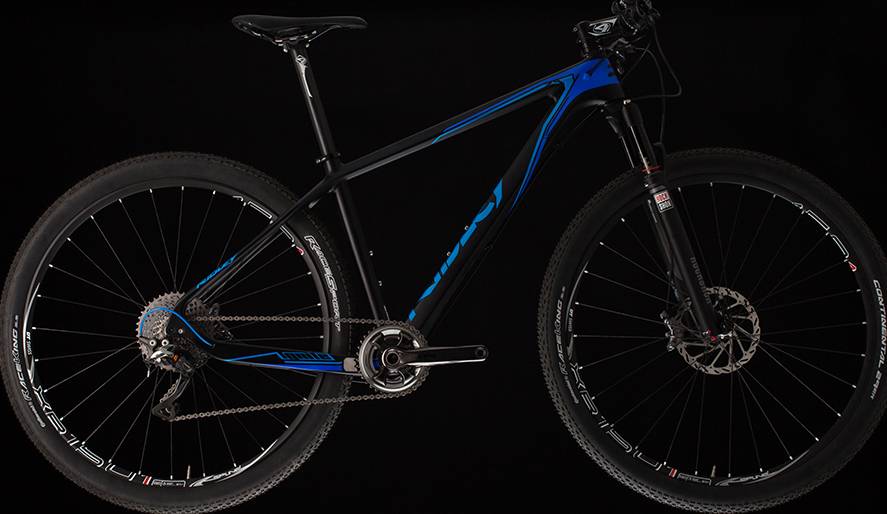

Model Overview
Ignite CSL 29″ XTR is part of the Ridley Ignite model. Ridley released 89 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The RockShox SID is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Ignite CSL 29″ XTR are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Ignite CSL 29″ XTR comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
