Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox
-
Groupset XX1 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ignite CSL9, 30t-24t HM/HR Unidirectional carbon, 142x12 Thru Axle
Suspension Fork
RockShox RS1, 100mm, 15mm TA, Predictive steering
Drivetrain
Rear Derailleur
SRAM XX1
Shift Levers
SRAM XX1 Trigger
Cassette
SRAM XG1199, 10-42
Crank
SRAM XX1, PF30, 32t
Bottom Bracket
PF30, press-fit
Chain
SRAM XX1
Wheels
Rims
SRAM Roam50
Tires
Continental RaceKing RS 29x2.2, Folding
Brakes
Brakes
SRAM Guide Ultimate Carbon, F180/R160
Brake Levers
SRAM XX1 Trigger
Cockpit
Stem
4ZA Cirrus Pro
Handlebar
4ZA Cirrus Pro Carbon
Seat
Saddle
4ZA Cirrus Pro Cr/Ti rail
Seatpost
4ZA Cirrus Pro Carbon, 31,6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

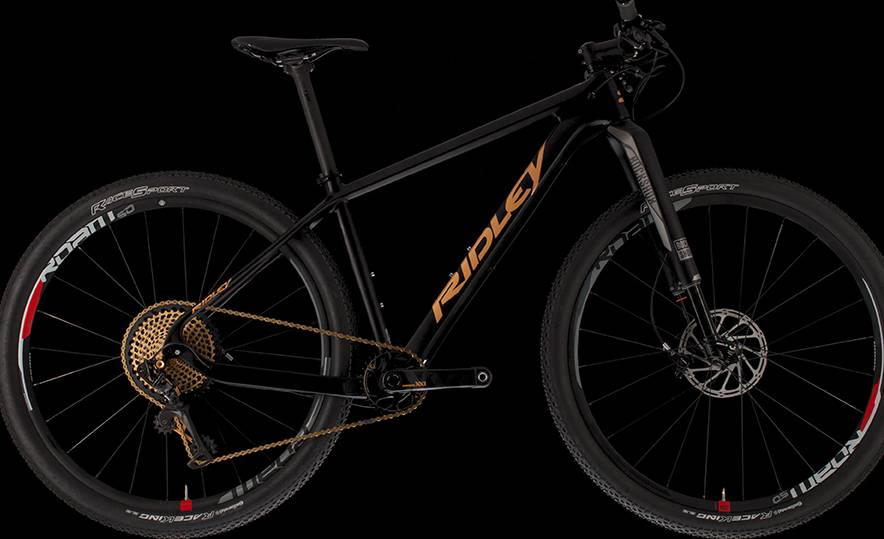

Ignite CSL 29″ XX1 EAGLE is a Ridley Ignite model. There are 89 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Ignite CSL 29″ XX1 EAGLE comes factory-installed with the RockShox fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The Ignite CSL 29″ XX1 EAGLE 2017 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Ignite CSL 29″ XX1 EAGLE has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Ridley Ignite CSL 29″ XX1 EAGLE bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
