Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Jane SL Disc, 60T-40T-30T HM UD Carbon, In-Mould F-Surface Technology, TA 12x142mm
Suspension Fork
Jane SL Disc, 40T-30T-24T HM UD Carbon, F-Split Technology, TA 12x100mm
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Di2
Cassette
Shimano 105 11-28
Crank
Rotor Flow 50/34
Chain
KMC x11
Wheels
Rims
Forza R45-19C
Tires
Vittoria Rubino Pro
Brakes
Brakes
Shimano Ultegra
Cockpit
Stem
Forza Cirrus Pro Integrated Cockpit
Handlebar
Forza Cirrus Pro Integrated Cockpit
Seat
Saddle
Forza Cirrus Pro Lady
Seatpost
Jane SL Aero Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.42 mm | 1.42 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm |
| Rake | 47 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 60 mm | 62 mm | 55 mm | 53 mm | 53 mm |
| Stack | 499 mm | 519 mm | 534 mm | 565 mm | 591 mm |
| Reach | 371 mm | 366 mm | 376 mm | 382 mm | 388 mm |
| Top Tube Length | 508 mm | 517 mm | 537 mm | 557 mm | 577 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 475 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 400 mm |
| Wheelbase | 962 mm | 962 mm | 969 mm | 979 mm | 997 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm |
| Standover Height | 740 mm | 756 mm | 772 mm | 801 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

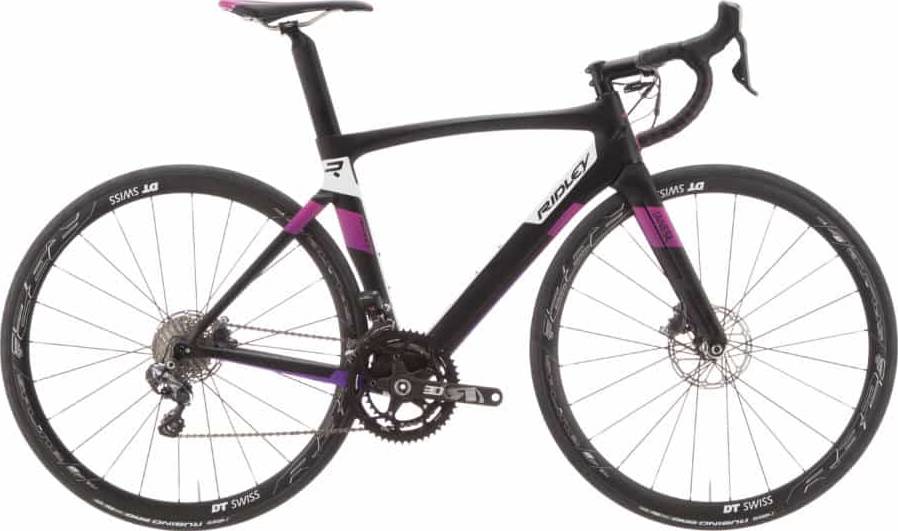

Model Overview
Jane SL Disc Ultegra Di2 is a Ridley Jane model. Ridley released 16 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
Jane SL Disc Ultegra Di2 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Jane SL Disc Ultegra Di2 2018 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Jane SL Disc Ultegra Di2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
