Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Potenza -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Jane SL, 60T-40T-30T HM Unidirectional carbon, in-mould F-Surface technology
Suspension Fork
Jane SL, 40T-30T-24T HM Unidirectional carbon, F-Split Technology
Drivetrain
Rear Derailleur
Campagnolo Potenza
Front Derailleur
Campagnolo Potenza
Shift Levers
Campagnolo Potenza
Cassette
Campagnolo Potenza 12-27
Crank
Campagnolo Potenza 52/36
Chain
KMC X11
Wheels
Rims
Campagnolo Scirocco
Tires
Continental Ultrasport Folding 25mm
Brakes
Brakes
Campagnolo Potenza
Brake Levers
Campagnolo Potenza
Cockpit
Stem
Deda Zero 1
Handlebar
Deda Zero 1
Seat
Saddle
4ZA Cirrus Pro Lady, Cr/Ti rails
Seatpost
Jane SL Aero Carbon Zero Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.41 mm | 1.42 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm |
| Rake | 47 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 60 mm | 62 mm | 55 mm | 53 mm | 53 mm |
| Stack | 503 mm | 523 mm | 538 mm | 569 mm | 595 mm |
| Reach | 375 mm | 370 mm | 380 mm | 386 mm | 392 mm |
| Top Tube Length | 502 mm | 509 mm | 527 mm | 545 mm | 563 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 445 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 404 mm |
| Wheelbase | 966 mm | 966 mm | 973 mm | 983 mm | 1001 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm |
| Standover Height | 744 mm | 760 mm | 776 mm | 805 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

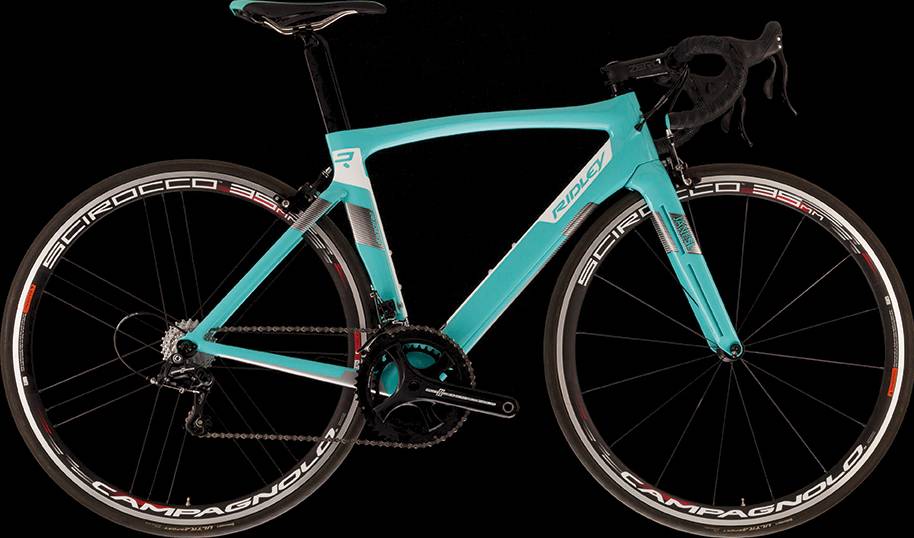

Jane SL POTENZA is a Ridley Jane model. There are 16 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Jane SL POTENZA components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Jane SL POTENZA 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Jane SL POTENZA has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
