Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Jane, 30T-24T HM UD Carbon, In-Mould F-Surface Technology
Suspension Fork
Jane Aero 30T-24T Full Carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano 105 11-28
Crank
Rotor 3D30 Aero 50/34
Chain
KMC x11
Wheels
Rims
Forza AC45 alloy-carbon
Tires
Vittoria Zaffiro Pro (Folding)
Brakes
Brakes
Shimano Ultegra
Cockpit
Stem
Forza Cirrus
Handlebar
Forza Cirrus
Seat
Saddle
Forza Cirrus Pro Lady
Seatpost
Jane SL Aero Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.42 mm | 1.42 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm |
| Rake | 47 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 60 mm | 62 mm | 55 mm | 53 mm | 53 mm |
| Stack | 499 mm | 519 mm | 534 mm | 565 mm | 591 mm |
| Reach | 371 mm | 366 mm | 376 mm | 382 mm | 388 mm |
| Top Tube Length | 508 mm | 517 mm | 537 mm | 557 mm | 577 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 475 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 400 mm |
| Wheelbase | 962 mm | 962 mm | 969 mm | 979 mm | 997 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm |
| Standover Height | 740 mm | 756 mm | 772 mm | 801 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

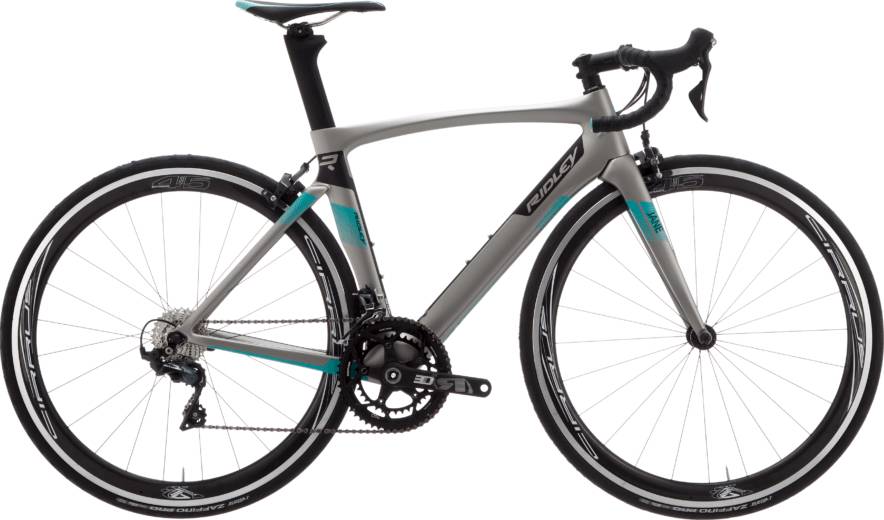

Jane Ultegra is a Ridley Jane model. 16 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Jane Ultegra components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Jane Ultegra model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Jane Ultegra is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
