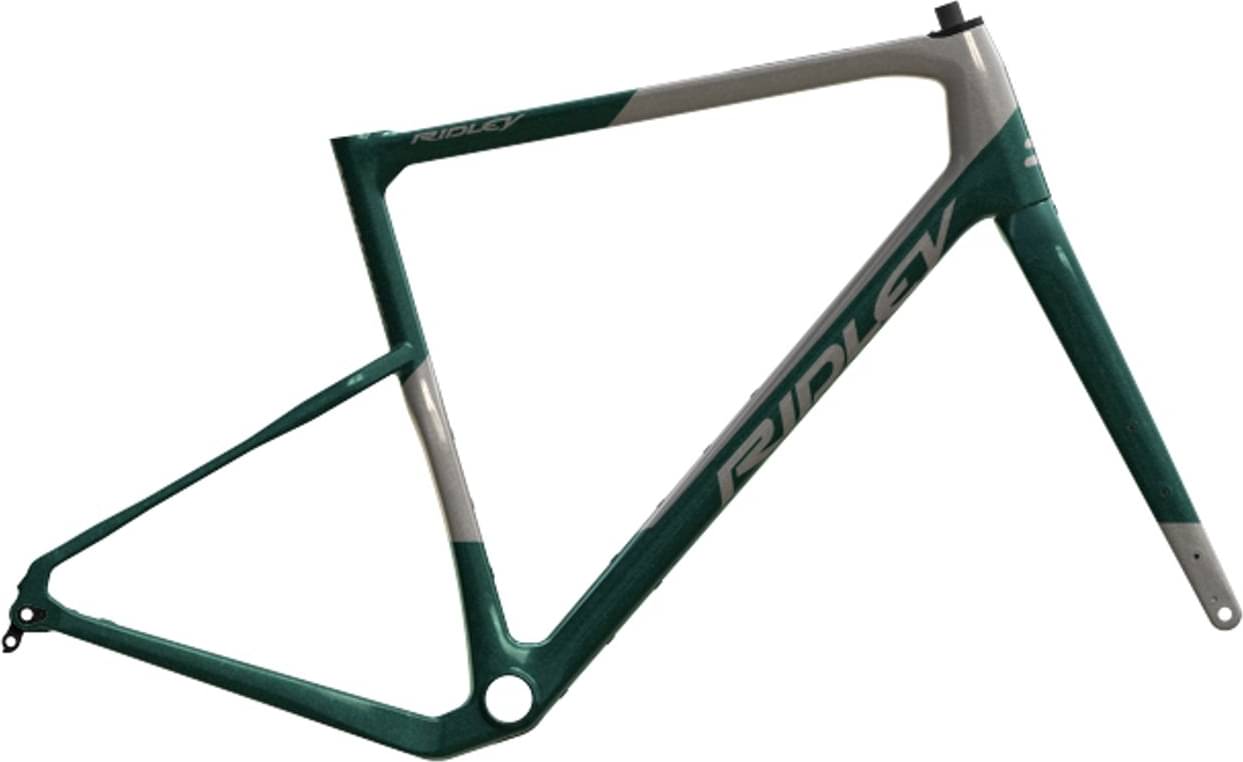

Ridley Kanzo Adventure – Frameset 2022
2022 Road
Estimate price |
2,465$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kanzo Adventure, 24-30T HM UD Carbon, integrated packing mounts and dynamo routing, 2.1” tire clearance, TA12-142mm
Suspension Fork
Forza Gravel Disc,12mm TA, FM, Dynamo routing, 54mm tire clearance
Drivetrain
Rear Derailleur
Frameset
Front Derailleur
Frameset
Shift Levers
Frameset
Pedals
Not included **
Brakes
Brakes
Flat Mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Front Center | 600 mm | 617 mm | 641 mm | 664 mm | 683 mm |
| Rake | 50 mm | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 68 mm | 71 mm | 71 mm | 71 mm |
| Stack | 548 mm | 571 mm | 593 mm | 619 mm | 641 mm |
| Reach | 381 mm | 389 mm | 403 mm | 417 mm | 428 mm |
| Top Tube Length | 532 mm | 552 mm | 572 mm | 594 mm | 617 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 495 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 70.8 ° | 70.8 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 192 mm | 215 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1026 mm | 1043 mm | 1067 mm | 1090 mm | 1109 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 793 mm | 816 mm | 838 mm | 864 mm | 886 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Kanzo Adventure – Frameset is a Ridley Kanzo model. Ridley launched 88 frames of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Ridley Kanzo Adventure 1.0 – Frameset 2022 is the most economical model, with a starting price of 2069$. Ridley Kanzo Adventure – Frameset 2022 on the other hand costs 2282$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel frames
According to our math, the average price for a trustworthy Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2022 and its price was 2282$. Comparing the average cost of a Gravel frame to this one, you will see that Kanzo Adventure – Frameset price is 51.63% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Kanzo Adventure – Frameset comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Kanzo Adventure – Frameset comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
