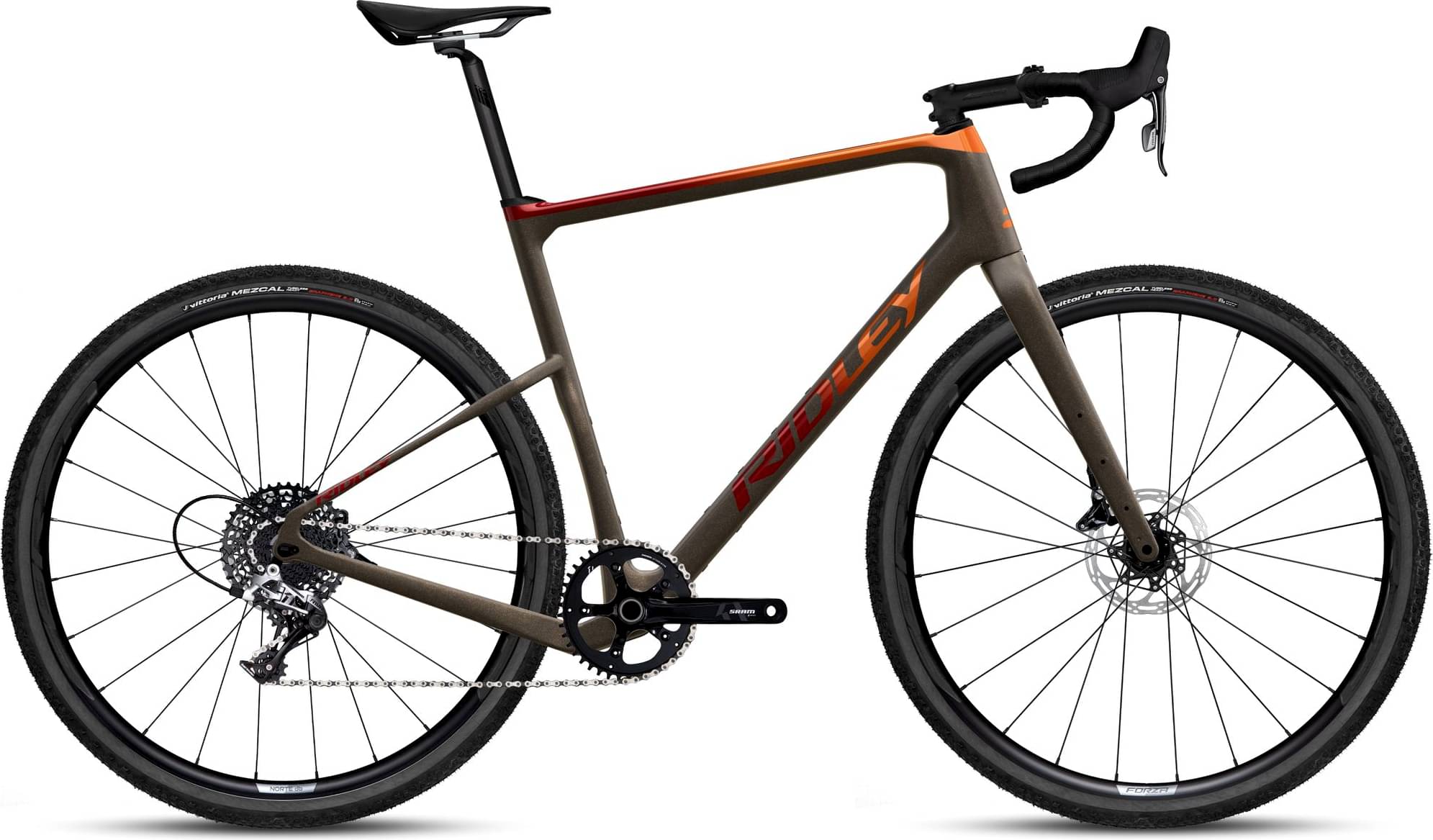

Ridley Kanzo Adventure – Sram Apex XPLR 1x12sp 2024
2024 Road
Estimate price |
3,784$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex XPLR -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kanzo Adventure, 24-30T HM UD Carbon, integrated packing mounts and dynamo routing, 2.1” tire clearance, TA12-142mm
Suspension Fork
Forza Gravel Disc,12mm TA, FM, Dynamo routing, 54mm tire clearance
Drivetrain
Rear Derailleur
SRAM Apex XPLR 1x12sp
Front Derailleur
SRAM Apex XPLR 1x12sp
Shift Levers
SRAM Apex XPLR 1x12sp
Cassette
SRAM XPLR PG-1231 12s 11-44T
Crank
SRAM Apex 1x12 // 42T // 172mm
Pedals
Not included **
Wheels
Rims
Front: 4ZA Norte G DB F 24TL -3BF V2- NO STI, Rear: 4ZA Norte G DB R 24TL -3BF V2 SHI- NO STI
Brakes
Brakes
Flat Mount
Cockpit
Stem
Forza Stratos // 90 mm // Black Glossy
Handlebar
Ritchey Butano II Comp // 440 mm
Seat
Saddle
Selle Italia Model X // Black
Seatpost
4ZA Cirrus // 27.2 // 350mm // Zero offset // Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.47 mm | 1.474 mm | 1.487 mm | 1.5 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 600 mm | 617 mm | 641 mm | 664 mm | 683 mm |
| Rake | 50 mm | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 68 mm | 71 mm | 71 mm | 71 mm |
| Stack | 546 mm | 569 mm | 591 mm | 617 mm | 639 mm |
| Reach | 379 mm | 387 mm | 401 mm | 415 mm | 426 mm |
| Top Tube Length | 530 mm | 550 mm | 570 mm | 592 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 495 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 70.8 ° | 70.8 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 192 mm | 215 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1024 mm | 1041 mm | 1065 mm | 1088 mm | 1107 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 791 mm | 814 mm | 836 mm | 862 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Kanzo Adventure – Sram Apex XPLR 1x12sp completes the Ridley Kanzo model. 103 bikes variations carry this model name so far. Take a sneak peek at all Ridley Kanzo bikes models from 2024, by clicking here.
Model range prices
Ridley Kanzo A – Sram Apex 1×11 HDB 2024 is the most affordable bike of this model and has a price of 1904$. On the other hand, Ridley Kanzo Fast – Sram Force XPLR 2024, is the most expensive and costs 8470$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Ridley released this model in 2024, its price was 3493$. In conclusion, this bike price is 41.88% more expensive than the price of the average Gravel bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Ridley Kanzo Adventure – Sram Apex XPLR 1x12sp 2024, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Kanzo Adventure – Sram Apex XPLR 1x12sp is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
