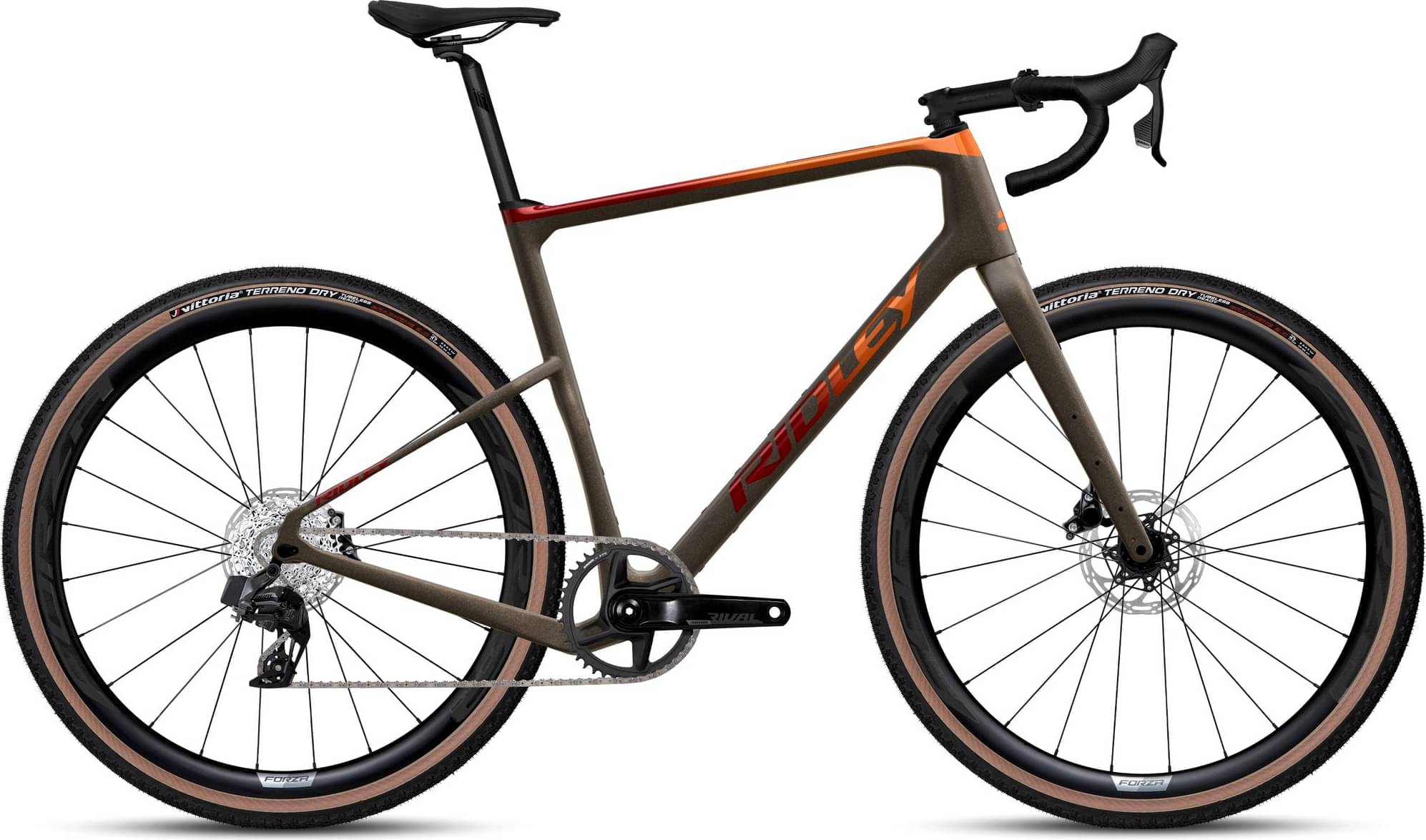

Ridley Kanzo Adventure – Sram Rival AXS XPLR 1x12sp 2024
2024 Road
Estimate price |
5,734$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kanzo Adventure, 24-30T HM UD Carbon, integrated packing mounts and dynamo routing, 2.1” tire clearance, TA12-142mm
Suspension Fork
Forza Gravel Disc,12mm TA, FM, Dynamo routing, 54mm tire clearance
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR 1x12sp
Front Derailleur
SRAM Rival AXS XPLR 1x12sp
Shift Levers
SRAM Rival AXS XPLR 1x12sp
Cassette
SRAM XPLR XG-1251 // 12s // 10-44
Crank
SRAM RIVAL1 // 172 // 42
Pedals
Not included **
Wheels
Rims
Front: 4ZA Levanto G DB F 23TL -3BF V2- NO STI, Rear: 4ZA Levanto G DB R 23TL -3BF V2 XDR- NO STI
Brakes
Brakes
Flat Mount
Cockpit
Stem
Forza Stratos // 90 mm // Black Glossy
Handlebar
Ritchey Butano II Comp // 440 mm
Seat
Saddle
Selle Italia Model Y // Black
Seatpost
4ZA Cirrus // 27.2 // 350mm // Zero offset // Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.47 mm | 1.474 mm | 1.487 mm | 1.5 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 600 mm | 617 mm | 641 mm | 664 mm | 683 mm |
| Rake | 50 mm | 51 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 68 mm | 71 mm | 71 mm | 71 mm |
| Stack | 546 mm | 569 mm | 591 mm | 617 mm | 639 mm |
| Reach | 379 mm | 387 mm | 401 mm | 415 mm | 426 mm |
| Top Tube Length | 530 mm | 550 mm | 570 mm | 592 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 495 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 70.8 ° | 70.8 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 192 mm | 215 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1024 mm | 1041 mm | 1065 mm | 1088 mm | 1107 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 791 mm | 814 mm | 836 mm | 862 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Kanzo Adventure – Sram Rival AXS XPLR 1x12sp is a Ridley Kanzo model. Ridley launched 103 bikes of this model so far. You can easily view all of the Ridley Kanzo bikes models from 2024, here.
Model range prices
The most economical model, the Ridley Kanzo A – Sram Apex 1×11 HDB 2024 has a starting price of 1904$. Ridley Kanzo Fast – Sram Force XPLR 2024 on the other hand is the most expensive at 8470$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2024 for 5294$. In conclusion, this bike price is 115.03% more expensive than the price of the average Gravel bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Kanzo Adventure – Sram Rival AXS XPLR 1x12sp components
Fork material
Kanzo Adventure – Sram Rival AXS XPLR 1x12sp has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Kanzo Adventure – Sram Rival AXS XPLR 1x12sp are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Kanzo Adventure – Sram Rival AXS XPLR 1x12sp comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
