Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Liz A, Triple butted 7005-T6 Aluminium
Suspension Fork
Liz A, 24T HM UD Carbon, Tapered Alu Steerer
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
11spd Shimano 105, 11-32
Crank
Shimano RS500 50/34
Chain
KMC X11
Wheels
Rims
4ZA RC31
Tires
Continental Ultrasport Wire 25mm
Brakes
Brakes
4ZA Cirrus
Brake Levers
Shimano 105
Cockpit
Stem
4ZA Stratos
Handlebar
4ZA Stratos
Seat
Saddle
4ZA Lady
Seatpost
4ZA Stratos
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.34 mm | 1.34 mm | 1.38 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 579 mm | 582 mm | 586 mm | 579 mm |
| Rake | 59 mm | 51 mm | 55 mm | 45 mm |
| Trail | 57 mm | 69 mm | 59 mm | 63 mm |
| Stack | 478 mm | 485 mm | 493 mm | 515 mm |
| Reach | 358 mm | 363 mm | 368 mm | 373 mm |
| Top Tube Length | 483 mm | 488 mm | 498 mm | 513 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 135 mm | 140 mm | 155 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 968 mm | 971 mm | 975 mm | 968 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 705 mm | 718 mm | 733 mm | 755 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |
Model Overview

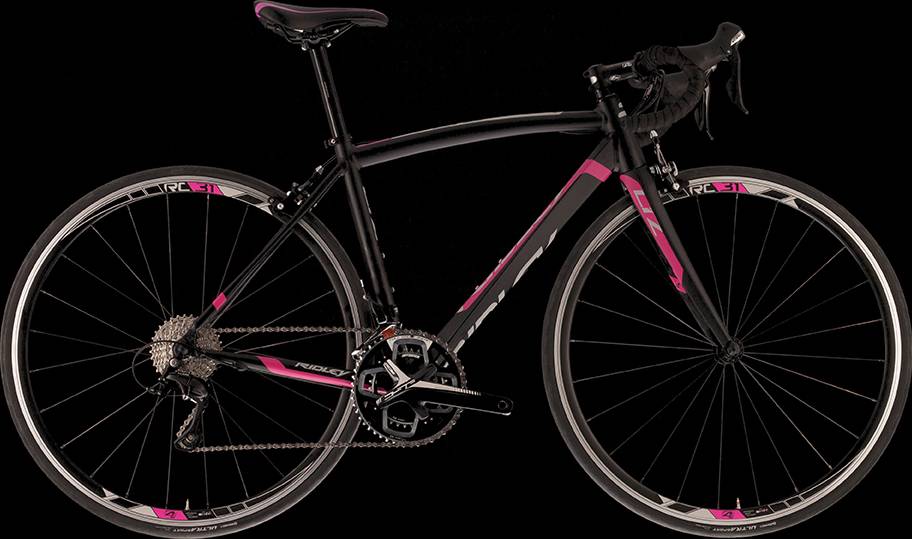

Liz Alloy 105 MIX is part of the Ridley Liz model. 50 bikes variations carry this model name so far. Take a sneak peek at all Ridley Liz bikes models from 2017, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Liz Alloy 105 MIX model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Liz Alloy 105 MIX has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Liz Alloy 105 MIX comes in 4 sizes, that range from 145 cm – 183 cm (4.76 ft – 6 ft). In conclusion, finding one for you shouldn’t be a problem.
