Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Liz A, Triple butted 7005-T6 Aluminium
Suspension Fork
Liz A, 24T HM UD Carbon, Tapered Alu Steerer
Drivetrain
Rear Derailleur
Shimano Tiagra 10SP
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra
Cassette
Shimano Tiagra, 11-32
Crank
Shimano Tiagra 50/34
Chain
KMC X10
Wheels
Rims
4ZA RC30
Tires
Continental Ultrasport Wire 25mm
Brakes
Brakes
Shimano Tiagra
Brake Levers
Shimano Tiagra
Cockpit
Stem
4ZA Stratos
Handlebar
4ZA Stratos
Seat
Saddle
4ZA Lady
Seatpost
4ZA Stratos
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.34 mm | 1.34 mm | 1.38 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 579 mm | 582 mm | 586 mm | 579 mm |
| Rake | 59 mm | 51 mm | 55 mm | 45 mm |
| Trail | 57 mm | 69 mm | 59 mm | 63 mm |
| Stack | 478 mm | 485 mm | 493 mm | 515 mm |
| Reach | 358 mm | 363 mm | 368 mm | 373 mm |
| Top Tube Length | 483 mm | 488 mm | 498 mm | 513 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 135 mm | 140 mm | 155 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 968 mm | 971 mm | 975 mm | 968 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 705 mm | 718 mm | 733 mm | 755 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |
About this model

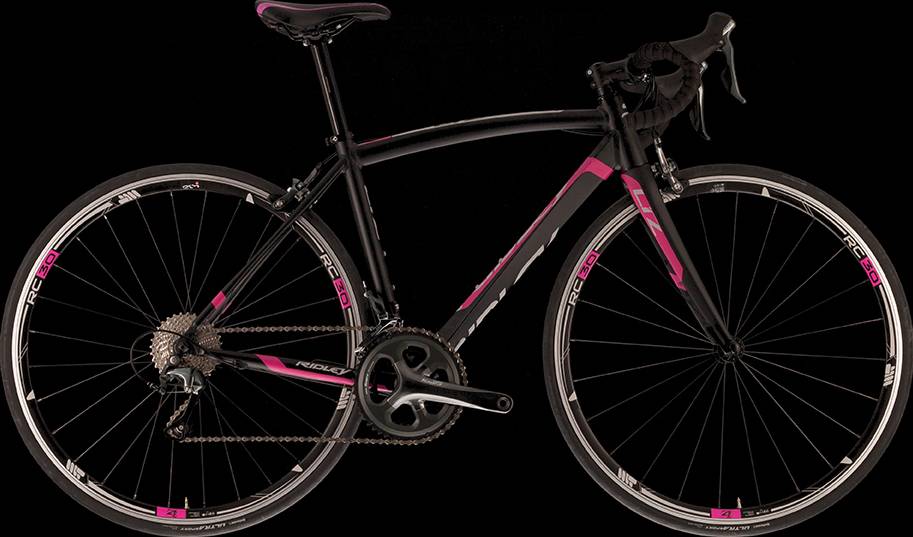

Liz Alloy TIAGRA is a Ridley Liz model. Ridley launched 50 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Liz Alloy TIAGRA components
Fork material
Liz Alloy TIAGRA has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Liz Alloy TIAGRA are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Liz Alloy TIAGRA is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Liz Alloy TIAGRA comes in 4 sizes, that range from 145 cm – 183 cm (4.76 ft – 6 ft). In conclusion, finding one for you shouldn’t be a problem.
