Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Liz C 24T HM UD Carbon
Suspension Fork
Liz C 24T HM UD Carbon
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105 11/32
Crank
Shimano RS510 50/34
Chain
KMC x11
Wheels
Rims
Forza RC31
Tires
Vittoria Zaffiro
Brakes
Brakes
Forza Stratos
Cockpit
Stem
Forza Stratos
Handlebar
Forza Stratos
Seat
Saddle
Forza Stratos Lady
Seatpost
Forza Stratos
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.41 mm | 1.41 mm | 1.46 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 46 mm | 43 mm | 45 mm | 45 mm |
| Trail | 64 mm | 63 mm | 56 mm | 56 mm | 53 mm | 50 mm |
| Stack | 506 mm | 526 mm | 541 mm | 572 mm | 598 mm | 623 mm |
| Reach | 378 mm | 373 mm | 383 mm | 391 mm | 395 mm | 402 mm |
| Top Tube Length | 514 mm | 524 mm | 544 mm | 564 mm | 584 mm | 599 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71.8 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 107 mm | 127 mm | 142 mm | 172 mm | 202 mm | 227 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 412 mm | 412 mm |
| Wheelbase | 974 mm | 974 mm | 981 mm | 991 mm | 1009 mm | 1018 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 739 mm | 764 mm | 788 mm | 819 mm | 849 mm | 877 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

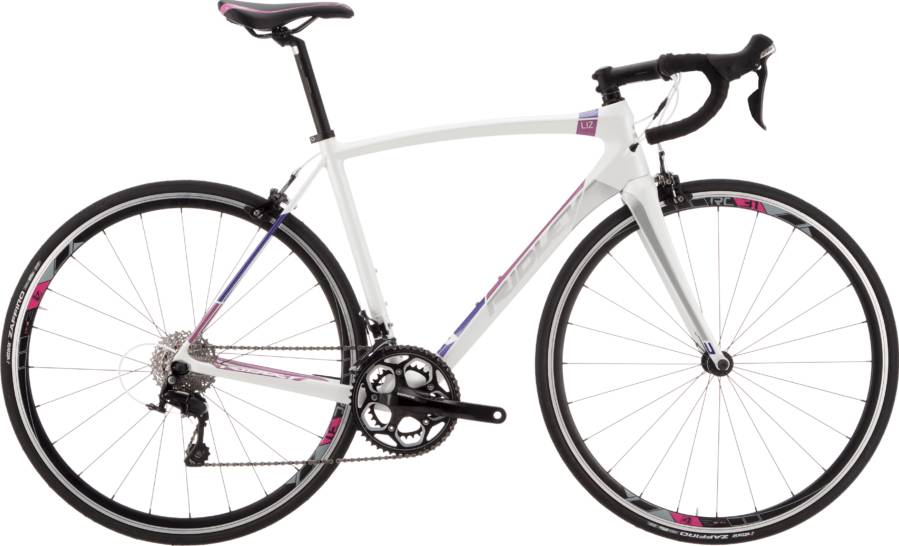

Liz C 105 Mix is part of the Ridley Liz model. Ridley released 50 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Liz C 105 Mix 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Liz C 105 Mix has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
