Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Liz C 24T HM Unidirectional carbon
Suspension Fork
Liz C 24T HM Unidirectional carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
11spd Shimano 105, 11-32
Crank
Shimano RS500 50/34
Chain
KMC X11
Wheels
Rims
4ZA RC31
Tires
Continental Ultrasport Wire Bead 25mm
Brakes
Brakes
4ZA Cirrus
Brake Levers
Shimano Ultegra
Cockpit
Stem
4ZA
Handlebar
4ZA
Seat
Saddle
4ZA
Seatpost
4ZA
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.34 mm | 1.34 mm | 1.38 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 579 mm | 582 mm | 586 mm | 579 mm |
| Rake | 59 mm | 51 mm | 55 mm | 45 mm |
| Trail | 57 mm | 69 mm | 59 mm | 63 mm |
| Stack | 478 mm | 485 mm | 493 mm | 515 mm |
| Reach | 358 mm | 363 mm | 368 mm | 373 mm |
| Top Tube Length | 483 mm | 488 mm | 498 mm | 513 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 155 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 968 mm | 971 mm | 975 mm | 968 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 705 mm | 718 mm | 733 mm | 755 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |
About this model

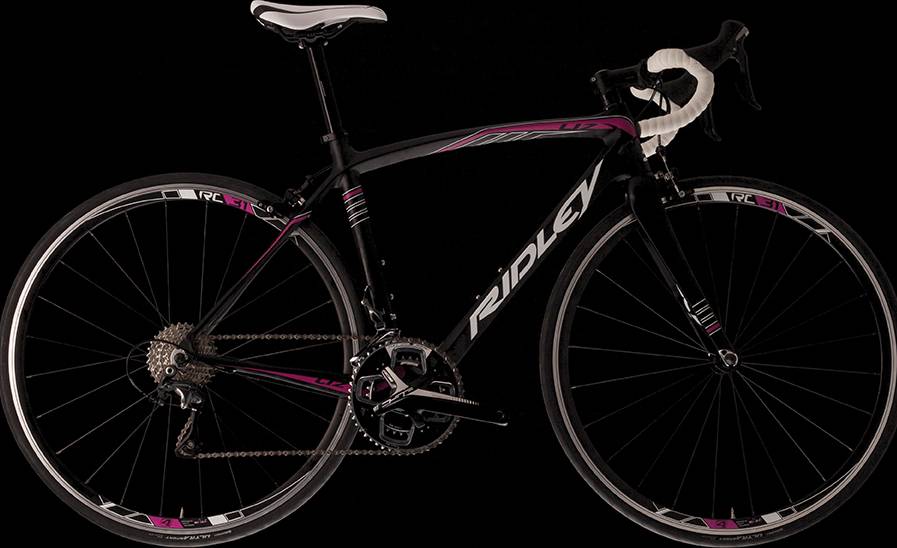

Liz Carbon ULTEGRA MIX is a Ridley Liz model. 50 bikes variations carry this model name so far. You can easily view all of the Ridley Liz bikes models from 2017, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Liz Carbon ULTEGRA MIX 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Liz Carbon ULTEGRA MIX comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Ridley Liz Carbon ULTEGRA MIX bike has 4 sizes, in the range of 145 cm – 183 cm (4.76 ft – 6 ft). In conclusion, you won’t have a problem finding one that suits you.
