Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Liz SL, 30T-24T HM Unidirectional carbon
Suspension Fork
Liz SL, 30T-24T HM Unidirectional carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano 105, 11-28
Crank
Shimano Ultegra 52/36
Chain
KMC X11
Wheels
Rims
4ZA RC23 SL
Tires
Continental Ultrasport Folding 25mm
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra
Cockpit
Stem
4ZA Cirrus
Handlebar
4ZA Cirrus E2
Seat
Saddle
4ZA Cirrus Pro Lady, Cr/Ti rails
Seatpost
4ZA Cirrus 27,2x350mm Zero Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.42 mm | 1.42 mm | 1.47 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 46 mm | 43 mm | 45 mm | 45 mm |
| Trail | 64 mm | 63 mm | 56 mm | 56 mm | 53 mm | 50 mm |
| Stack | 500 mm | 520 mm | 535 mm | 566 mm | 592 mm | 617 mm |
| Reach | 372 mm | 367 mm | 377 mm | 385 mm | 389 mm | 396 mm |
| Top Tube Length | 491 mm | 498 mm | 519 mm | 542 mm | 560 mm | 576 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71.8 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 107 mm | 127 mm | 142 mm | 172 mm | 202 mm | 227 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 406 mm | 406 mm |
| Wheelbase | 968 mm | 968 mm | 975 mm | 985 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 733 mm | 758 mm | 782 mm | 813 mm | 843 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

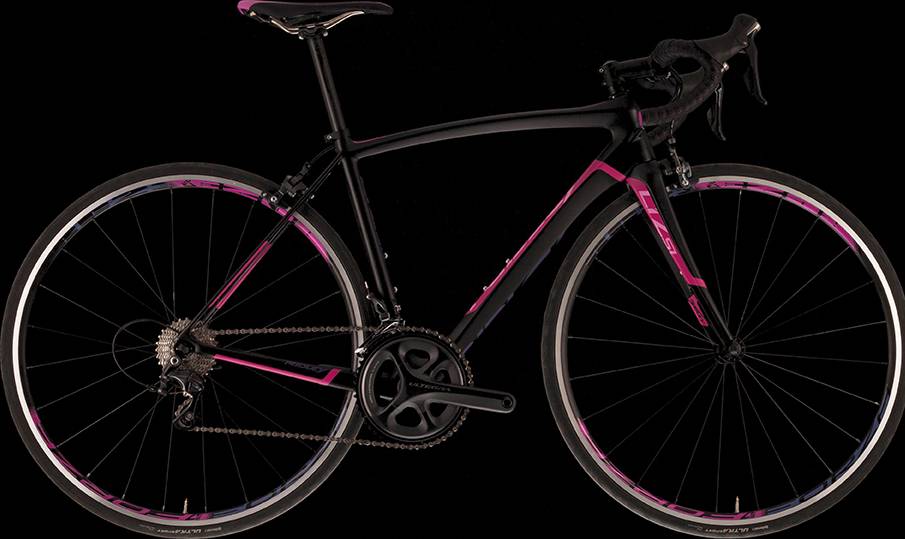

Model Overview
Liz SL ULTEGRA is part of the Ridley Liz model. 50 bikes variations carry this model name so far. Take a sneak peek at all Ridley Liz bikes models from 2017, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Ridley Liz SL ULTEGRA 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Liz SL ULTEGRA has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
