Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Noah SL Disc, 60T-40T-30T HM UD Carbon, In-Mould F-Surface Technology, TA 12x142mm
Suspension Fork
Noah SL Disc Areo+ Steerer, 40T-30T-24T HM UD Carbon, F-Split Fork Technology, TA 12x100mm
Drivetrain
Rear Derailleur
Shimano Dura Ace R9120
Front Derailleur
Shimano Dura Ace R9120
Shift Levers
Shimano Dura Ace R9120
Cassette
Shimano Ultegra 11/28
Crank
Shimano Dura Ace R9120 52/36
Chain
KMC x11
Wheels
Rims
Forza R45-19c
Tires
Vittoria Rubino Pro
Brakes
Brakes
Shimano Dura Ace R9120
Cockpit
Stem
Forza Cirrus Pro Integrated Cockpit
Handlebar
Forza Cirrus Pro Integrated Cockpit
Seat
Saddle
Forza Cirrus Pro
Seatpost
Noah SL Aero Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.42 mm | 1.42 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm |
| Rake | 47 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 60 mm | 62 mm | 55 mm | 53 mm | 53 mm |
| Stack | 499 mm | 519 mm | 534 mm | 565 mm | 591 mm |
| Reach | 371 mm | 366 mm | 376 mm | 382 mm | 388 mm |
| Top Tube Length | 508 mm | 517 mm | 537 mm | 557 mm | 577 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 475 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 400 mm |
| Wheelbase | 962 mm | 962 mm | 969 mm | 979 mm | 997 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm |
| Standover Height | 740 mm | 756 mm | 772 mm | 801 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

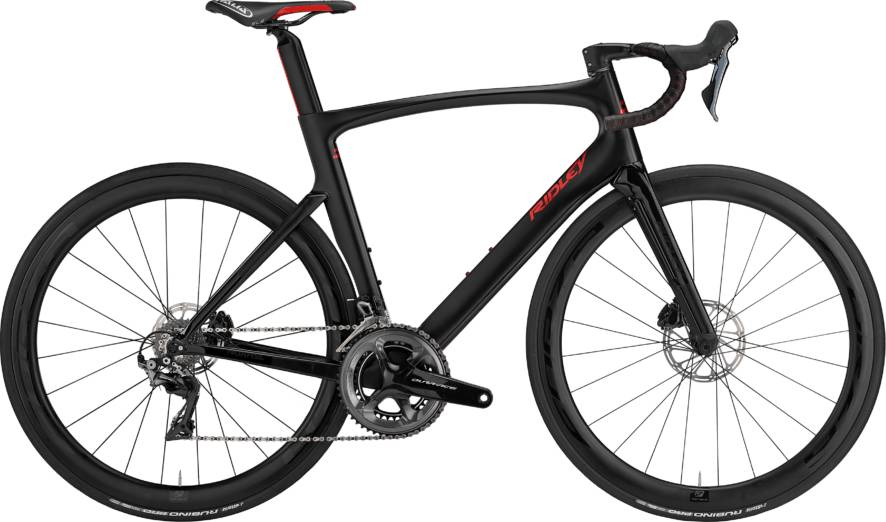

Noah SL Disc Aero+ is part of the Ridley Noah model. Ridley released 82 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Noah SL Disc Aero+ components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Noah SL Disc Aero+ are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ridley Noah SL Disc Aero+ has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
