Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Noah SL, 60T-40T-30T HM Unidirectional carbon, in-mould F-Surface technology
Suspension Fork
Noah SL, 40T-30T-24T HM Unidirectional carbon, F-Split Technology
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano 105, 11-28
Crank
Shimano Ultegra 52/36
Chain
KMC X11
Wheels
Rims
Fulcrum Racing Aero
Tires
Continental Ultrasport Folding 25mm
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra
Cockpit
Stem
4ZA Cirrus
Handlebar
4ZA Cirrus Aerobar
Seat
Saddle
4ZA Cirrus Pro, Cr/Ti rails
Seatpost
Noah SL Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.41 mm | 1.42 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm |
| Rake | 47 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 60 mm | 62 mm | 55 mm | 53 mm | 53 mm |
| Stack | 503 mm | 523 mm | 538 mm | 569 mm | 595 mm |
| Reach | 375 mm | 370 mm | 380 mm | 386 mm | 392 mm |
| Top Tube Length | 502 mm | 509 mm | 527 mm | 545 mm | 563 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 445 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 404 mm |
| Wheelbase | 966 mm | 966 mm | 973 mm | 983 mm | 1001 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm |
| Standover Height | 744 mm | 760 mm | 776 mm | 805 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

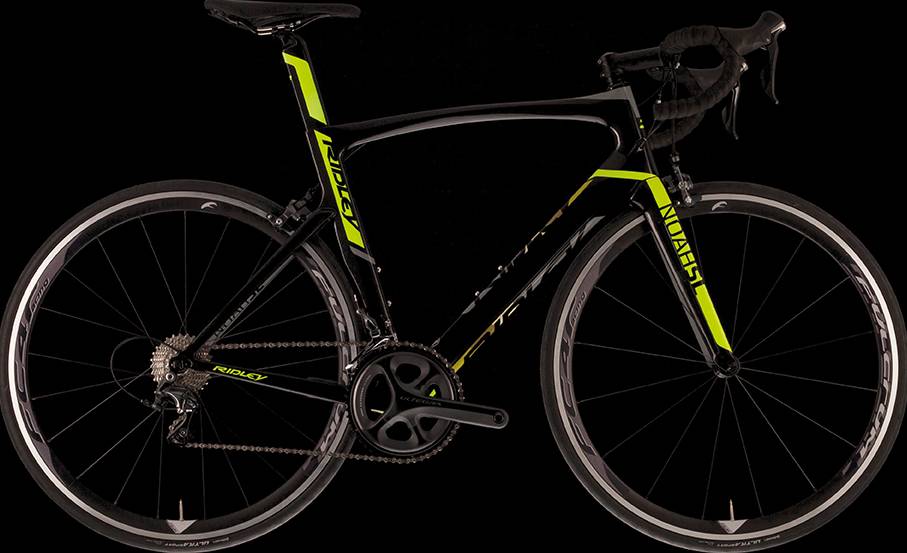

Noah SL ULTEGRA completes the Ridley Noah model. 82 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Noah SL ULTEGRA are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Noah SL ULTEGRA is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
