Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Noah, 30T-24T HM Unidirectional carbon, in-mould F-Surface technology
Suspension Fork
Noah Aero 30T-24T full carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano 105, 11-28
Crank
Shimano Ultegra 52/36
Chain
KMC X11
Wheels
Rims
Fulcrum Racing Aero
Tires
Continental Ultrasport Folding 25mm
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra
Cockpit
Stem
4ZA Cirrus
Handlebar
4ZA Cirrus Aerobar
Seat
Saddle
4ZA Cirrus Pro, Cr/Ti rails
Seatpost
Noah SL Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.41 mm | 1.42 mm | 1.47 mm | 1.52 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm |
| Rake | 47 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 60 mm | 62 mm | 55 mm | 53 mm | 53 mm |
| Stack | 503 mm | 523 mm | 538 mm | 569 mm | 595 mm |
| Reach | 375 mm | 370 mm | 380 mm | 386 mm | 392 mm |
| Top Tube Length | 502 mm | 509 mm | 527 mm | 545 mm | 563 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 445 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 404 mm |
| Wheelbase | 966 mm | 966 mm | 973 mm | 983 mm | 1001 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm |
| Standover Height | 744 mm | 760 mm | 776 mm | 805 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

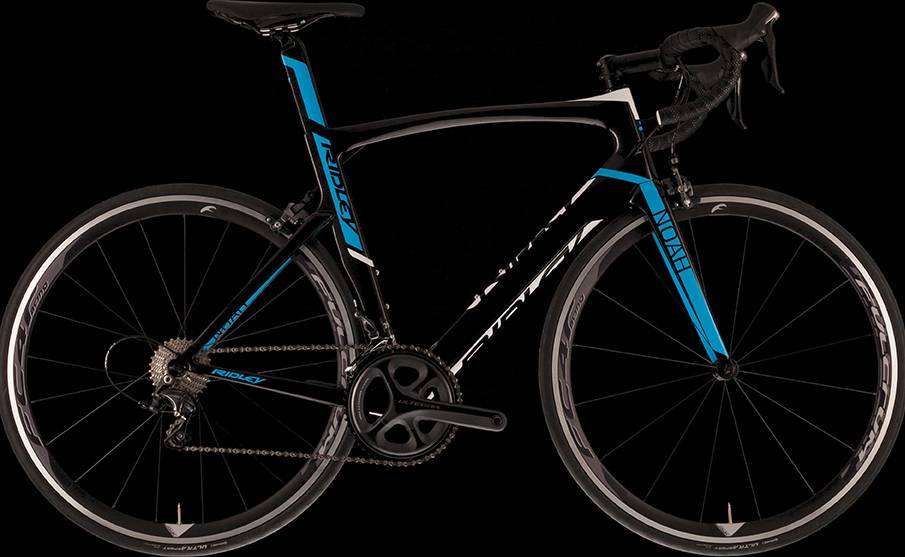

Model Overview
Noah ULTEGRA is part of the Ridley Noah model. Ridley released 82 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Noah ULTEGRA bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Noah ULTEGRA has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
