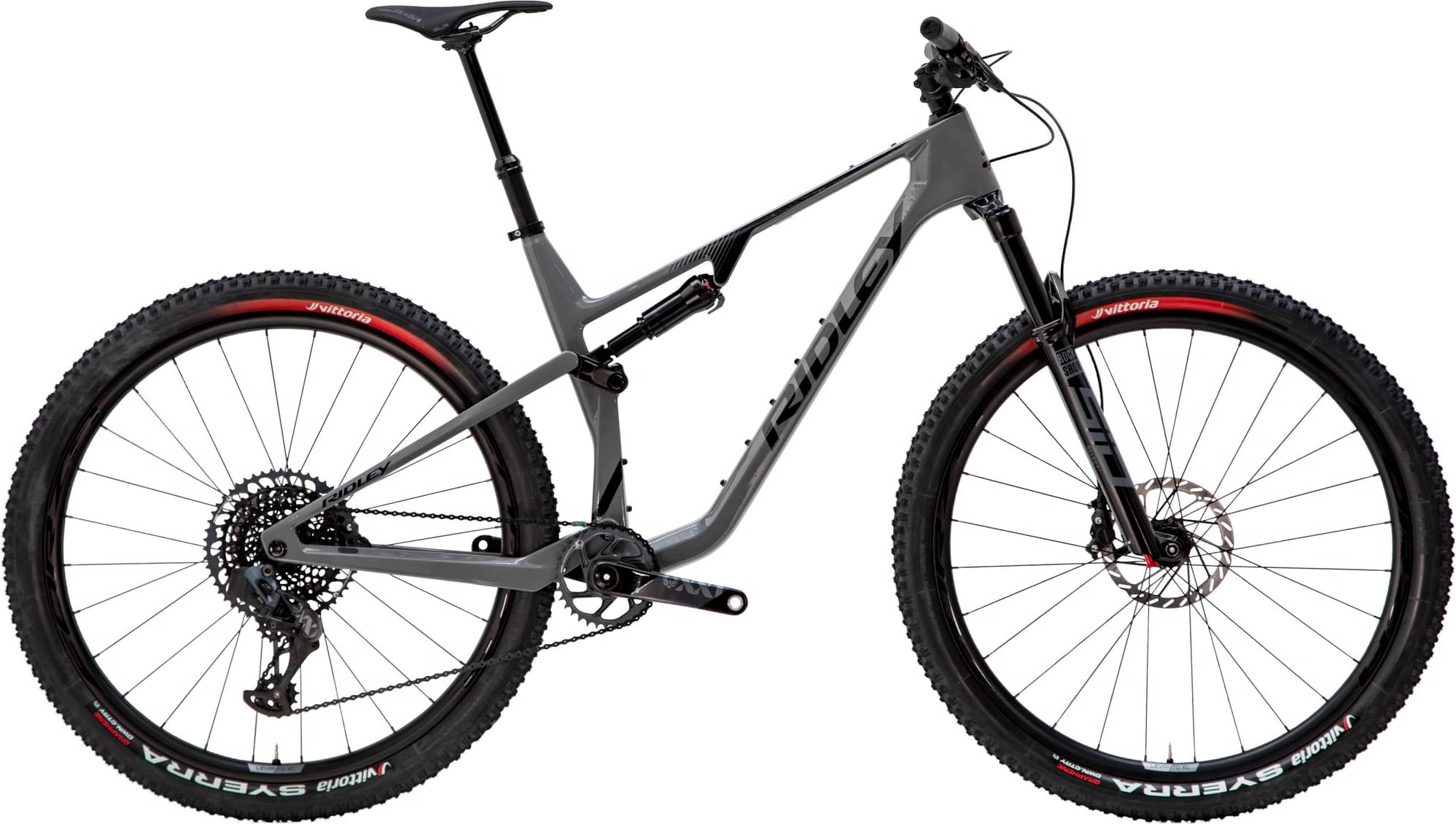

Ridley Raft Trail – Sram GX 1x12sp 2024
2024 Mountain
Estimate price |
4,816$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset GX, Truvativ Stylo -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT, Elite Series, 100
Suspension Fork
RockShox SID Select Charger // RL 29er 120mm TA15/110
Rear Shock
RockShox DeLuxe Select+ // 190x45 // 2 Position Manual adjustment
Drivetrain
Rear Derailleur
SRAM GX 1x12sp
Front Derailleur
SRAM GX 1x12sp
Shift Levers
SRAM GX 1x12sp
Cassette
SRAM XG-1275 Eagle // 10-52T // 12s
Crank
SRAM Stylo 7K Eagle 175mm // 32T
Pedals
Not included **
Wheels
Rims
Front: Forza XCD-SL, 29er // TA 15x110mm // Clincher-TLR // 23mm Internal Width, Rear: 4ZA XCD-SL MTB MST-148S TA12/148 29i R 23c XD
Brakes
Brakes
Front: SRAM Level TL DB, Rear: SRAM Level TL DB // Flat Mount
Cockpit
Stem
Forza Stratos // 70 mm // Black Glossy
Handlebar
4ZA Stratos Flatbar // 740mm
Seat
Saddle
Selle Italia Model X // Black
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.378 mm | 1.325 mm | 1.335 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 701 mm | 728 mm | 757 mm | 780 mm |
| Rake | 44 mm | 44 mm | 47 mm | 44 mm |
| Trail | 114 mm | 114 mm | 111 mm | 114 mm |
| Stack | 596 mm | 601 mm | 608 mm | 633 mm |
| Reach | 411 mm | 436 mm | 459 mm | 474 mm |
| Top Tube Length | 566 mm | 597 mm | 623 mm | 643 mm |
| Seat Tube Angle | 75.3 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1133 mm | 1160 mm | 1189 mm | 1212 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Raft Trail – Sram GX 1x12sp is part of the Ridley Raft model. Ridley released 20 bikes variations of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Ridley Raft Trail – Sram GX 1x12sp 2024 has a starting price of 4446$. Ridley Raft Trail – Sram X01 mix 1x12sp 2024 on the other hand is the most expensive at 5505$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Ridley released this model in 2024, its price was 4446$. Doing a quick comparison, we notice that Raft Trail – Sram GX 1x12sp price is 60.97% more expensive than the average cost of a Trail bike.
Overview of components
Fork
This bike has the RockShox SID Select fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Ridley Raft Trail – Sram GX 1x12sp 2024, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Raft Trail – Sram GX 1x12sp comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
