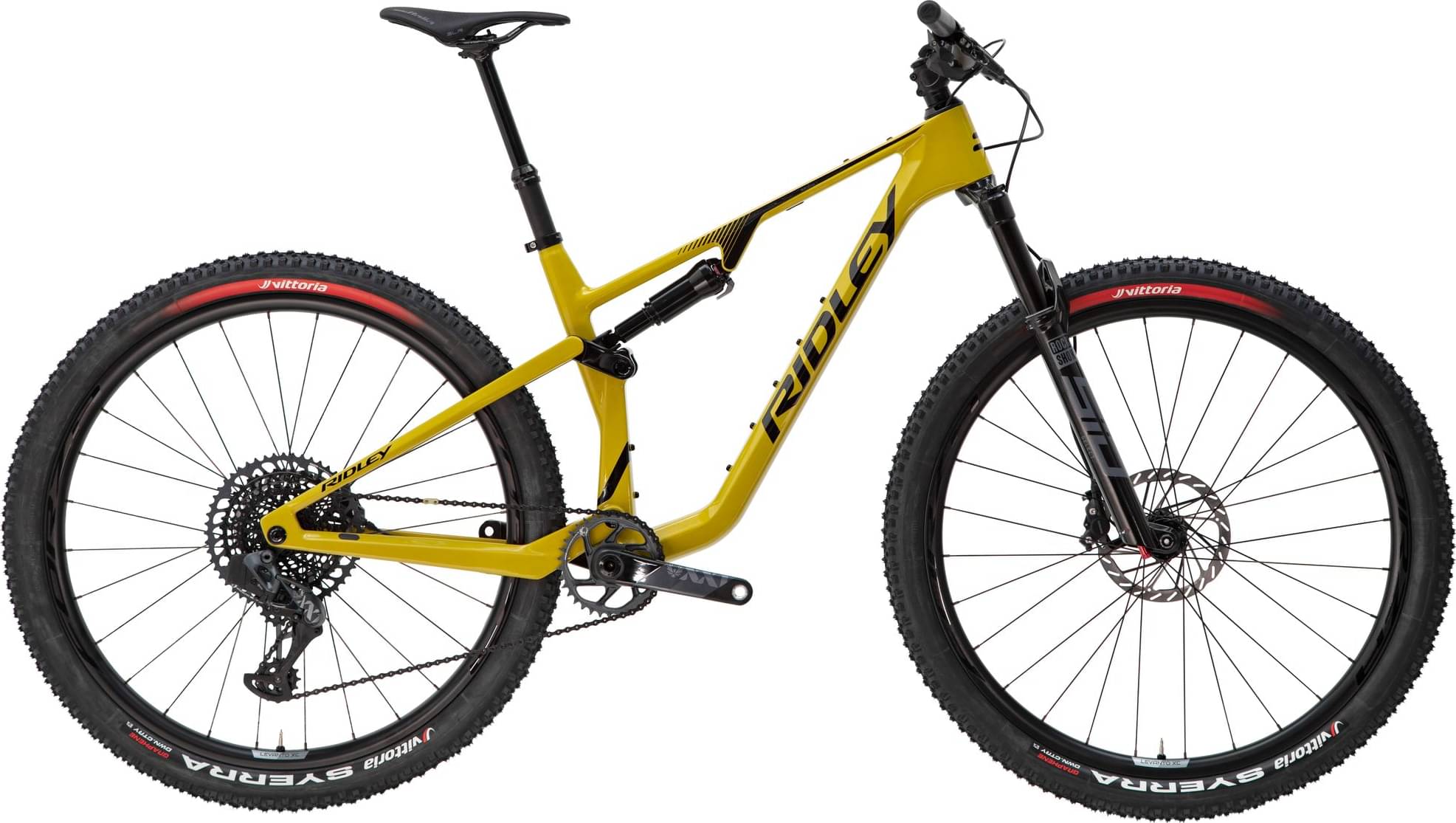

Ridley Raft Trail – Sram GX AXS 1x12sp 2023
2023 Mountain
Estimate price |
6,881$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset GX Eagle AXS, Truvativ Stylo -
Suspension Full -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT, Elite Series, 100
Suspension Fork
RockShox SID Select Charger // RL 29er 120mm TA15/110
Rear Shock
RockShox DeLuxe Select+ // 190x45 // 2 Position Manual adjustment
Drivetrain
Rear Derailleur
SRAM GX AXS 1x12sp
Front Derailleur
SRAM GX AXS 1x12sp
Shift Levers
SRAM GX AXS 1x12sp
Cassette
SRAM XG-1275 Eagle // 10-52T // 12s
Crank
SRAM Stylo 7K Eagle 175mm // 32T
Pedals
Not included **
Wheels
Rims
Front: 4ZA Levanto XC Carbon // 29inch // Tubeless ready, Rear: 4ZA Levanto XC Carbon // 29Inch // Tubeless ready
Brakes
Brakes
Front: SRAM Level TL DB, Rear: SRAM Level TL DB
Cockpit
Stem
Race Face Aeffect R // 50 mm // 35mm clamping area
Handlebar
Race Face Aeffect R // 10mm Rise // 760mm
Seat
Saddle
Selle Italia SLR Boost // Manganese Rails // Black
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.38 mm | 1.32 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 701 mm | 728 mm | 757 mm | 780 mm |
| Rake | 44 mm | 44 mm | 47 mm | 44 mm |
| Trail | 114 mm | 114 mm | 111 mm | 114 mm |
| Stack | 599 mm | 604 mm | 611 mm | 636 mm |
| Reach | 414 mm | 439 mm | 462 mm | 477 mm |
| Top Tube Length | 569 mm | 600 mm | 626 mm | 646 mm |
| Seat Tube Angle | 75.3 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1136 mm | 1163 mm | 1192 mm | 1215 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Raft Trail – Sram GX AXS 1x12sp completes the Ridley Raft model. Ridley released 12 bikes variations of this model so far. You can easily view all of the Ridley Raft bikes models from 2023, here.
Model range prices
The most economical model, the Ridley Raft XC – Sram GX 1x12sp 2023 has a starting price of 4458$. Ridley Raft XC – Sram XX1 mix 1x12sp 2023 on the other hand is the most expensive at 8281$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 6370$. If we compare this with the average Trail bike cost we notice that the price is 130.63% higher.
Overview of components
Fork
The RockShox SID Select is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Raft Trail – Sram GX AXS 1x12sp bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Raft Trail – Sram GX AXS 1x12sp has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
