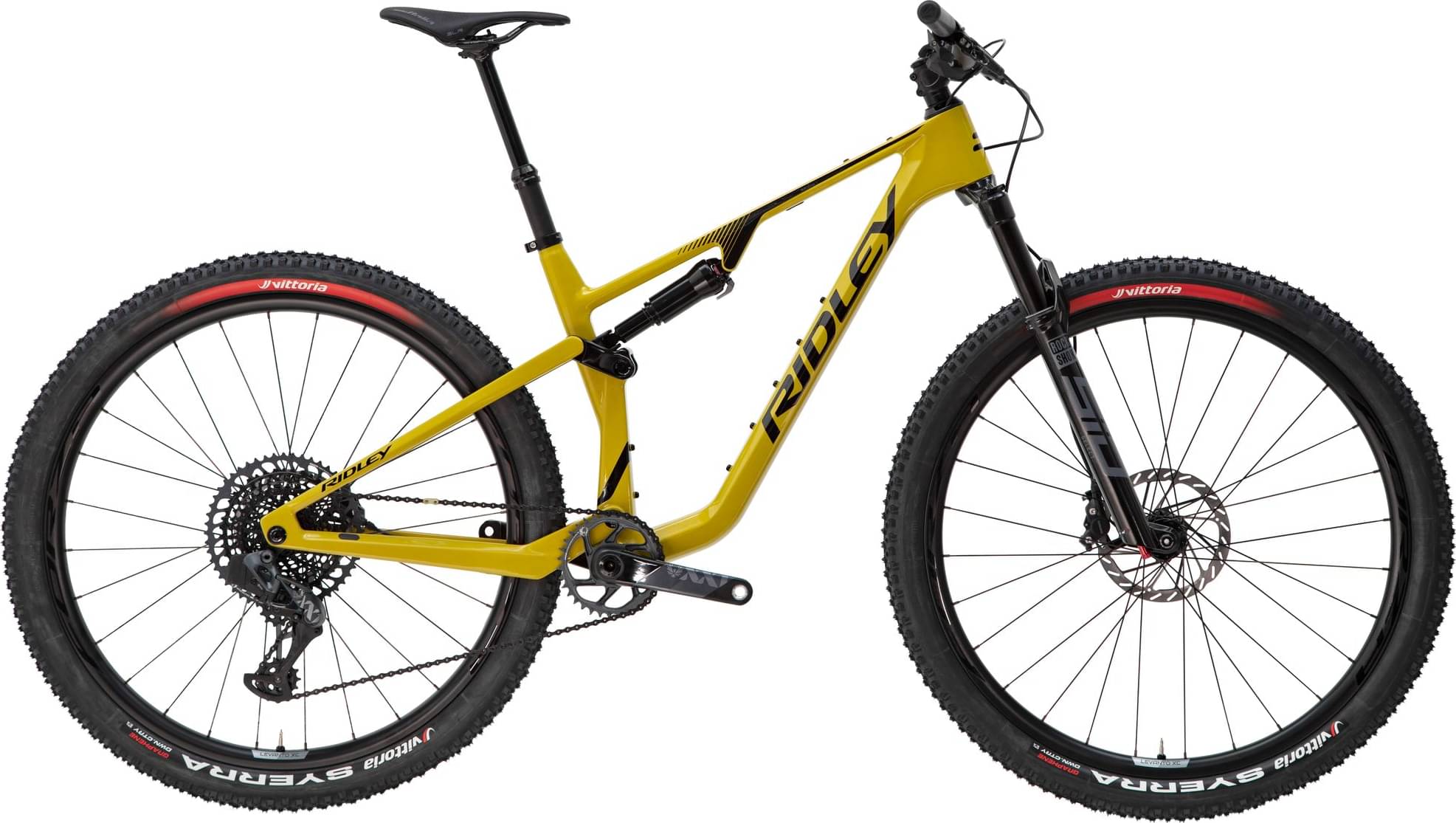

Ridley Raft Trail – Trail version 120mm – Sram X01 1x12sp 2023
2023 Mountain
Estimate price |
6,630$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset X01, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT, Elite Series, 100
Suspension Fork
RockShox SID Select Charger // RL 29er 120mm TA15/110
Rear Shock
RockShox DeLuxe Select+ // 190x45 // 2 Position Manual adjustment
Drivetrain
Rear Derailleur
Trail version 120mm - SRAM X01 1x12sp
Front Derailleur
Trail version 120mm - SRAM X01 1x12sp
Shift Levers
Trail version 120mm - SRAM X01 1x12sp
Cassette
SRAM XG-1295 Eagle // 10-52T // 12s
Crank
SRAM X01 Eagle 175mm // 32T // Lunar Polar
Pedals
Not included **
Wheels
Rims
Front: DT Swiss X1900 Spline // 29Inch // Tubeless ready, Rear: DT Swiss X1900 Spline, 29er // TA 12x148mm // Clincher-TLR // 25mm Internal Width
Brakes
Brakes
Front: SRAM Level TLM DB, Rear: SRAM Level TLM DB
Cockpit
Stem
Race Face Aeffect R // 50 mm // 35mm clamping area
Handlebar
Race Face Aeffect R // 10mm Rise // 760mm
Seat
Saddle
Selle Italia SLR Boost // Manganese Rails // Black
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.38 mm | 1.32 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 701 mm | 728 mm | 757 mm | 780 mm |
| Rake | 44 mm | 44 mm | 47 mm | 44 mm |
| Trail | 114 mm | 114 mm | 111 mm | 114 mm |
| Stack | 599 mm | 604 mm | 611 mm | 636 mm |
| Reach | 414 mm | 439 mm | 462 mm | 477 mm |
| Top Tube Length | 569 mm | 600 mm | 626 mm | 646 mm |
| Seat Tube Angle | 75.3 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1136 mm | 1163 mm | 1192 mm | 1215 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Raft Trail – Trail version 120mm – Sram X01 1x12sp is a Ridley Raft model. 12 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Ridley Raft XC – Sram GX 1x12sp 2023 has a starting price of 4458$. Ridley Raft XC – Sram XX1 mix 1x12sp 2023 on the other hand is the most expensive at 8281$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 6051$. Comparing the average cost of a Trail bike to this one, you will see that Raft Trail – Trail version 120mm – Sram X01 1x12sp price is 119.08% more expensive.
Overview of components
Fork
The RockShox SID Select is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Raft Trail – Trail version 120mm – Sram X01 1x12sp model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Raft Trail – Trail version 120mm – Sram X01 1x12sp comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Ridley Raft Trail – Trail version 120mm – Sram X01 1x12sp comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
