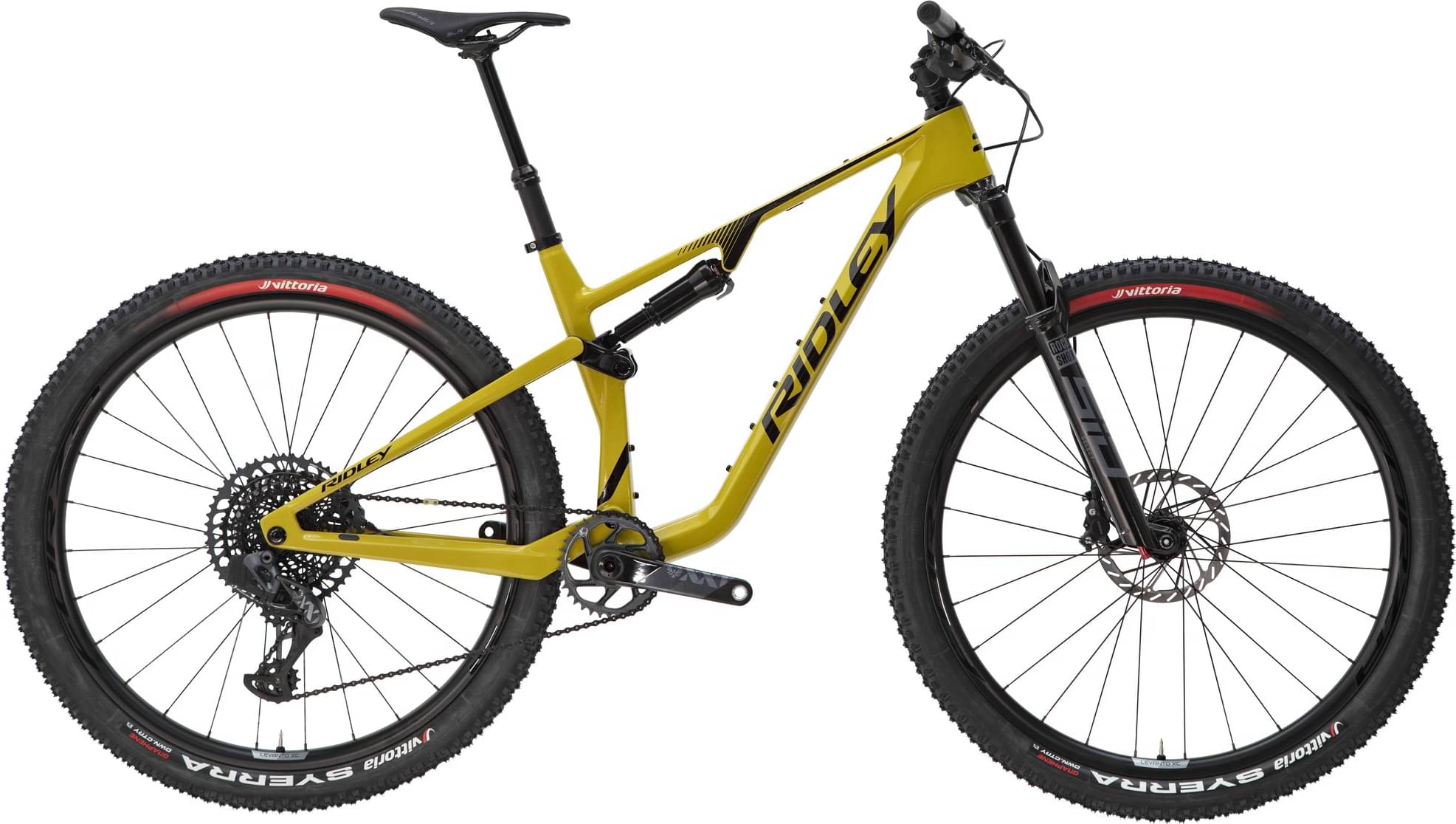

Ridley Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp 2023
2023 Mountain
Estimate price |
5,734$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset X01, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT, Elite Series, 100
Suspension Fork
RockShox SID Select Charger // RL 29er 120mm TA15/110
Rear Shock
RockShox DeLuxe Select+ // 190x45 // 2 Position Manual adjustment
Drivetrain
Rear Derailleur
Trail version 120mm - SRAM X01 mix 1x12sp
Front Derailleur
Trail version 120mm - SRAM X01 mix 1x12sp
Shift Levers
Trail version 120mm - SRAM X01 mix 1x12sp
Cassette
SRAM XG-1275 Eagle // 10-52T // 12s
Crank
SRAM Stylo 7K Eagle 175mm // 32T
Pedals
Not included **
Wheels
Rims
Front: DT Swiss X1900 Spline // 29Inch // Tubeless ready, Rear: DT Swiss X1900 Spline, 29er // TA 12x148mm // Clincher-TLR // 25mm Internal Width
Brakes
Brakes
Front: SRAM Level TL DB, Rear: SRAM Level TL DB
Cockpit
Stem
Race Face Aeffect R // 50 mm // 35mm clamping area
Handlebar
Race Face Aeffect R // 10mm Rise // 760mm
Seat
Saddle
Selle Italia X-LR AIR-Cross Light
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.38 mm | 1.32 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 701 mm | 728 mm | 757 mm | 780 mm |
| Rake | 44 mm | 44 mm | 47 mm | 44 mm |
| Trail | 114 mm | 114 mm | 111 mm | 114 mm |
| Stack | 599 mm | 604 mm | 611 mm | 636 mm |
| Reach | 414 mm | 439 mm | 462 mm | 477 mm |
| Top Tube Length | 569 mm | 600 mm | 626 mm | 646 mm |
| Seat Tube Angle | 75.3 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1136 mm | 1163 mm | 1192 mm | 1215 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp completes the Ridley Raft model. Ridley launched 12 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Ridley Raft XC – Sram GX 1x12sp 2023 is the most economical model, with a starting price of 4458$. Ridley Raft XC – Sram XX1 mix 1x12sp 2023 on the other hand costs 8281$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Ridley released this model in 2023, its price was 5308$. Doing a quick comparison, we notice that Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp price is 92.18% more expensive than the average cost of a Trail bike.
Overview of components
Fork
The Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp comes factory-installed with the RockShox SID Select fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Ridley Raft Trail – Trail version 120mm – Sram X01 mix 1x12sp comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
