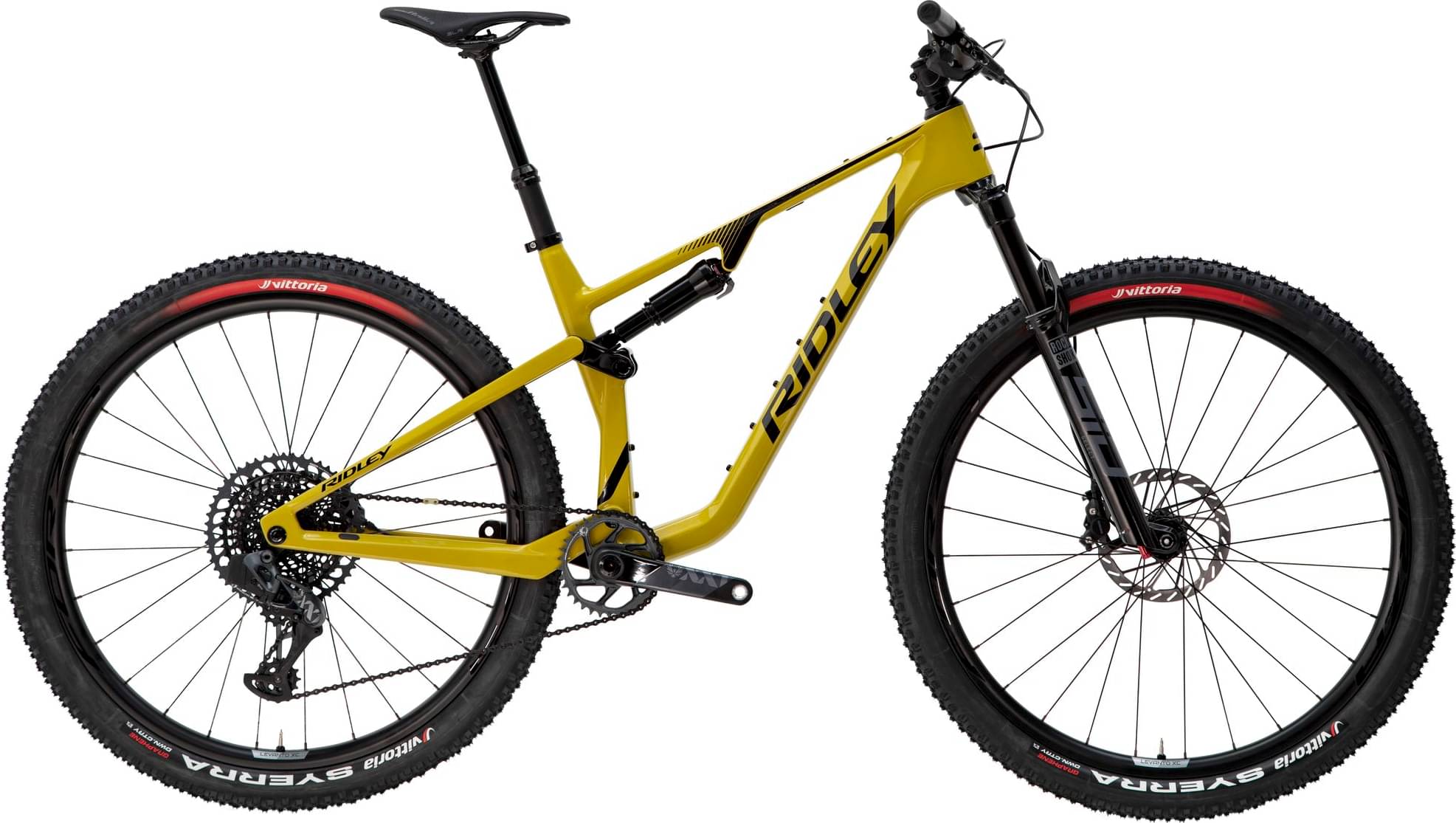

Ridley Raft XC – Sram Transmission GX 2023
2023 Mountain
Estimate price |
7,225$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT, Elite Series, 100
Suspension Fork
RockShox SID SL Select+ // 100mm
Rear Shock
RS SIDLUXE SEL+ RO 190X40 DB1 AWT 430SS A1 MY23
Drivetrain
Rear Derailleur
SRAM Transmission GX
Front Derailleur
SRAM Transmission GX
Shift Levers
SRAM Transmission GX
Cassette
SRAM Transmission GX 10-52T
Crank
SRAM GX Eagle 175mm 32T DUB GREY
Wheels
Rims
Front: 4ZA Levanto XC Carbon // 29inch // Tubeless ready, Rear: 4ZA Levanto XC Carbon // 29Inch // Tubeless ready
Brakes
Brakes
Front: SRAM Level TL DB, Rear: SRAM Level TL DB
Cockpit
Stem
Forza Stratos // 70 mm // Black Glossy
Handlebar
Forza Cirrus Pro Flat Bar // 740mm // 9° // Stealth Black
Seat
Saddle
Selle Italia SLR Boost // Manganese Rails // Black
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 694 mm | 722 mm | 750 mm | 773 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 592 mm | 597 mm | 611 mm | 629 mm |
| Reach | 423 mm | 449 mm | 472 mm | 487 mm |
| Top Tube Length | 567 mm | 597 mm | 623 mm | 643 mm |
| Seat Tube Angle | 76.3 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1128 mm | 1156 mm | 1184 mm | 1207 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Raft XC – Sram Transmission GX is a Ridley Raft model. Ridley launched 12 bikes of this model so far. Take a sneak peek at all Ridley Raft bikes models from 2023, by clicking here.
Model range prices
Ridley Raft XC – Sram GX 1x12sp 2023 is the most economical model, with a starting price of 4458$. Ridley Raft XC – Sram XX1 mix 1x12sp 2023 on the other hand costs 8281$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Ridley Raft XC – Sram Transmission GX price was 6688$. Comparing the average cost of a Crosscountry bike to this one, you will see that Raft XC – Sram Transmission GX price is 251.08% more expensive.
Raft XC – Sram Transmission GX components
Fork
The fork installed on this bike is the RockShox SID SL Select model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Raft XC – Sram Transmission GX 2023 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Raft XC – Sram Transmission GX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Raft XC – Sram Transmission GX comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Ridley Raft XC – Sram Transmission GX includes a dropper post. Therefore, climbing or descending will be a breeze.
