Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bow, 7005-T6 alloy
Suspension Fork
Zornyc, Alloy steerer
Drivetrain
Rear Derailleur
Shimano Tiagra 10s
Front Derailleur
Shimano Tiagra 2s
Shift Levers
Shimano Tiagra
Cassette
Shimano CS-HG500-10, 11-32
Crank
FSA Gossamer MegaExo, 46/36
Chain
KMC X10
Wheels
Rims
4ZA RC30, Shimano hubs
Tires
Clement MXP 700x33c, wire
Brakes
Brakes
Tektro CR-710 Canti
Brake Levers
Shimano Tiagra
Cockpit
Stem
4ZA
Handlebar
4ZA
Seat
Saddle
4ZA
Seatpost
4ZA, 31,6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.47 mm | 1.49 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 291 mm | 287 mm | 285 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 575 mm | 584 mm | 583 mm | 594 mm | 609 mm | 624 mm |
| Rake | 41 mm | 48 mm | 47 mm | 47 mm | 48 mm | 47 mm |
| Trail | 75 mm | 61 mm | 62 mm | 62 mm | 61 mm | 62 mm |
| Stack | 497 mm | 520 mm | 537 mm | 553 mm | 567 mm | 591 mm |
| Reach | 367 mm | 371 mm | 366 mm | 372 mm | 382 mm | 390 mm |
| Top Tube Length | 493 mm | 509 mm | 516 mm | 528 mm | 547 mm | 563 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 120 mm | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 987 mm | 995 mm | 994 mm | 1004 mm | 1020 mm | 1035 mm |
| Bottom Bracket Drop | 53 mm | 57 mm | 59 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 704 mm | 739 mm | 765 mm | 791 mm | 816 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

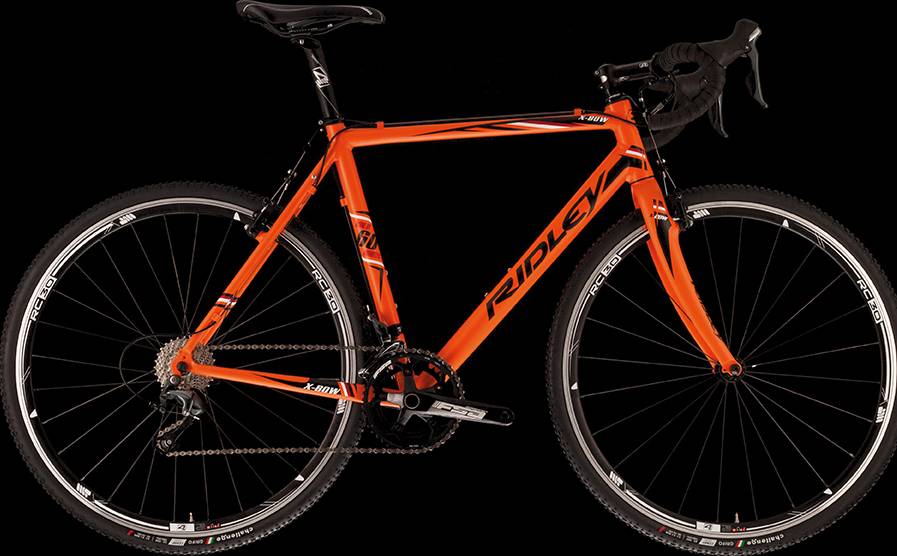

X-Bow CANTI TIAGRA completes the Ridley X Bow model. Ridley released 18 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross bikes
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
X-Bow CANTI TIAGRA components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Ridley X-Bow CANTI TIAGRA 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The X-Bow CANTI TIAGRA comes with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
