Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bow Disc, 7005-T6 alloy
Suspension Fork
Zornyc Disc, Alloy steerer
Drivetrain
Rear Derailleur
Shimano 105 11s
Front Derailleur
Shimano 105 2s
Shift Levers
Shimano 105
Cassette
Shimano 105, 11-28
Crank
FSA Gossamer MegaExo, 46/36
Chain
KMC X11
Wheels
Rims
Fulcrum Racing Sport DB
Tires
Clement MXP 700x33c
Brakes
Brakes
TRP Spyre C Mechanical Disc, F160/R140
Brake Levers
Shimano 105
Cockpit
Stem
4ZA New Stratos
Handlebar
4ZA New Stratos
Seat
Saddle
4ZA New Stratos Dynamic Comfort
Seatpost
4ZA New Stratos, 31,6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.47 mm | 1.49 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 291 mm | 287 mm | 285 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 575 mm | 584 mm | 583 mm | 594 mm | 609 mm | 624 mm |
| Rake | 41 mm | 48 mm | 47 mm | 47 mm | 48 mm | 47 mm |
| Trail | 75 mm | 61 mm | 62 mm | 62 mm | 61 mm | 62 mm |
| Stack | 497 mm | 520 mm | 537 mm | 553 mm | 567 mm | 591 mm |
| Reach | 367 mm | 371 mm | 366 mm | 372 mm | 382 mm | 390 mm |
| Top Tube Length | 493 mm | 509 mm | 516 mm | 528 mm | 547 mm | 563 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 120 mm | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 987 mm | 995 mm | 994 mm | 1004 mm | 1020 mm | 1035 mm |
| Bottom Bracket Drop | 53 mm | 57 mm | 59 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 704 mm | 739 mm | 765 mm | 791 mm | 816 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

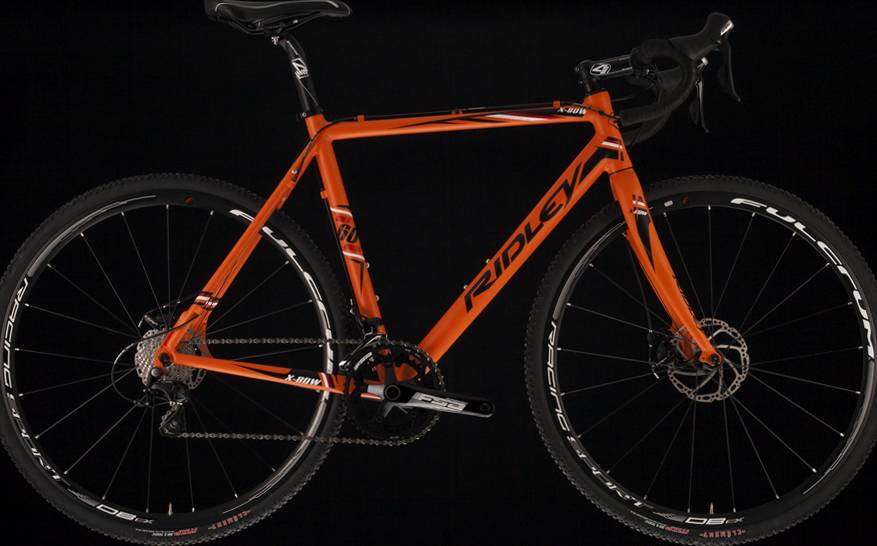

X-Bow DISC 105 MIX MDB belongs to the Ridley X Bow model. Ridley released 18 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Ridley X-Bow DISC 105 MIX MDB 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley X-Bow DISC 105 MIX MDB is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
