Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Night SL Disc, 30T-24T HM/HR Unidirectional carbon
Suspension Fork
Oryx Disc TA, Carbon steerer
Drivetrain
Rear Derailleur
Shimano Ultegra 11s
Front Derailleur
Shimano Ultegra 2s
Shift Levers
Shimano ST-R685
Cassette
Shimano 105, 11-28
Crank
Shimano Ultegra, PF30, 46/36
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Rims
DT Swiss R23 Spline DB
Tires
Clement MXP 700x33c, Tubeless Ready
Brakes
Brakes
Shimano BR-RS805 / BR-RS785 Hydraulic Disc, F160/R140
Brake Levers
Shimano ST-R685
Cockpit
Stem
4ZA Cirrus
Handlebar
4ZA Cirrus E.2
Seat
Saddle
4ZA Cirrus Pro, Cr/Ti rails
Seatpost
4ZA Cirrus Carbon, 27,2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.32 mm | 1.36 mm | 1.43 mm | 1.47 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 291 mm | 287 mm | 284 mm | 284 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 581 mm | 581 mm | 581 mm | 592 mm | 592 mm | 617 mm |
| Rake | 49 mm | 54 mm | 47 mm | 46 mm | 47 mm | 33 mm | 46 mm |
| Trail | 63 mm | 55 mm | 62 mm | 63 mm | 62 mm | 77 mm | 63 mm |
| Stack | 487 mm | 491 mm | 509 mm | 527 mm | 547 mm | 566 mm | 584 mm |
| Reach | 371 mm | 371 mm | 374 mm | 369 mm | 373 mm | 382 mm | 387 mm |
| Top Tube Length | 493 mm | 518 mm | 523 mm | 528 mm | 538 mm | 553 mm | 568 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 410 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 89 mm | 89 mm | 105 mm | 121 mm | 140 mm | 160 mm | 179 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 992 mm | 992 mm | 992 mm | 992 mm | 1002 mm | 1002 mm | 1027 mm |
| Bottom Bracket Drop | 53 mm | 57 mm | 60 mm | 60 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 703 mm | 755 mm | 772 mm | 790 mm | 809 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

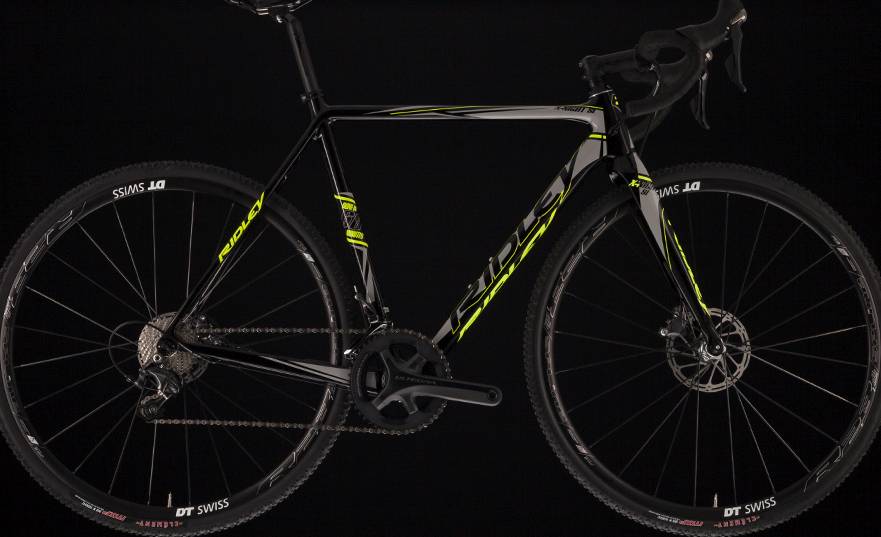

X-Night SL DISC ULTEGRA HDB is a Ridley X Night model. Ridley released 64 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Cyclocross bikes
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, even if your budget is less than the average, you might still be able to get a top-quality Cyclocross bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
X-Night SL DISC ULTEGRA HDB components
Fork material
X-Night SL DISC ULTEGRA HDB has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the X-Night SL DISC ULTEGRA HDB model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
