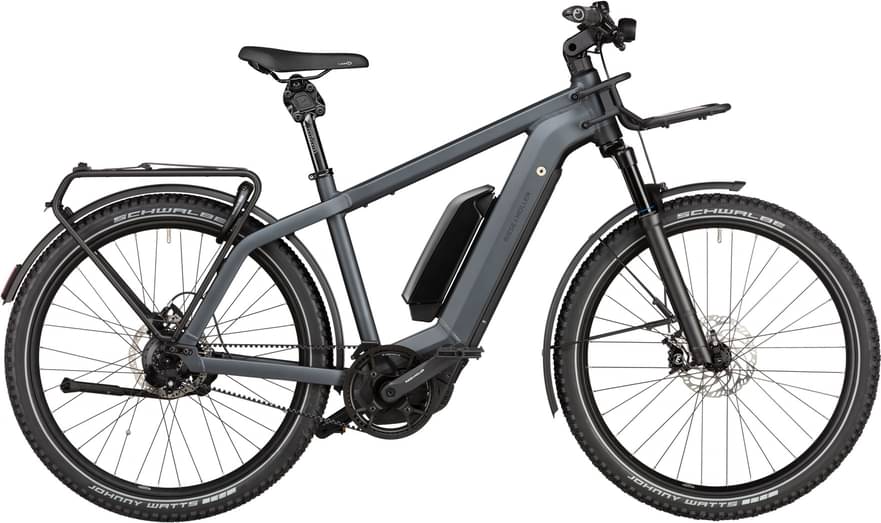

Riese & Müller Riese & Müller Charger3 GT vario HS 2022
2022 E-bike
Estimate price |
7,053$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Fork Marzocchi Bomber Z2
-
Suspension Hardtail -
Motor mid-drive -
Battery Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh* -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Marzocchi Bomber Z2, Air, tapered, 100mm
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
Riese & Müller, 170mm
Chain
Gates drive belt CDX
Chain Guide
Belt guard
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Boost, QR, 32H
Rear Hub
Enviolo 380, 36H
Rims
Rodi Tryp35 27,5"
Tires
Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake
Cockpit
Stem
Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Handlebar
Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
Grips
Ergon ergonomic
Headset
Acros IntegrationX, block lock
Seat
Saddle
Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*
Seatpost
Cane Creek New Thudbuster ST
Motor & Battery
Motor
Performance Line Speed (Gen4)
Battery
Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Remote
Bosch Intuvia; Bosch Nyon*; Bosch Kiox*; Bosch SmartphoneHub*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 53cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.718 mm | 1.595 mm | 1.489 mm | 1.457 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 670 mm | 670 mm | 670 mm | 685 mm |
| Reach | 390 mm | 420 mm | 450 mm | 470 mm |
| Top Tube Length | 590 mm | 620 mm | 650 | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 150 mm | 165 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1155 mm | 1185 mm | 1215 mm | 1240 mm |
| Standover Height | 835 mm | 840 mm | 840 mm | 840 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
Charger3 GT vario HS completes the Rieseandmuller E Charger3 model. 20 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Riese & Müller Charger3 touring 2022 is the cheapest e-bike model and costs 5202$. Riese & Müller Charger3 GT rohloff HS 2022 is the most expensive one and costs 8069$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Riese & Müller released this model in 2022, its price was 6529$. If we compare this with the average Commuter e-bike cost we notice that the price is 154.15% higher.
Overview of components
Fork
The fork installed on this bike is the Marzocchi Bomber Z2 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Riese & Müller Charger3 GT vario HS 2022, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
