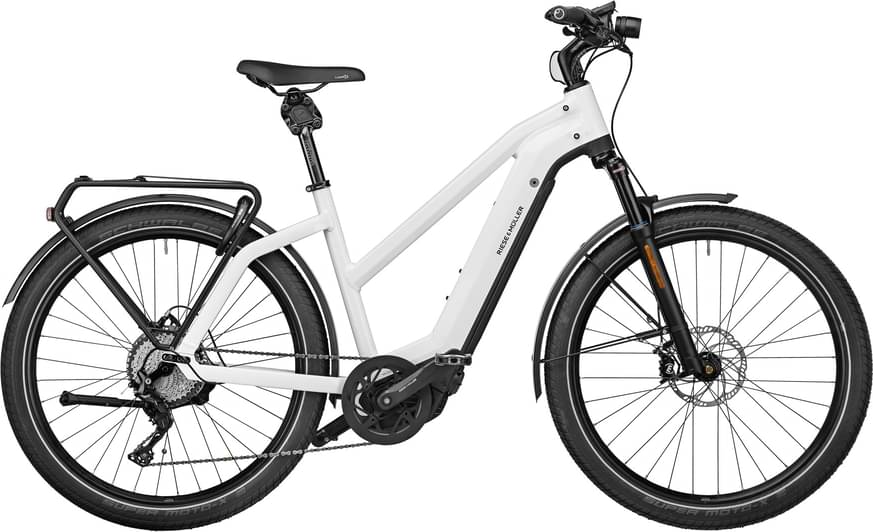

Riese & Müller Riese & Müller Charger3 Mixte GT rohloff HS 2022
2022 E-bike
Estimate price |
8,716$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Fork Marzocchi Bomber Z2
-
Suspension Hardtail -
Motor mid-drive -
Battery Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh* -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Marzocchi Bomber Z2, Air, tapered, 100mm
Drivetrain
Shift Levers
Rohloff E14 electronic shifter
Crank
Riese & Müller, 170mm
Chain
Gates drive belt CDX
Chain Guide
Riemenschutzring
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Boost, QR, 32H
Rear Hub
Rohloff Speedhub E14, 14-speed, 36H
Rims
Rodi Tryp35 27,5"
Tires
Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake
Cockpit
Stem
Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Handlebar
Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
Grips
Ergon ergonomic
Headset
Acros IntegrationX, block lock
Seat
Saddle
Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*
Seatpost
Cane Creek New Thudbuster ST
Motor & Battery
Motor
Performance Line Speed (Gen4)
Battery
Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Remote
Bosch Intuvia; Bosch Nyon*; Bosch Kiox*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 53cm |
|---|---|---|---|
| Stack Reach Ratio | 1.718 mm | 1.595 mm | 1.489 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Trail | 92 mm | 92 mm | 92 mm |
| Stack | 670 mm | 670 mm | 670 mm |
| Reach | 390 mm | 420 mm | 450 mm |
| Top Tube Length | 590 mm | 620 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1155 mm | 1185 mm | 1215 mm |
| Standover Height | 795 mm | 785 mm | 775 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
Model Overview
Charger3 Mixte GT rohloff HS is part of the Rieseandmuller E Charger3 model. Riese & Müller released 20 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Riese & Müller Charger3 touring 2022 is the most economical model, with a starting price of 5202$. Riese & Müller Charger3 GT rohloff HS 2022 on the other hand costs 8069$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Riese & Müller released this model in 2022, its price was 8069$. Comparing the average cost of a Commuter e-bike to this one, you will see that Charger3 Mixte GT rohloff HS price is 214.09% more expensive.
Charger3 Mixte GT rohloff HS components
Fork
The Marzocchi Bomber Z2 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Charger3 Mixte GT rohloff HS are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
