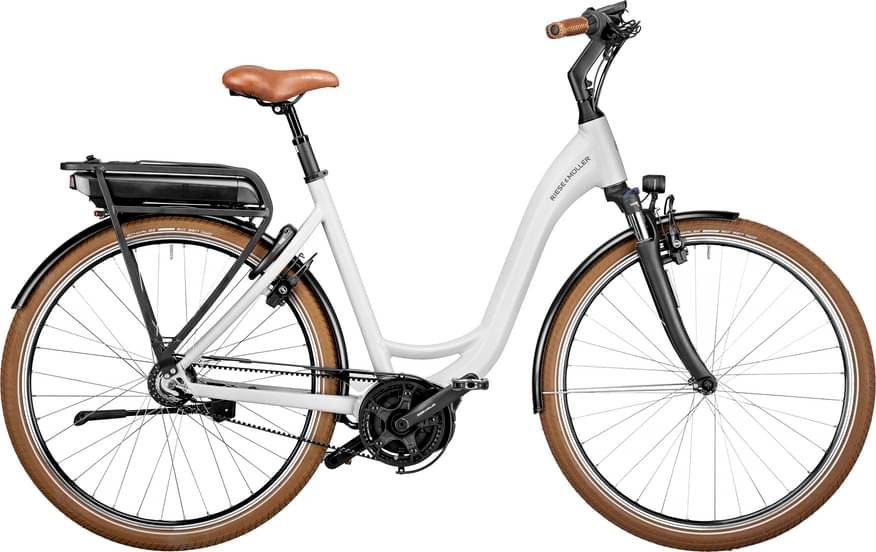

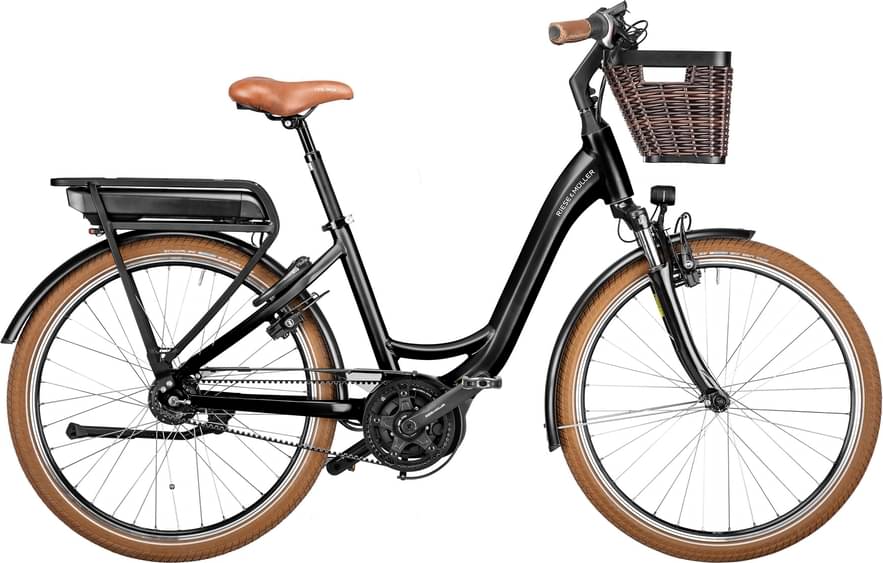

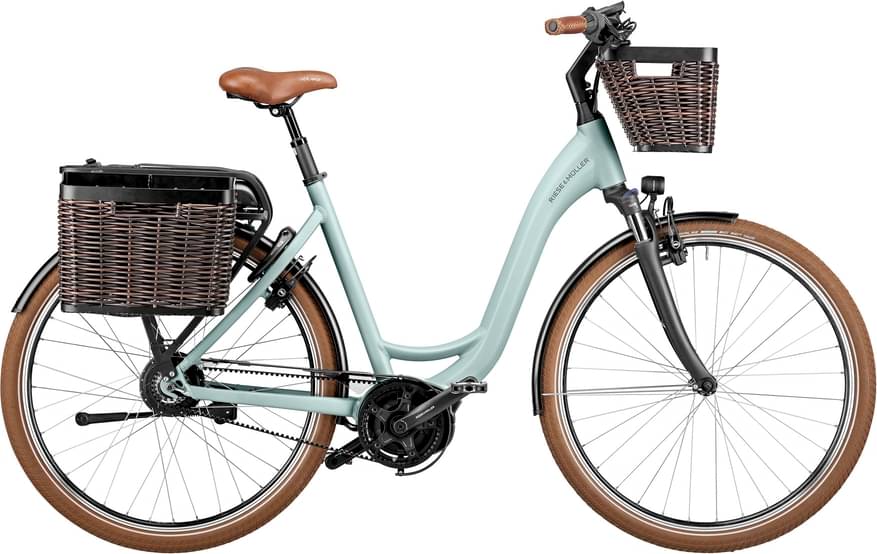

Riese & Müller Riese & Müller Swing vario 2023
2023 E-bike
Estimate price |
5,325$
Weight | 27.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 60mm -
Fork Suntour
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour SF14, 28", 63mm, tapered; SR Suntour SF18, 26", 63mm, tapered*
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
FSA CK-601 170mm schwarz
Chain
Gates drive belt CDC; Gates drive belt CDX*
Chain Guide
Hebie Chainbar, black
Pedals
M-Wave Steady Flat
Wheels
Front Hub
Novatec 32H
Rear Hub
Enviolo 380, 36H
Rims
Mach1, 28", CNC; Mach1 260 26" CNC*
Spokes
Sapim Leader 2,0 mm, Inox ( 36x )
Tires
Schwalbe Big Ben 50-622 Reflex; Schwalbe Big Ben 50-559 Reflex*
Brakes
Brakes
Magura HS22, rim brake
Cockpit
Stem
Satori Stargazer-e, 110 mm, 35°; Satori Stargazer-e, 90 mm, 35°*
Handlebar
Satori Noirette Plus, 31,8 mm, Alu
Grips
Velo Leather-Look
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Bassano Volare XL
Seatpost
Satori Elegance-LT OV 34,9 x 405mm; Satori Elegance LT*
Motor & Battery
Motor
Bosch Performance Line (Gen3)
Battery
Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 51cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.697 mm | 1.613 mm | 1.554 mm |
| Bottom Bracket Height | 275 mm | 280 mm | 280 mm | 280 mm |
| Trail | 75 mm | 92 mm | 92 mm | 92 mm |
| Stack | 590 mm | 645 mm | 645 mm | 645 mm |
| Reach | 375 mm | 380 mm | 400 mm | 415 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 635 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Angle | 70 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 145 mm | 145 mm | 145 mm | 145 mm |
| Chainstay Length | 470 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1085 mm | 1115 mm | 1135 mm | 1150 mm |
| Bottom Bracket Drop | 68 mm | mm | mm | mm |
| Front Travel | 50 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 26" | 700 | 700 | 700 |
About this model
Swing vario is a Rieseandmuller E Swing model. 9 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Riese & Müller Swing rücktritt 2023 has a starting price of 4609$. Riese & Müller Swing automatic 2023 on the other hand is the most expensive at 5181$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Riese & Müller released this model in 2023, its price was 4840$. Doing a quick comparison, we notice that Swing vario price is 97.31% more expensive than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Riese & Müller Swing vario it’s weighing 27.2 kg (59.97 lbs). At this weight, is much heavier than average. In short, the average Crosscountry e-bike weight is 17.19% lower than this one.
Overview of components
Fork
This e-bike has the Suntour fork installed. The fork’s travel is 60mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Swing vario are the 26″ aluminum type. These wheels give you great handling over your e-bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Riese & Müller Swing vario has Hydraulic Rim brakes installed. They are a bit expensive, and don’t deliver such a great performance. In short, you can look for a bike with disk or hydraulic disk brakes.
