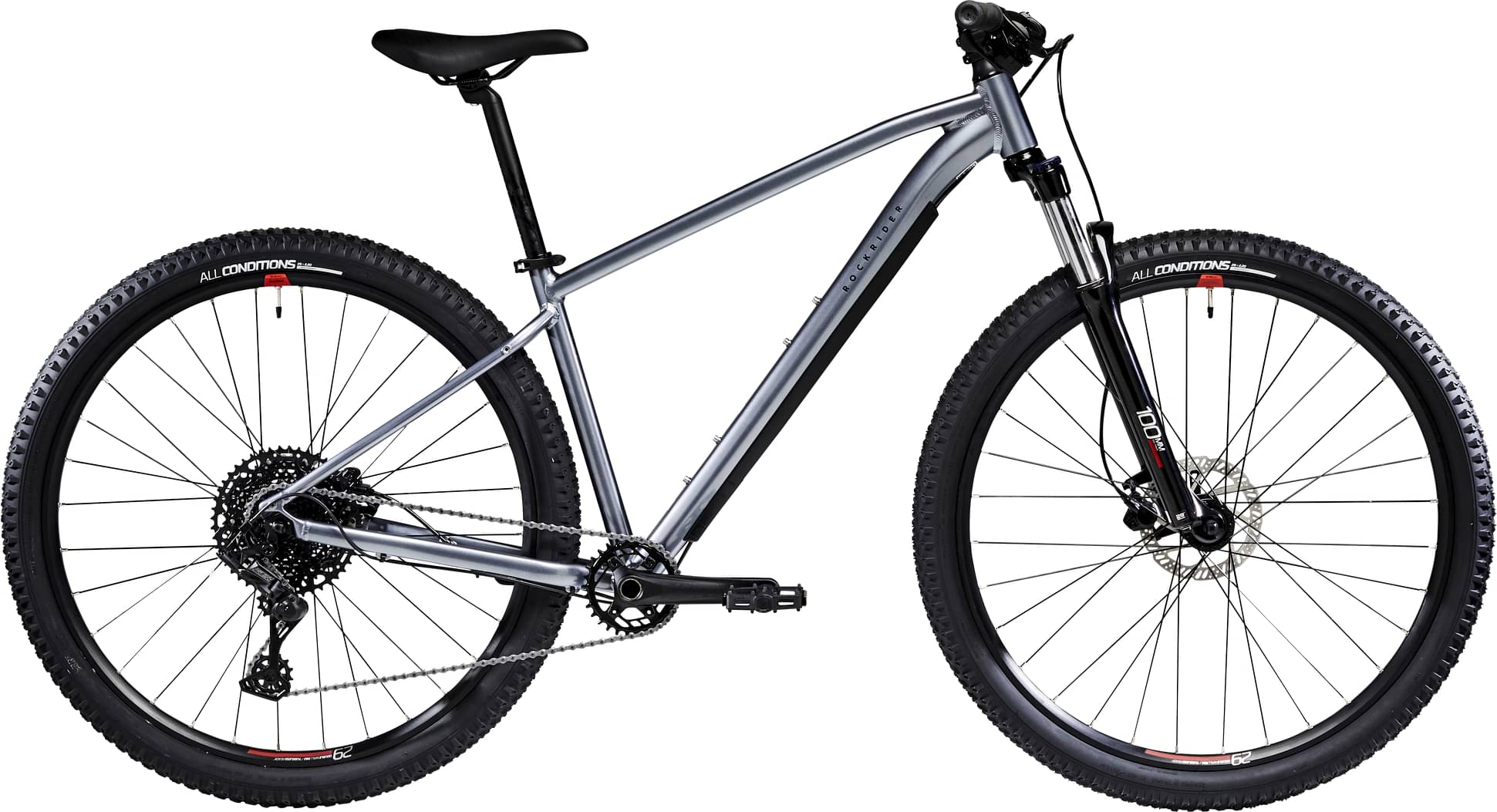

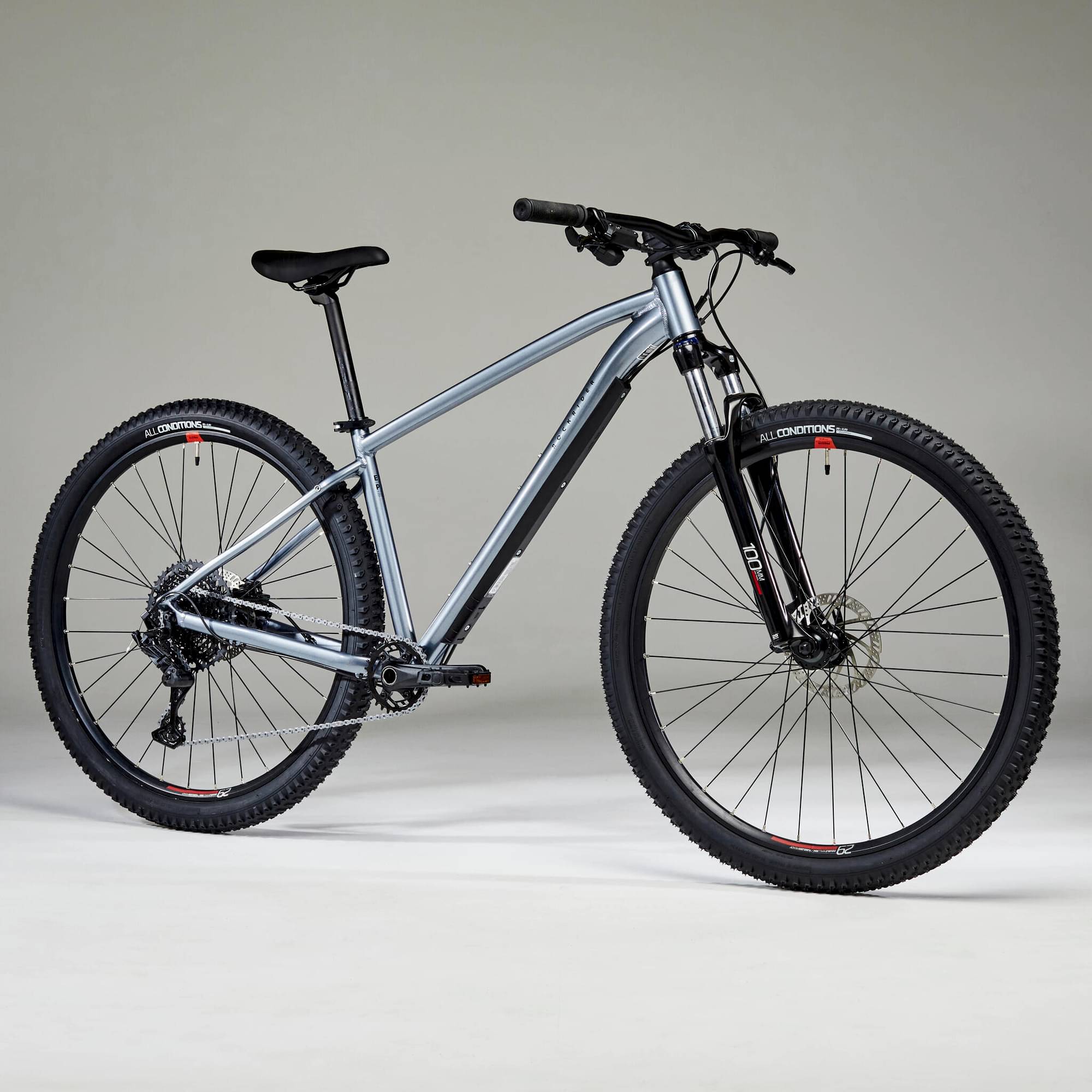

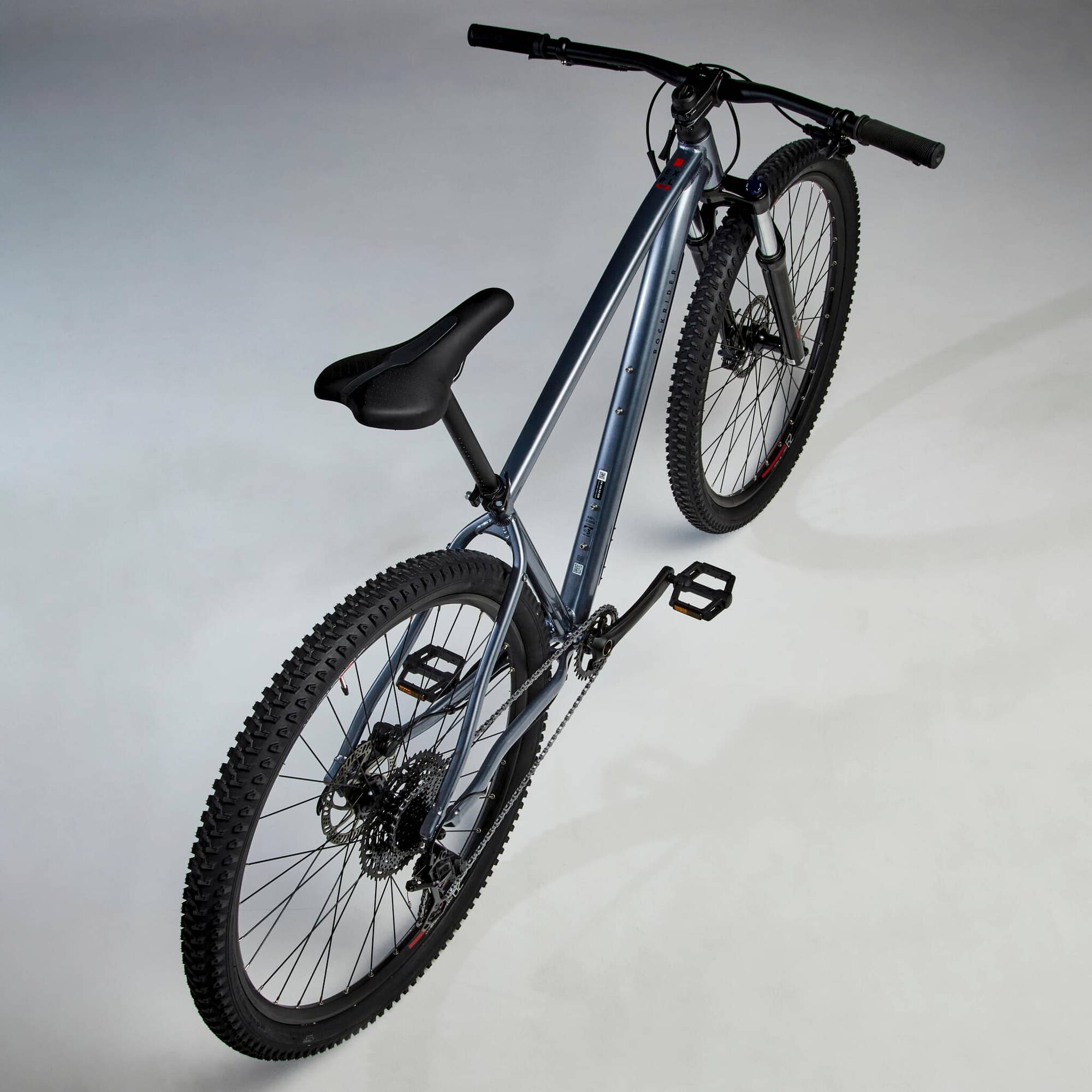

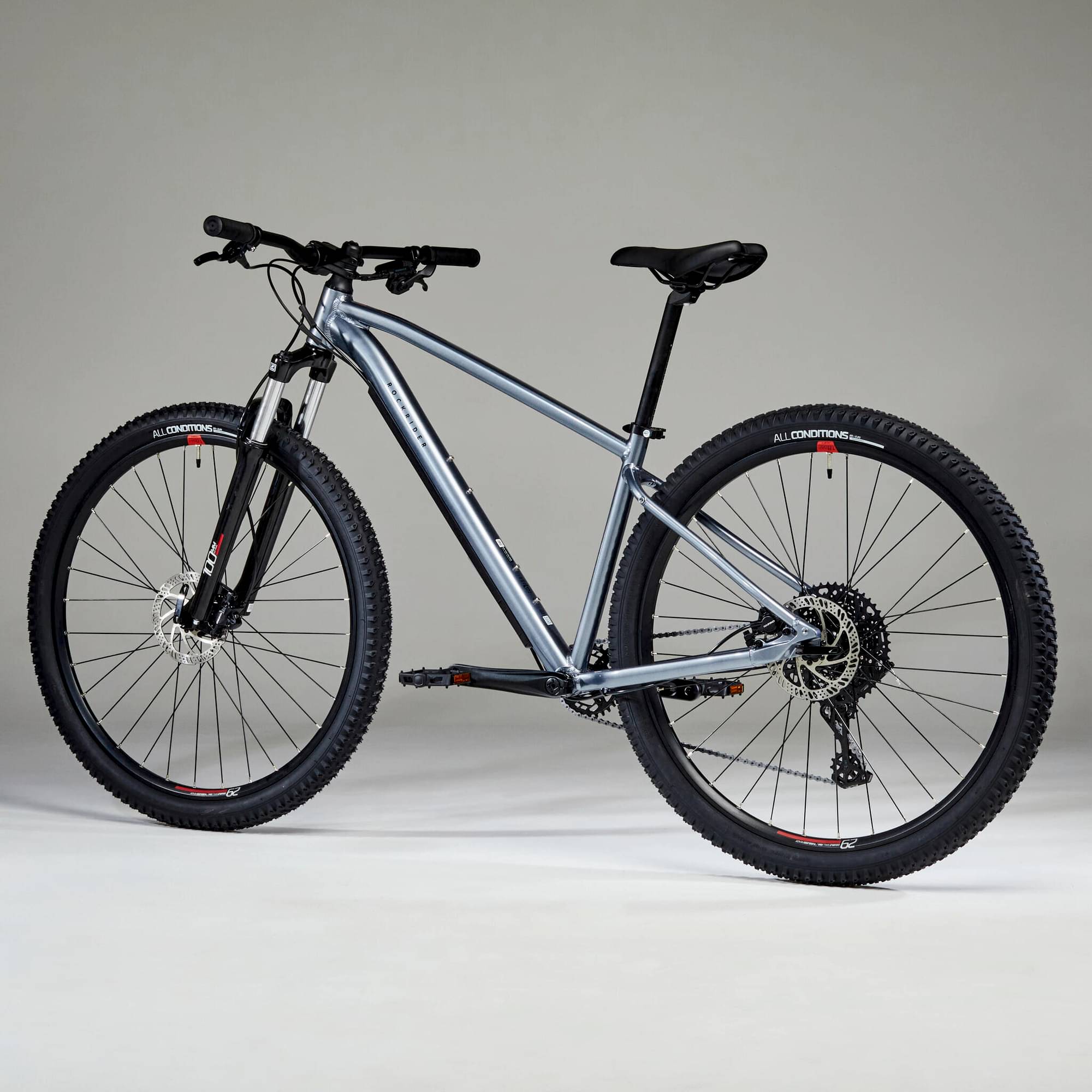

ROCKRIDER 29″ Touring Mountain Bike Explore 520 2023
2023 Road
Estimate price |
735$
Weight | 14.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork Suntour XCM -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

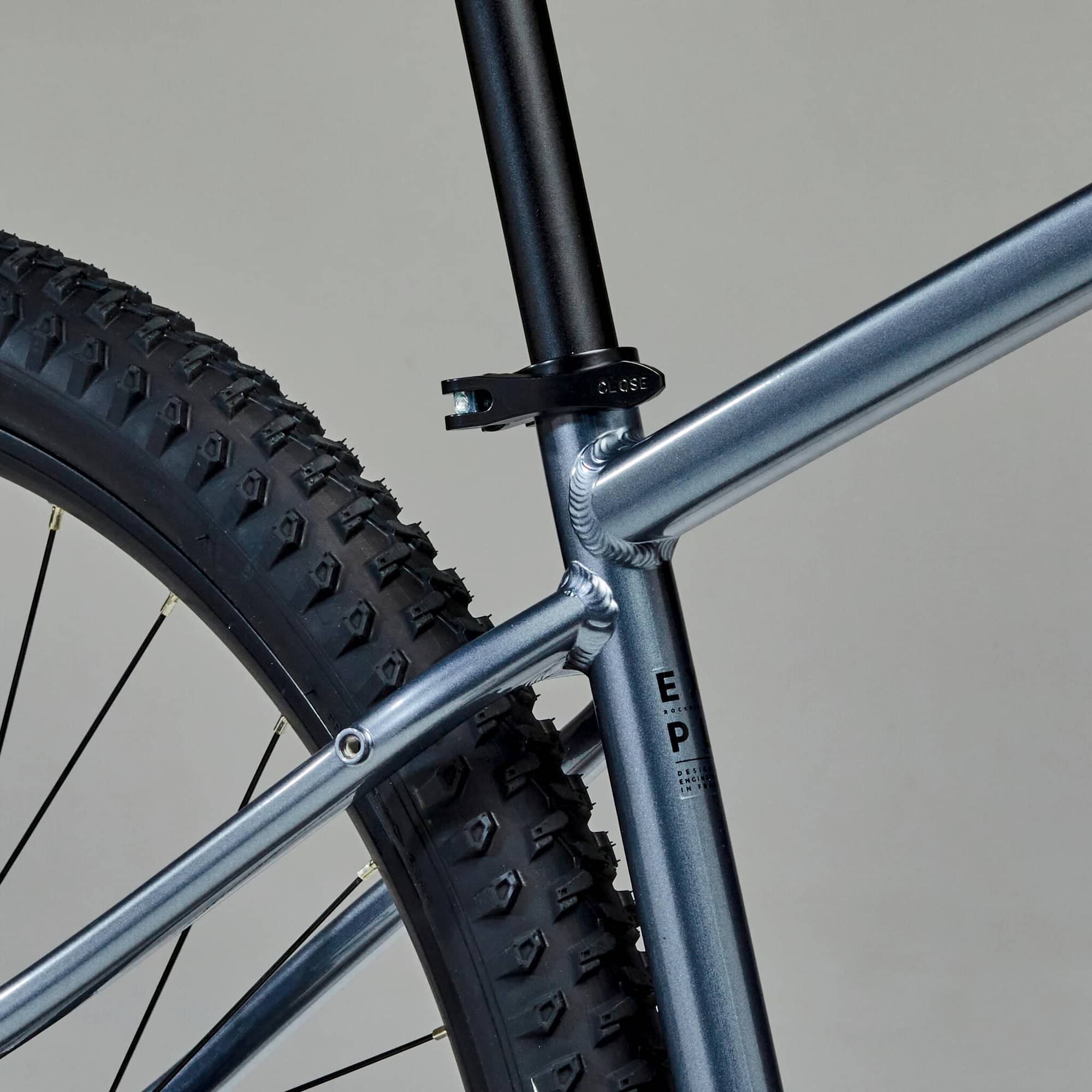

Frame
Frame
Composition: 6061 aluminium 135 mm x 9 mm rear axle QR spindle 73 mm threaded bottom bracket (BSA) Protective cover for housing 27.2 mm seat tube Straight head tube 2 bottle cage mounts (1 on size S) / Pannier rack mounts

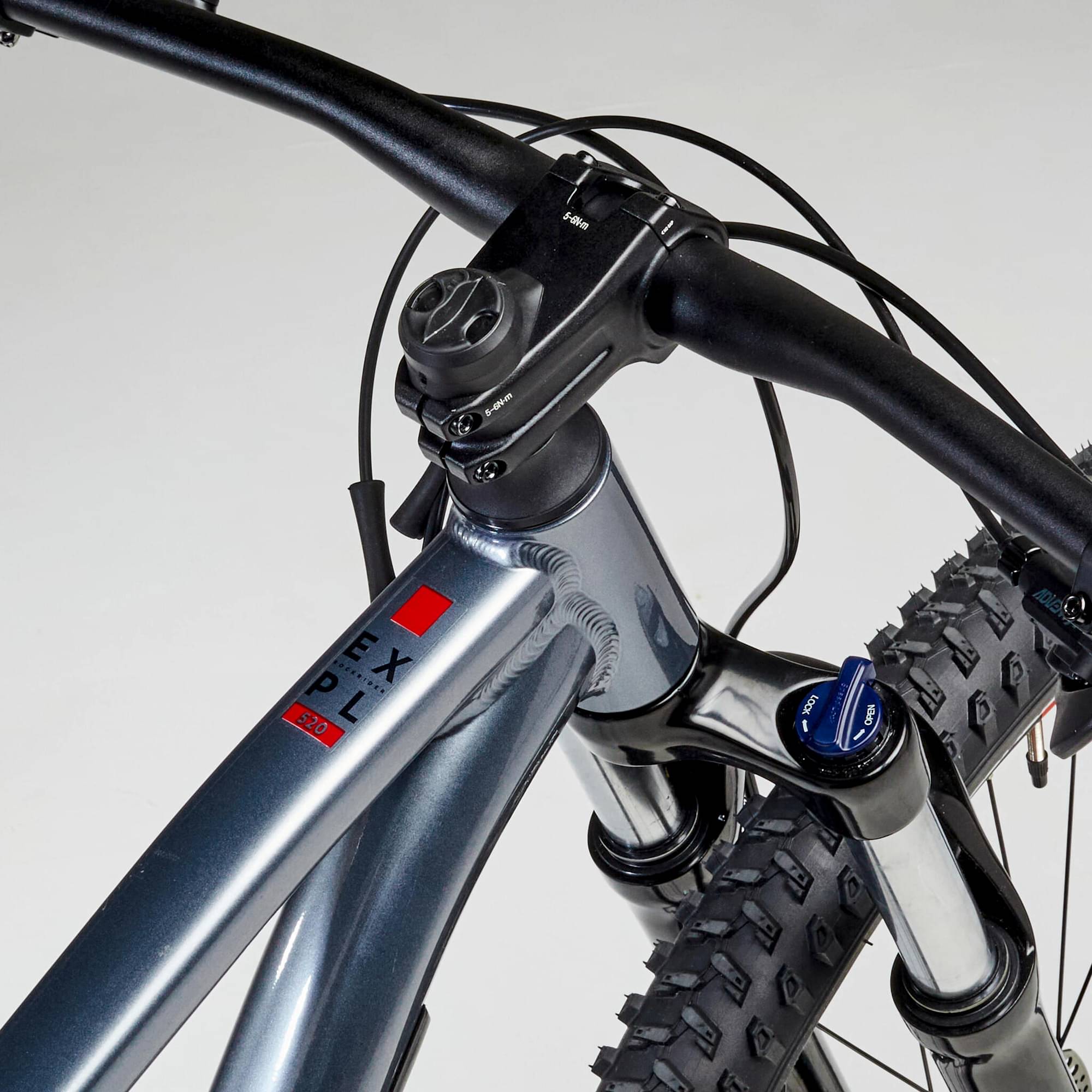

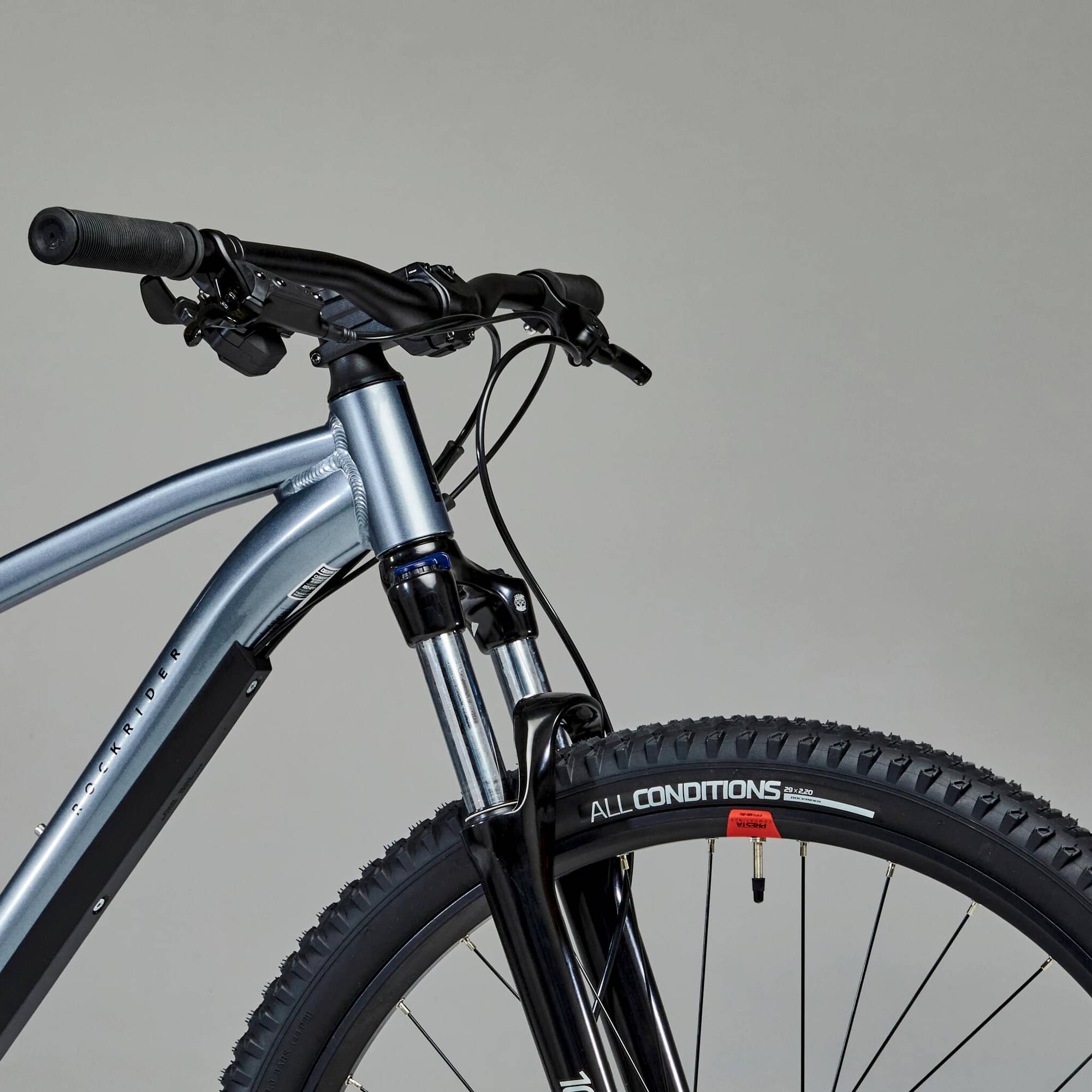

Suspension Fork
Suntour XCM fork with alu steerer tube Coil spring with hydraulic cartridge 100 mm travel 30 mm diameter stanchion QR axle 9 x 100 mm Turnkey lockout on the fork

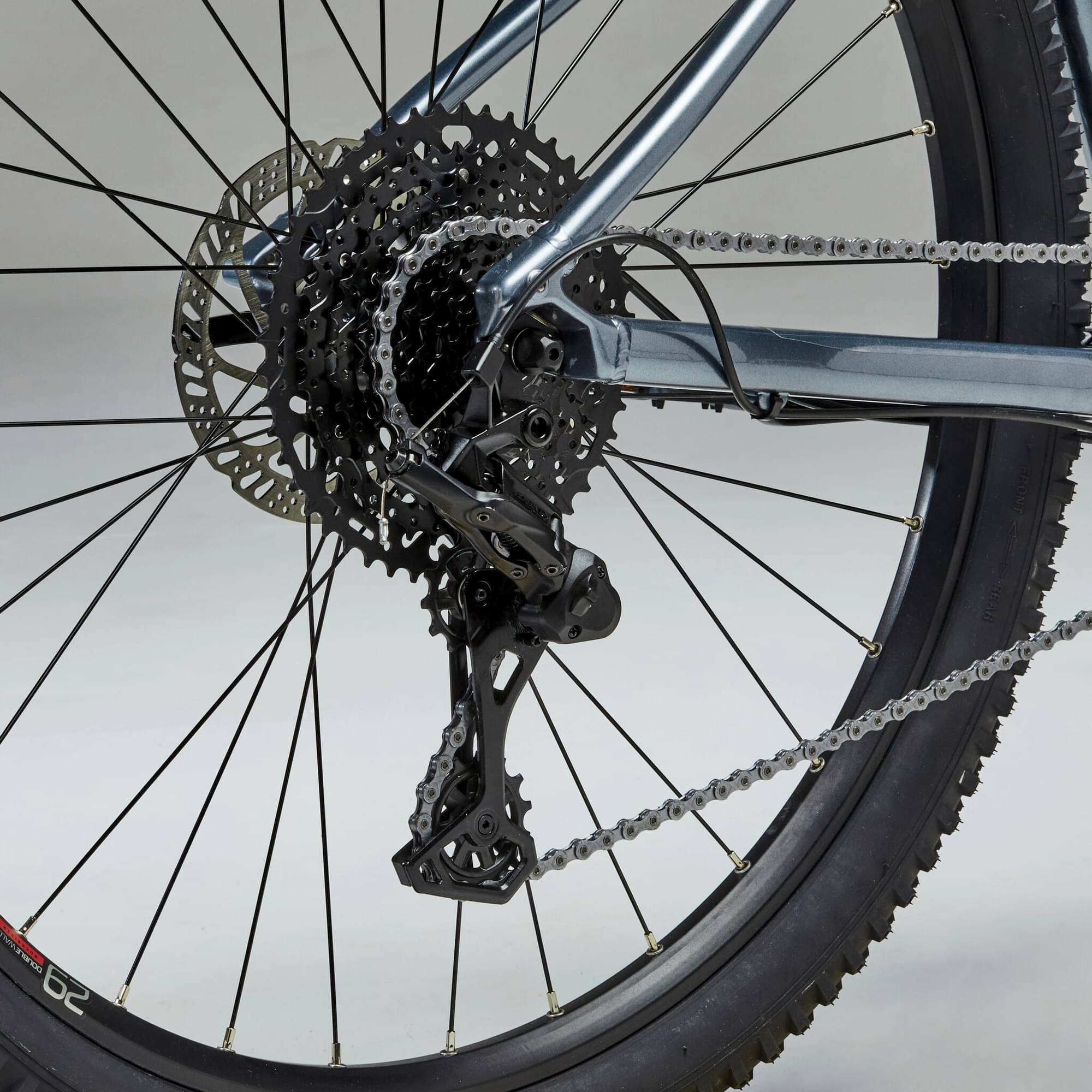

Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Pedals
Rockrider 520 Grip resin flat pedals
Wheels

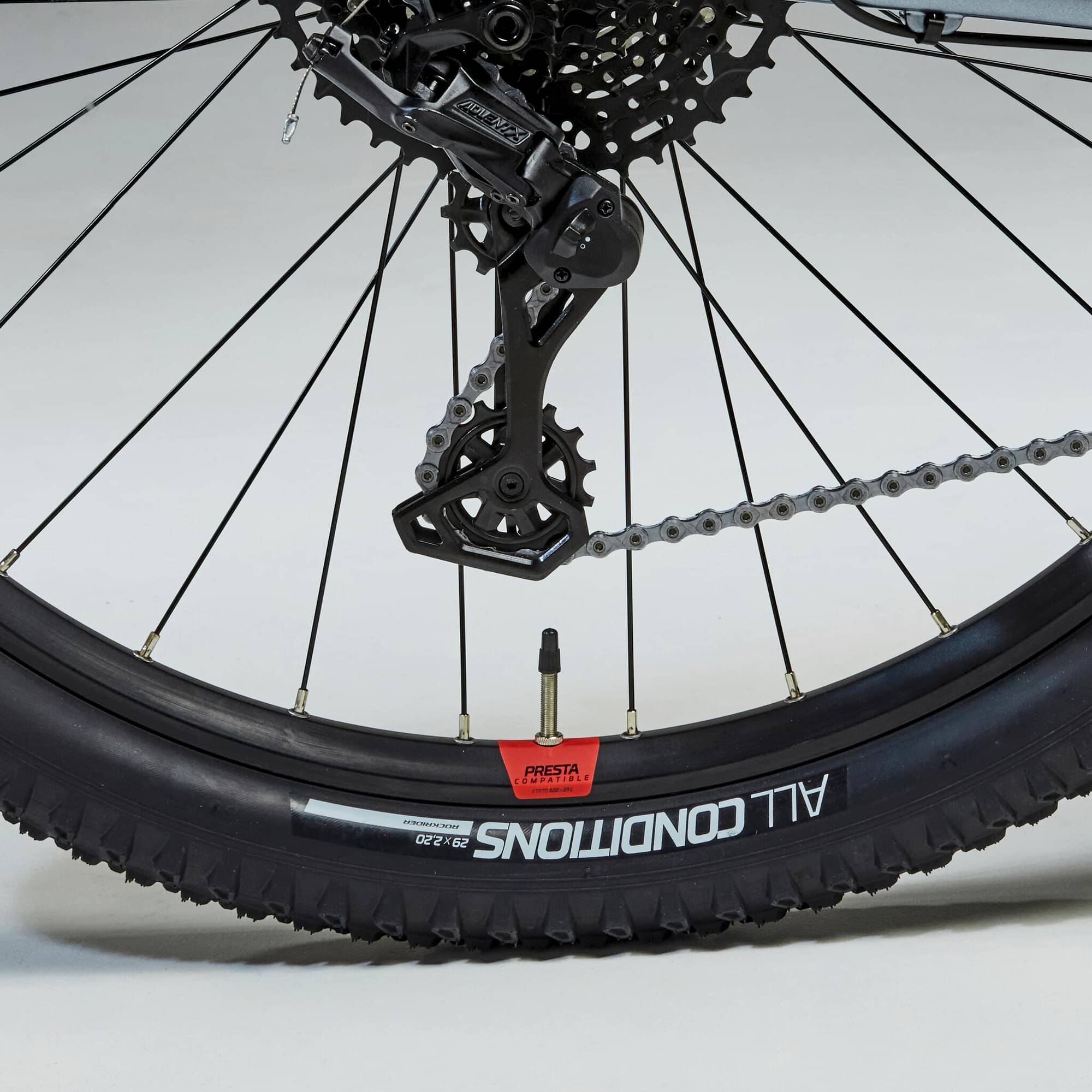

Rims
29" (M / L / XL), 27.5" (S) Tubeless ready rims, Presta valve 23 mm inner width (28 mm outer) 32 spokes (M / L / XL), 28 spokes (S) 6-bolt disc Shimano/SRAM freehub
Tires
Rockrider All Conditions 29"x2.2" (M / L / XL), 27.5"x2.2" (S) Carcass: 60 TPI
Brakes
Brakes
Hydraulic disc brakes Tektro TK-M276 Number of pistons: 2 Front disc: 160 mm Rear disc: 160 mm Adjustable reach: Yes
Fit data

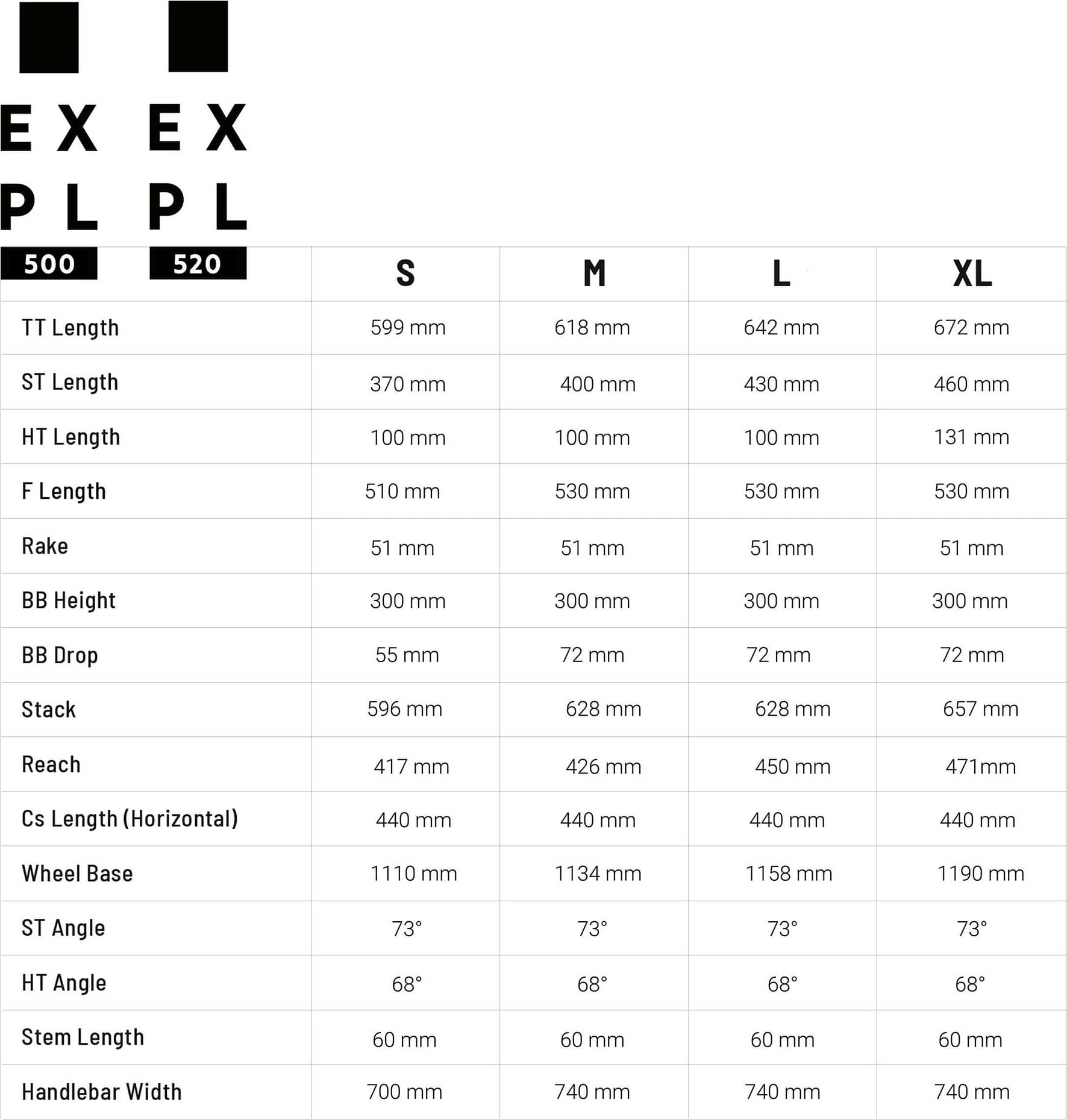

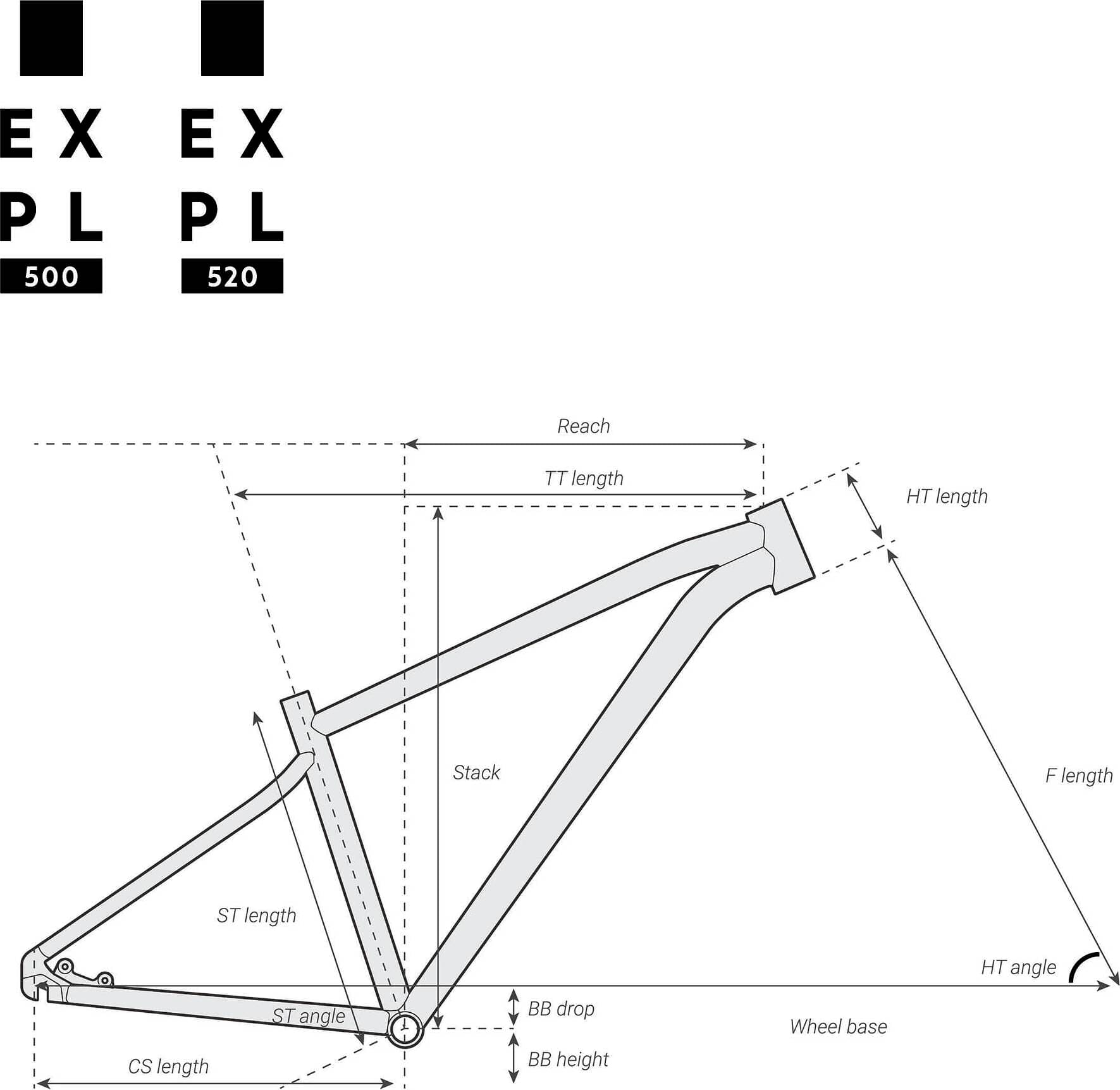

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
29″ Touring Mountain Bike Explore 520 completes the Rockrider Touring model. ROCKRIDER released 5 bikes variations of this model so far. Take a sneak peek at all Rockrider Touring bikes models from 2023, by clicking here.
Model range prices
ROCKRIDER 29″ Touring Mountain Bike Explore 520 2023 is the most affordable bike of this model and has a price of 668$. On the other hand, ROCKRIDER 29″ Touring Mountain Bike Explore 540 2023, is the most expensive and costs 911$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Touring bikes average price
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, this doesn’t mean that if you spend less money on a Touring bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 668$. Comparing this to the average Touring bike price, we see that the price is 50.75% lower.
Touring bikes average weight
Touring bikes have an average weight of 13.35 kg (29.43 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.15 kg (31.2 lbs), the 29″ Touring Mountain Bike Explore 520 model is a bit heavier than average. In conclusion, the average Touring bike weighs 5.99% less than 29″ Touring Mountain Bike Explore 520.
Overview of components
Fork
ROCKRIDER 29″ Touring Mountain Bike Explore 520 2023 bike is equipped with the Suntour XCM fork, and has mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The wheels on 29″ Touring Mountain Bike Explore 520 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The 29″ Touring Mountain Bike Explore 520 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
ROCKRIDER 29″ Touring Mountain Bike Explore 520 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
