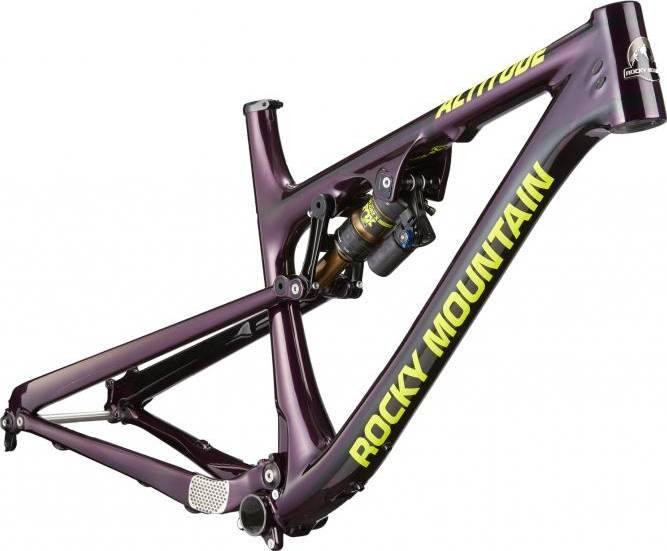

Rocky Mountain Altitude 790 MSL RE Frame 2016
2016 Mountain
Estimate price |
3,099$
Weight | 2.8 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smoothwall Carbon. ABC + BC2 Pivots & Grease Ports. Press Fit BB. Internal Cable Routing. ISCG05 Tabs. RIDE-9 Adjustable Geometry + Suspension Rate
Suspension Fork
160mm Max
Rear Shock
Fox Float X DPS Kashima Remote Custom Valved. SmoothLink Design 150mm. Rebound / Remote Firm - Medium - Open Settings / Bottom Out Control / EVOL Air Sleeve
Drivetrain
Front Derailleur
E Type Low Direct Mount S3 + ISCG 05 (not included)
Bottom Bracket
Press Fit BB92 (not included)
Cockpit
Headset
IS42mm Top / 52mm Bottom
Seat
Seatpost
30.9mm (not included)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.46 mm | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm | 365 mm | 365 mm |
| Front Center | 667 mm | 692 mm | 714 mm | 735 mm | 761 mm |
| Rake | 40 mm | 38 mm | 38 mm | 39 mm | 38 mm |
| Trail | 110 mm | 112 mm | 112 mm | 111 mm | 112 mm |
| Stack | 575 mm | 585 mm | 594 mm | 603 mm | 617 mm |
| Reach | 368 mm | 390 mm | 408 mm | 425 mm | 446 mm |
| Top Tube Length | 538 mm | 563 mm | 583 mm | 603 mm | 628 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 483 mm | 521 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1093 mm | 1118 mm | 1140 mm | 1161 mm | 1187 mm |
| Bottom Bracket Drop | -10 mm | -10 mm | -10 mm | -10 mm | -10 mm |
| Standover Height | 732 mm | 732 mm | 732 mm | 732 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Altitude 790 MSL RE Frame is part of the Rockymountain Altitude model. There are 88 frames that carry this model name. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
Rocky Mountain Altitude 799 MSL Frame 2016 is the most affordable frame of this model and has a price of 2899$. On the other hand, Rocky Mountain Altitude 790 MSL RE Frame 2016, is the most expensive and costs 3099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro frames
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2016 and its price was 3099$. Comparing the average cost of an Enduro frame to this one, you will see that Altitude 790 MSL RE Frame price is 63.54% higher.
Enduro frames average weight
On a deeper look, we notice that the average weight of an Enduro frame is 3.43 kg (7.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Rocky Mountain Altitude 790 MSL RE Frame it’s weighing 2.8 kg (6.17 lbs). At this weight, is much lighter than average. In other words, this model is 22.5% lighter than the average Enduro frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
As for the rear shock, this frame has the Fox Float X DPS Kashima Remote model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
Rocky Mountain Altitude 790 MSL RE Frame frame has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
