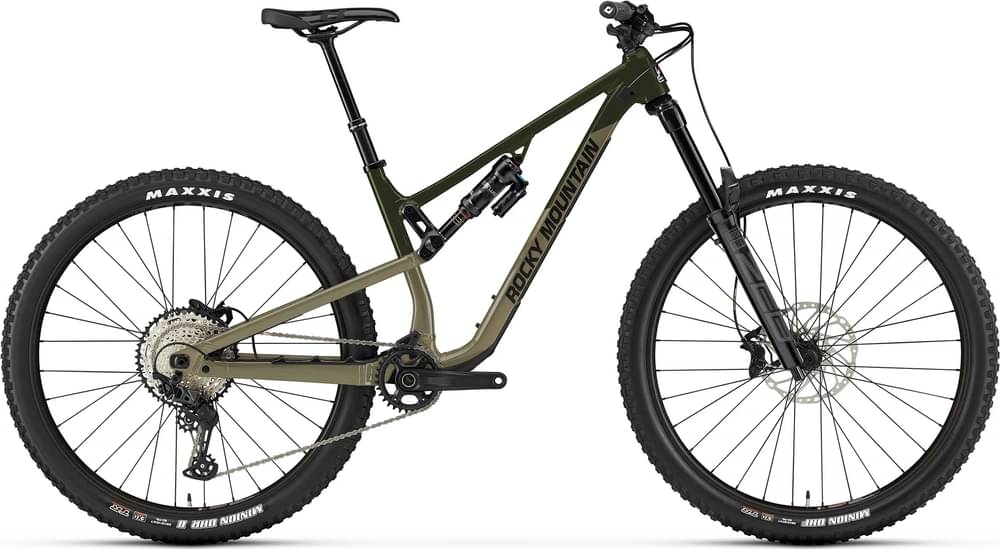

Rocky Mountain Altitude Alloy 30 2022
2022 Mountain
Estimate price |
3,839$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB Select
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Steep
155cm - 167cm
SM Neutral
155cm - 167cm
SM Slack
155cm - 167cm
MD Neutral
165cm - 175cm
MD Steep
165cm - 175cm
MD Slack
165cm - 175cm
MD Steep
167cm - 177cm
MD Neutral
167cm - 177cm
MD Slack
167cm - 177cm
LG Steep
175cm - 188cm
LG Neutral
175cm - 188cm
LG Slack
175cm - 188cm
XL Steep
185cm - 198cm
XL Neutral
185cm - 198cm
XL Slack
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 160mm Travel. FORM™ Alloy Rear Triangle
Suspension Fork
RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset
Rear Shock
RockShox Super Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
Drivetrain
Rear Derailleur
Shimano Deore 12spd
Shift Levers
Shimano Deore 12spd
Cassette
Shimano Deore 10-51T 12spd
Crank
Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length
Bottom Bracket
FSA BB92 24mm
Chain
Shimano M6100
Wheels
Front Hub
Shimano MT410 | 15mm Boost
Rear Hub
Shimano MT410 Boost 148mm
Rims
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape and Valves Incl
Spokes
2.0 Stainless
Tires
F - Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | R - Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready
Brakes
Brakes
Shimano MT4120 4 Piston | Resin Pads
Cockpit
Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m
Handlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
ODI Elite Pro Lock On
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Volt 142
Seatpost
Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Steep | SM Neutral | SM Slack | MD Neutral | MD Steep | MD Slack | MD Steep | MD Neutral | MD Slack | LG Steep | LG Neutral | LG Slack | XL Steep | XL Neutral | XL Slack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.42 mm | 1.33 mm | 1.31 mm | 1.36 mm | 1.34 mm | 1.37 mm | 1.39 mm | 1.3 mm | 1.32 mm | 1.35 mm | 1.25 mm | 1.27 mm | 1.3 mm |
| Bottom Bracket Height | 351 mm | 343 mm | 335 mm | 343 mm | 350 mm | 336 mm | 355 mm | 347 mm | 340 mm | 355 mm | 347 mm | 340 mm | 355 mm | 347 mm | 340 mm |
| Front Center | 744 mm | 744 mm | 745 mm | 772 mm | 772 mm | 774 mm | 781 mm | 781 mm | 782 mm | 813 mm | 813 mm | 813 mm | 849 mm | 849 mm | 75 mm |
| Rake | 36 mm | 38 mm | 39 mm | 36 mm | 36 mm | 37 mm | 43 mm | 45 mm | 45 mm | 44 mm | 45 mm | 44 mm | 44 mm | 45 mm | -661 mm |
| Trail | 122 mm | 124 mm | 127 mm | 126 mm | 122 mm | 129 mm | 123 mm | 125 mm | 130 mm | 122 mm | 125 mm | 131 mm | 122 mm | 125 mm | 912 mm |
| Stack | 588 mm | 593 mm | 598 mm | 603 mm | 598 mm | 607 mm | 613 mm | 617 mm | 621 mm | 626 mm | 631 mm | 635 mm | 640 mm | 644 mm | 649 mm |
| Reach | 434 mm | 427 mm | 420 mm | 452 mm | 458 mm | 446 mm | 458 mm | 452 mm | 446 mm | 483 mm | 477 mm | 471 mm | 513 mm | 507 mm | 501 mm |
| Top Tube Length | 574 mm | 576 mm | 577 mm | 600 mm | 602 mm | 604 mm | 605 mm | 607 mm | 608 mm | 634 mm | 635 mm | 637 mm | 667 mm | 668 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 75.4 ° | 76 ° | 76.5 ° | 75.4 ° | 76.5 ° | 76 ° | 75.4 ° | 76.5 ° | 76 ° | 75.4 ° | 76.5 ° | 76 ° | 75.4 ° |
| Seat Tube Length | 380 mm | 380 mm | 380 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 445 mm | 445 mm | 445 mm | 480 mm | 480 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 64.4 ° | 65 ° | 65.5 ° | 64.4 ° | 65.5 ° | 65 ° | 64.4 ° | 65.5 ° | 65 ° | 64.4 ° | 65.5 ° | 65 ° | 64.4 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 95 mm | 95 mm | 95 mm | 110 mm | 110 mm | 110 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 422 mm | 424 mm | 425 mm | 424 mm | 423 mm | 425 mm | 433 mm | 434 mm | 435 mm | 433 mm | 434 mm | 435 mm | 433 mm | 434 mm | 435 mm |
| Wheelbase | 1166 mm | 1168 mm | 1169 mm | 1196 mm | 1195 mm | 1198 mm | 1213 mm | 1214 mm | 1215 mm | 1245 mm | 1246 mm | 1246 mm | 1281 mm | 1282 mm | 501 mm |
| Bottom Bracket Drop | 4 mm | 12 mm | 20 mm | 12 mm | 5 mm | 19 mm | 19 mm | 27 mm | 34 mm | 19 mm | 27 mm | 34 mm | 19 mm | 27 mm | 34 mm |
| Standover Height | 771 mm | 768 mm | 764 mm | 801 mm | 809 mm | 794 mm | 816 mm | 813 mm | 810 mm | 816 mm | 813 mm | 810 mm | 816 mm | 813 mm | 810 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 155 cm | 165 cm | 165 cm | 165 cm | 167 cm | 167 cm | 167 cm | 175 cm | 175 cm | 175 cm | 185 cm | 185 cm | 185 cm |
| Rider Max Height | 167 cm | 167 cm | 167 cm | 175 cm | 175 cm | 175 cm | 177 cm | 177 cm | 177 cm | 188 cm | 188 cm | 188 cm | 198 cm | 198 cm | 198 cm |
Model Overview
Altitude Alloy 30 belongs to the Rockymountain Altitude model. There are 88 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Rocky Mountain Altitude Alloy 30 2022 is the most economical model, with a starting price of 3839$. Rocky Mountain Altitude Carbon 90 Rally Edition 2022 on the other hand costs 10229$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 3839$. Comparing the average cost of an Enduro bike to this one, you will see that Altitude Alloy 30 price is 6.67% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The RockShox ZEB Select is included from the factory. It has a travel distance of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Altitude Alloy 30 has a rear shock with a travel of 160mm. The model RockShox Super Deluxe Select+ | Sealed is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Altitude Alloy 30 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 15 sizes. They vary from 155 cm – 198 cm (5.09 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
