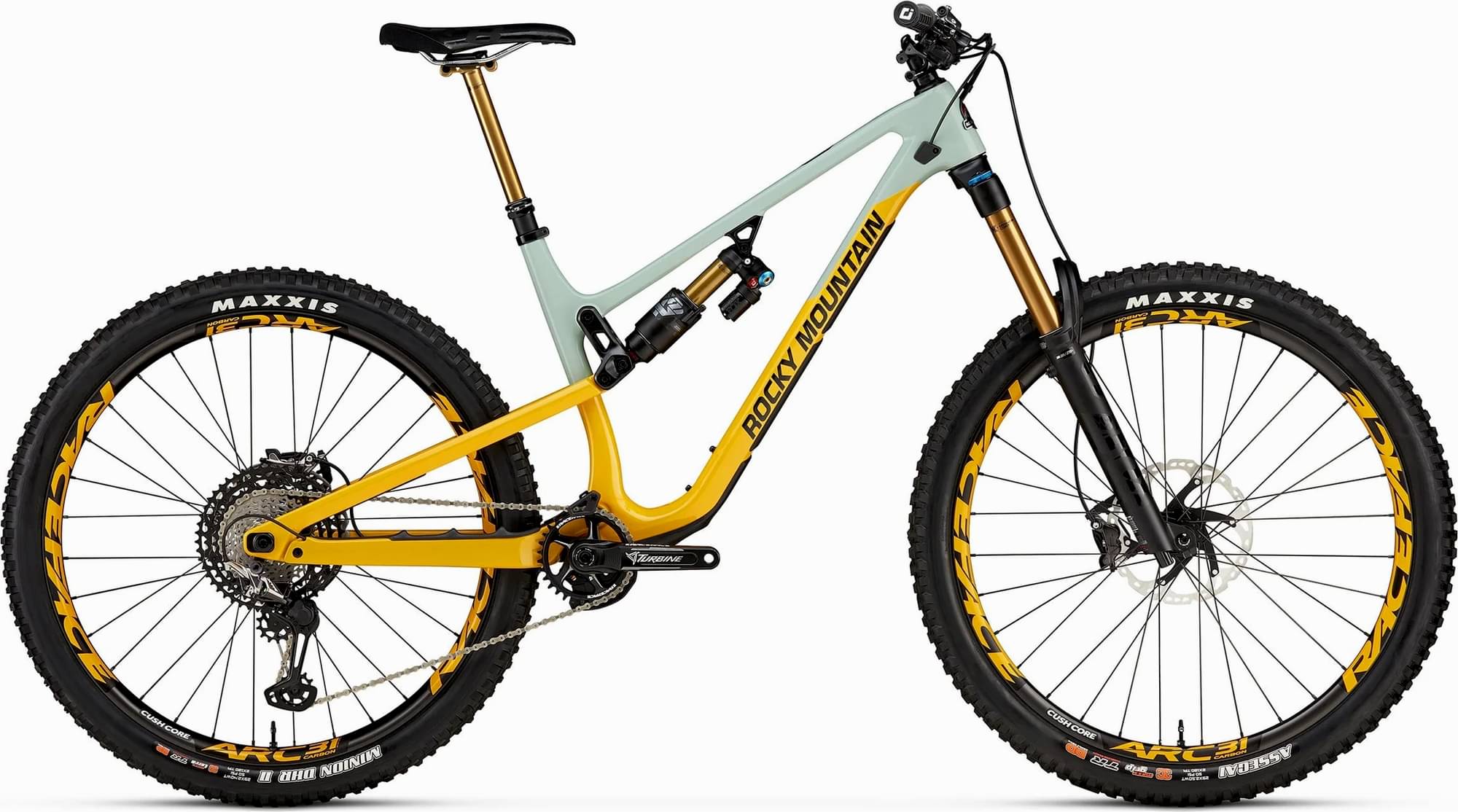

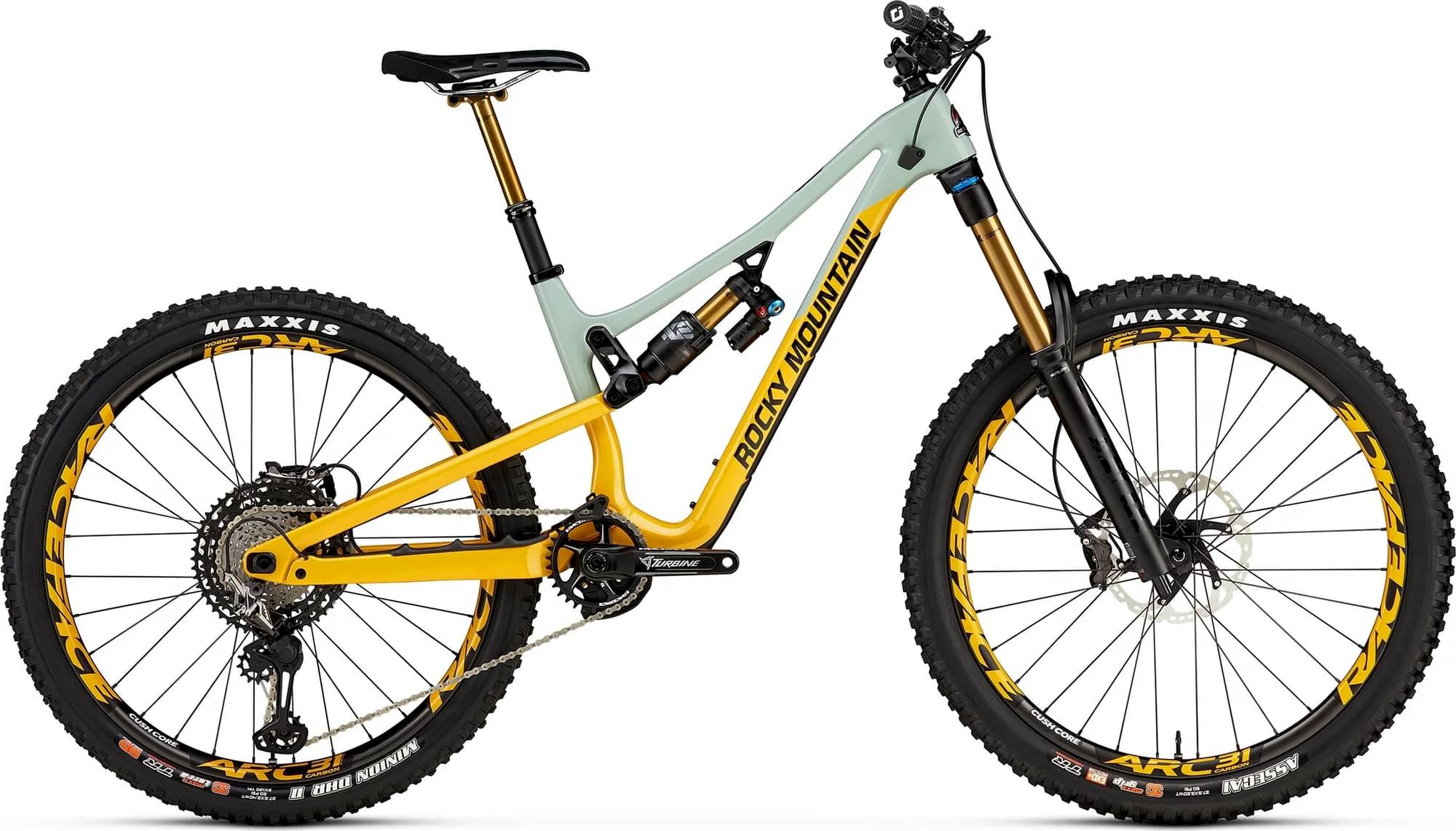

Rocky Mountain Altitude Carbon 90 Rally Edition 2023

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Mountain
- |
- Enduro
Frame Carbon
Wheels 27.5"
Travel Front 170mm
Travel Rear 160mm
Fork Fox Factory Float 38
Groupset XTR, Race Face
Suspension Full
Drivetrain 1 × 12
Brakes Hydraulic Disc

Sizing

Recommended size guide.

SM Steep
155cm - 167cm
SM Neutral
155cm - 167cm
SM Slack
155cm - 167cm
MD Neutral
165cm - 175cm
MD Steep
165cm - 175cm
MD Slack
165cm - 175cm
MD Steep
167cm - 177cm
MD Neutral
167cm - 177cm
MD Slack
167cm - 177cm
LG Steep
175cm - 188cm
LG Neutral
175cm - 188cm
LG Slack
175cm - 188cm
XL Steep
185cm - 198cm
XL Neutral
185cm - 198cm
XL Slack
185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Suspension Fork

Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset

Rear Shock

Drivetrain

Rear Derailleur

Shimano XTR

Shift Levers

Shimano XTR

Cassette

Shimano XTR 12s 10-51T

Crank

Race Face Turbine Cinch | 32T | 30mm Spindle | 170mm Crank Length

Bottom Bracket

Race Face BB92 30mm

Chain

Shimano XTR 12s

Wheels

Front Hub

DT Swiss 350 Boost 15mm

Rear Hub

DT Swiss 350 Boost 148mm | 36T Star-Ratchet

Rims

Spokes

DT Swiss Competition 2.0/1.8/2.0

Tires

F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready

Brakes

Shimano XTR Trail 4 Piston | IceTec Metal Pads | F:Shimano RT86 203mm | R:Shimano RT86 203mm

Cockpit

Stem

Race Face Turbine R | 0° Rise | All Sizes = 40mm

Handlebar

Grips

ODI Elite Pro Lock On

Headset

FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Seat

Saddle

WTB Volt Race 142

Seatpost

Fox Transfer Factory Series 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM Steep	SM Neutral	SM Slack	MD Neutral	MD Steep	MD Slack	MD Steep	MD Neutral	MD Neutral	MD Slack	MD Slack	LG Steep	LG Neutral	LG Neutral	LG Slack	LG Slack	XL Steep	XL Neutral	XL Neutral	XL Slack	XL Slack
Stack Reach Ratio	1.35 mm	1.39 mm	1.42 mm	1.33 mm	1.31 mm	1.36 mm	1.34 mm	1.37 mm	1.37 mm	1.39 mm	1.39 mm	1.3 mm	1.32 mm	1.32 mm	1.35 mm	1.35 mm	1.25 mm	1.27 mm	1.27 mm	1.3 mm	1.3 mm
Bottom Bracket Height	351 mm	343 mm	335 mm	343 mm	350 mm	336 mm	355 mm	342 mm	347 mm	335 mm	340 mm	355 mm	342 mm	347 mm	335 mm	340 mm	355 mm	342 mm	347 mm	335 mm	340 mm
Front Center	744 mm	744 mm	745 mm	772 mm	772 mm	774 mm	781 mm	780 mm	781 mm	781 mm	782 mm	813 mm	812 mm	813 mm	812 mm	813 mm	849 mm	848 mm	849 mm	848 mm	849 mm
Rake	36 mm	38 mm	39 mm	36 mm	36 mm	37 mm	43 mm	38 mm	45 mm	38 mm	45 mm	44 mm	39 mm	45 mm	37 mm	44 mm	44 mm	39 mm	45 mm	37 mm	43 mm
Trail	122 mm	124 mm	127 mm	126 mm	122 mm	129 mm	123 mm	124 mm	125 mm	128 mm	130 mm	122 mm	123 mm	125 mm	129 mm	131 mm	122 mm	123 mm	125 mm	129 mm	132 mm
Stack	588 mm	593 mm	598 mm	603 mm	598 mm	607 mm	613 mm	617 mm	617 mm	621 mm	621 mm	626 mm	631 mm	631 mm	635 mm	635 mm	640 mm	644 mm	644 mm	649 mm	649 mm
Reach	434 mm	427 mm	420 mm	452 mm	458 mm	446 mm	458 mm	452 mm	452 mm	446 mm	446 mm	483 mm	477 mm	477 mm	471 mm	471 mm	513 mm	507 mm	507 mm	501 mm	501 mm
Top Tube Length	574 mm	576 mm	577 mm	600 mm	602 mm	604 mm	605 mm	607 mm	607 mm	608 mm	608 mm	634 mm	635 mm	635 mm	637 mm	637 mm	667 mm	668 mm	668 mm	670 mm	670 mm
Seat Tube Angle	76.5 °	76 °	75.4 °	76 °	76.5 °	75.4 °	76.5 °	76 °	76 °	75.4 °	75.4 °	76.5 °	76 °	76 °	75.4 °	75.4 °	76.5 °	76 °	76 °	75.4 °	75.4 °
Seat Tube Length	380 mm	380 mm	380 mm	420 mm	420 mm	420 mm	420 mm	420 mm	420 mm	420 mm	420 mm	445 mm	445 mm	445 mm	445 mm	445 mm	480 mm	480 mm	480 mm	480 mm	480 mm
Head Tube Angle	65.5 °	65 °	64.4 °	65 °	65.5 °	64.4 °	65.5 °	65 °	65 °	64.4 °	64.4 °	65.5 °	65 °	65 °	64.4 °	64.4 °	65.5 °	65 °	65 °	64.4 °	64.4 °
Head Tube Length	100 mm	100 mm	100 mm	110 mm	110 mm	110 mm	95 mm	95 mm	95 mm	95 mm	95 mm	110 mm	110 mm	110 mm	110 mm	110 mm	125 mm	125 mm	125 mm	125 mm	125 mm
Chainstay Length	422 mm	424 mm	425 mm	424 mm	423 mm	425 mm	433 mm	434 mm	434 mm	435 mm	435 mm	433 mm	434 mm	434 mm	435 mm	435 mm	433 mm	434 mm	434 mm	435 mm	435 mm
Wheelbase	1166 mm	1168 mm	1169 mm	1196 mm	1195 mm	1198 mm	1213 mm	1214 mm	1214 mm	1215 mm	1215 mm	1245 mm	1246 mm	1246 mm	1246 mm	1246 mm	1281 mm	1282 mm	1282 mm	1282 mm	1282 mm
Bottom Bracket Drop	4 mm	12 mm	20 mm	12 mm	5 mm	19 mm	19 mm	13 mm	27 mm	20 mm	34 mm	19 mm	13 mm	27 mm	20 mm	34 mm	19 mm	13 mm	27 mm	20 mm	34 mm
Standover Height	771 mm	768 mm	764 mm	801 mm	809 mm	794 mm	816 mm	813 mm	813 mm	810 mm	810 mm	816 mm	813 mm	813 mm	810 mm	810 mm	816 mm	813 mm	813 mm	810 mm	810 mm
Wheels	27"	27"	27"	27"	27"	27"	29"	27"	29"	27"	29"	29"	27"	29"	27"	29"	29"	27"	29"	27"	29"
Rider Min Height	155 cm	155 cm	155 cm	165 cm	165 cm	165 cm	167 cm	cm	167 cm	cm	167 cm	175 cm	cm	175 cm	cm	175 cm	185 cm	cm	185 cm	cm	185 cm
Rider Max Height	167 cm	167 cm	167 cm	175 cm	175 cm	175 cm	177 cm	cm	177 cm	cm	177 cm	188 cm	cm	188 cm	cm	188 cm	198 cm	cm	198 cm	cm	198 cm

Model Overview

Altitude Carbon 90 Rally Edition is part of the Rockymountain Altitude model. Rocky Mountain launched 88 bikes of this model so far. You can easily view all of the Rockymountain Altitude bikes models from 2023, here.

Model range prices

Rocky Mountain Altitude A30 Shimano 2023 is the cheapest bike model and costs 3999$. Rocky Mountain Altitude Carbon 90 Rally Edition 2023 is the most expensive one and costs 9999$.

Safety

Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.

Average price for Enduro bikes

Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.

This bike was released in 2023 and its price was 9999$. Comparing this to the average Enduro bike price, we see that the price is 177.83% higher.

Internal Cable Routing

It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.

Altitude Carbon 90 Rally Edition components

Fork

The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.

Rear Shock

Rocky Mountain Altitude Carbon 90 Rally Edition bike has the Fox Float X2 Factory | Sealed model installed, and has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.

Wheels size

The wheels on Altitude Carbon 90 Rally Edition are the 27.5″ carbon type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The Altitude Carbon 90 Rally Edition comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.

Dropper post

Rocky Mountain Altitude Carbon 90 Rally Edition comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
