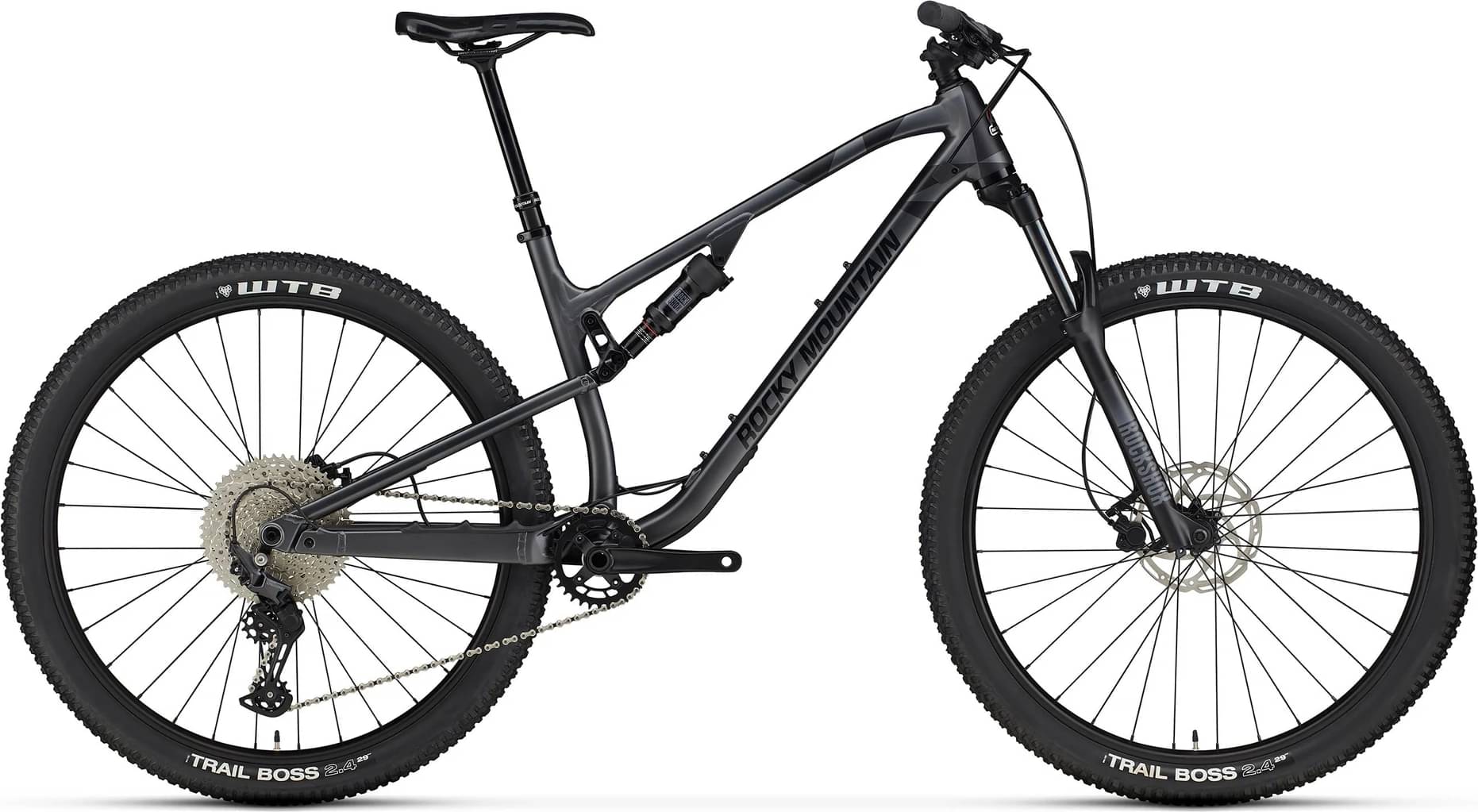

Rocky Mountain Element Alloy 10 2022
2022 Mountain
Estimate price |
2,559$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Judy
-
Groupset Deore, SRAM -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Steep
142cm - 159cm
XS Slack
142cm - 159cm
SM Steep
156cm - 170cm
SM Slack
156cm - 170cm
MD Steep
167cm - 177cm
MD Slack
167cm - 177cm
LG Steep
175cm - 188cm
LG Slack
175cm - 188cm
XL Steep
185cm - 198cm
XL Slack
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-4™ Adjustable Geometry. 120mm Travel. FORM™ Alloy Rear Triangle
Suspension Fork
RockShox Judy Silver 130mm | 27.5 = 42mm Offset | 29 = 51mm Offset
Rear Shock
RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm |Size-Specific tune in FAQ
Drivetrain
Rear Derailleur
Shimano Deore 11spd
Shift Levers
#N/A
Cassette
SunRace CSMS8 EA1 11-51T
Crank
Rocky Mountain Microdrive | 32T |SRAM 76mm BCD | 24mm Spindle | Crank Length: XS = 165mm | SM - XL = 170mm
Bottom Bracket
Rocky Mountain Sealed BB92 - Shimano Compatible
Chain
KMC X11-1
Wheels
Front Hub
Shimano MT410 | 15mm Boost
Rear Hub
Shimano MT400 Boost 148mm
Rims
Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape | Valves | Sealant Not Incl
Spokes
2.0 Stainless
Tires
F: WTB Ranger Comp 29 x 2.3 | R: WTB Ranger Comp 29 x 2.3 |
Brakes
Brakes
Tektro HD-M275 | Shimano Pad Compatible | F: Tektro 180mm | R: Tektro 180mm
Cockpit
Stem
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50m
Handlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
FSA Orbit NO.57B | 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Volt 142
Seatpost
Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Steep | XS Slack | SM Steep | SM Slack | MD Steep | MD Slack | LG Steep | LG Slack | XL Steep | XL Slack |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.4 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.3 mm | 1.31 mm | 1.24 mm | 1.25 mm |
| Bottom Bracket Height | 336 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm |
| Front Center | 703 mm | 702 mm | 740 mm | 741 mm | 769 mm | 770 mm | 798 mm | 799 mm | 832 mm | 833 mm |
| Rake | 44 mm | 48 mm | 44 mm | 49 mm | 44 mm | 49 mm | 44 mm | 48 mm | 44 mm | 48 mm |
| Trail | 114 mm | 115 mm | 120 mm | 121 mm | 120 mm | 121 mm | 120 mm | 122 mm | 120 mm | 122 mm |
| Stack | 572 mm | 567 mm | 616 mm | 612 mm | 625 mm | 621 mm | 634 mm | 630 mm | 643 mm | 639 mm |
| Reach | 411 mm | 403 mm | 439 mm | 431 mm | 464 mm | 456 mm | 489 mm | 481 mm | 519 mm | 511 mm |
| Top Tube Length | 547 mm | 548 mm | 581 mm | 583 mm | 609 mm | 611 mm | 636 mm | 638 mm | 668 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 75.7 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° |
| Seat Tube Length | 355 mm | 355 mm | 380 mm | 380 mm | 420 mm | 420 mm | 445 mm | 445 mm | 480 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 64.7 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 135 mm | 135 mm |
| Chainstay Length | 431 mm | 432 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm |
| Wheelbase | 1133 mm | 1133 mm | 1179 mm | 1179 mm | 1208 mm | 1208 mm | 1237 mm | 1237 mm | 1271 mm | 1271 mm |
| Bottom Bracket Drop | 19 mm | 28 mm | 36 mm | 47 mm | 36 mm | 47 mm | 36 mm | 47 mm | 36 mm | 47 mm |
| Standover Height | 778 mm | 775 mm | 819 mm | 816 mm | 817 mm | 814 mm | 816 mm | 812 mm | 814 mm | 810 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 156 cm | 156 cm | 167 cm | 167 cm | 175 cm | 175 cm | 185 cm | 185 cm |
| Rider Max Height | 159 cm | 159 cm | 170 cm | 170 cm | 177 cm | 177 cm | 188 cm | 188 cm | 198 cm | 198 cm |
About this model
Element Alloy 10 completes the Rockymountain Element model. Rocky Mountain released 77 bikes variations of this model so far. You can easily view all of the Rockymountain Element bikes models from 2022, here.
Model range prices
Rocky Mountain Element Alloy 10 2022 is the most affordable bike of this model and has a price of 2559$. On the other hand, Rocky Mountain Element Carbon 90 2022, is the most expensive and costs 9589$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 2559$. In conclusion, this bike price is 7.93% smaller than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 15.4 kg (33.95 lbs), the Element Alloy 10 model is much heavier than average. In other words, this model is 18.64% heavier than the average Trail bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Element Alloy 10 components
Fork
The Element Alloy 10 comes factory-installed with the RockShox Judy fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rocky Mountain Element Alloy 10 bike has the RockShox Deluxe Select | Sealed Bearing model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Rocky Mountain Element Alloy 10 2022, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 10 sizes. They vary from 142 cm – 198 cm (4.66 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Element Alloy 10. Therefore, climbing or descending will be a breeze.
