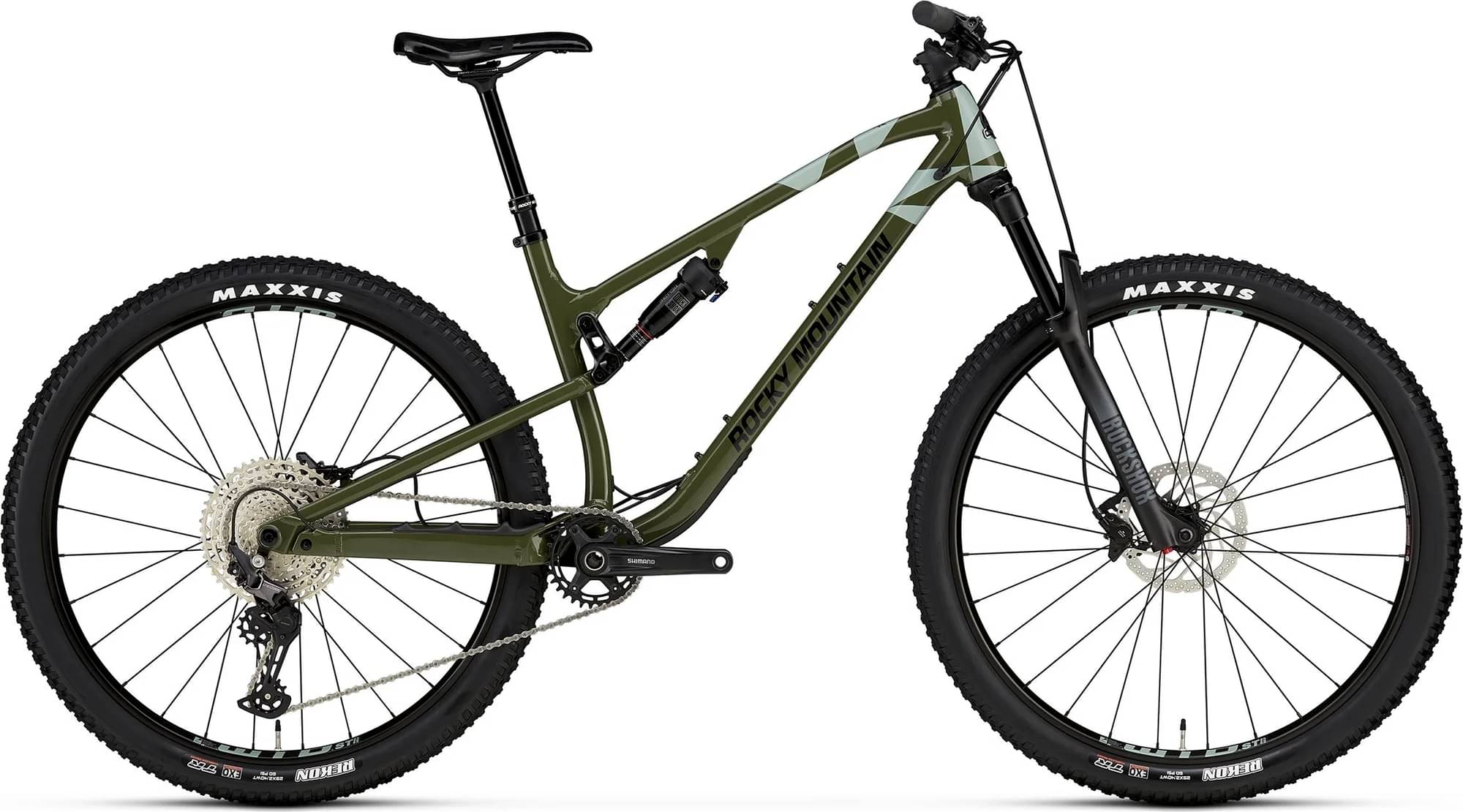

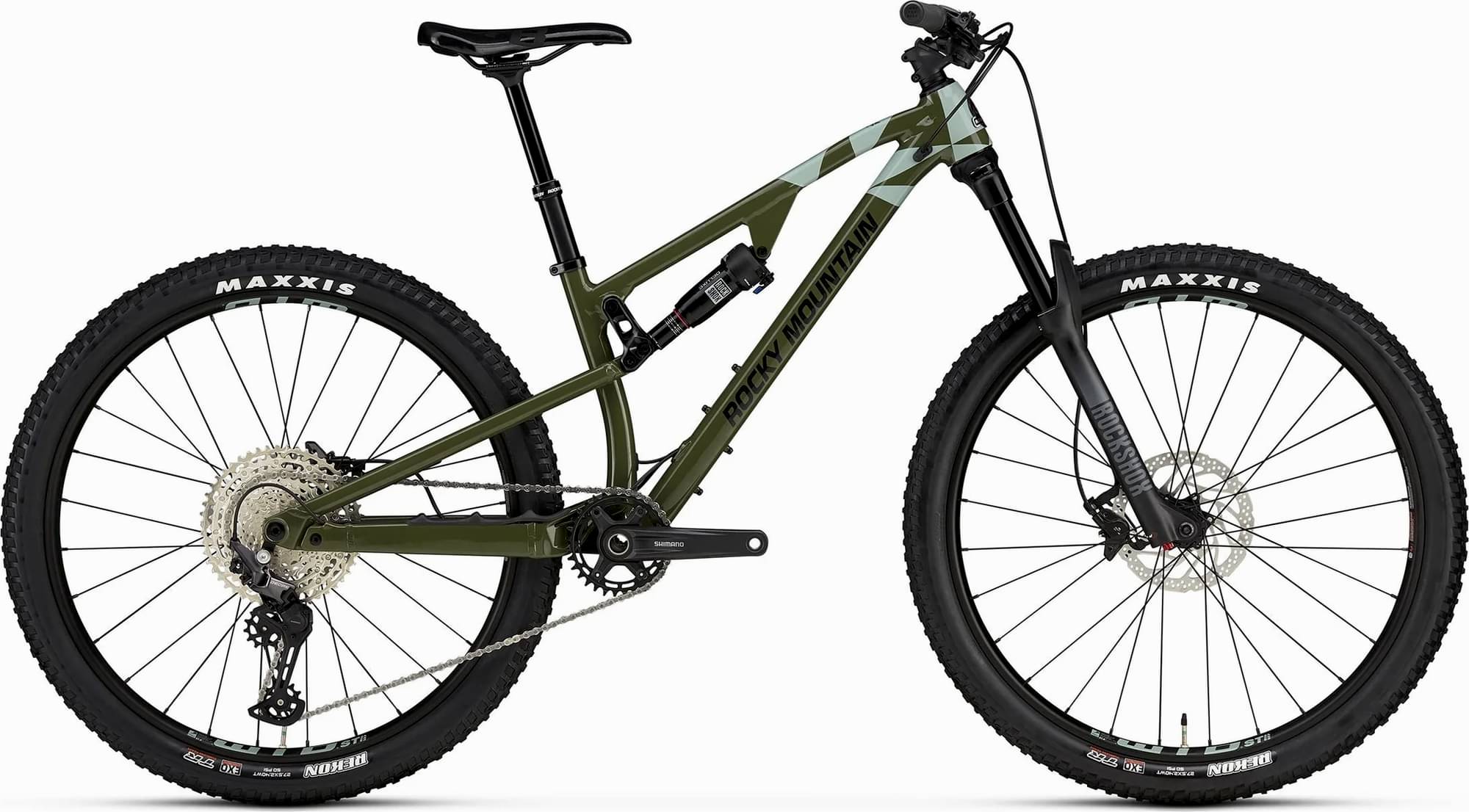

Rocky Mountain Element Alloy 30 2023
2023 Mountain
Estimate price |
3,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Gold RL
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Steep
142cm - 159cm
XS Slack
142cm - 159cm
SM Steep
156cm - 170cm
SM Slack
156cm - 170cm
MD Steep
167cm - 177cm
MD Slack
167cm - 177cm
LG Steep
175cm - 188cm
LG Slack
175cm - 188cm
XL Steep
185cm - 198cm
XL Slack
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel. FORM™ Alloy Rear Triangle
Suspension Fork
RockShox Recon Gold 130mm | 27.5 = 37mm Offset | 29 = 42mm Offset
Rear Shock
RockShox Deluxe Select+ | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm |Size-Specific tune in FAQ
Drivetrain
Rear Derailleur
Shimano Deore 12spd
Shift Levers
Shimano Deore 12spd
Cassette
Shimano Deore 10-51T 12spd
Crank
Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length
Bottom Bracket
Shimano SM-BBMT500
Chain
Shimano M6100
Wheels
Front Hub
Shimano MT410 | 15mm Boost
Rear Hub
Shimano MT410 Boost 148mm
Rims
WTB ST Light i27 TCS 2.0 Tubeless | 28H | Tubeless Ready - Tape / Valves Incl
Spokes
2.0 Stainless
Tires
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready
Brakes
Brakes
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT30 180mm | R:Shimano RT30 180mm
Cockpit
Stem
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50m
Handlebar
Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Volt 142
Seatpost
Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Steep | XS Slack | SM Steep | SM Slack | MD Steep | MD Slack | LG Steep | LG Slack | XL Steep | XL Slack |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.4 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.3 mm | 1.31 mm | 1.24 mm | 1.25 mm |
| Bottom Bracket Height | 336 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm |
| Front Center | 703 mm | 702 mm | 740 mm | 741 mm | 769 mm | 770 mm | 798 mm | 799 mm | 832 mm | 833 mm |
| Rake | 44 mm | 48 mm | 44 mm | 49 mm | 44 mm | 49 mm | 44 mm | 48 mm | 44 mm | 48 mm |
| Trail | 114 mm | 115 mm | 120 mm | 121 mm | 120 mm | 121 mm | 120 mm | 122 mm | 120 mm | 122 mm |
| Stack | 572 mm | 567 mm | 616 mm | 612 mm | 625 mm | 621 mm | 634 mm | 630 mm | 643 mm | 639 mm |
| Reach | 411 mm | 403 mm | 439 mm | 431 mm | 464 mm | 456 mm | 489 mm | 481 mm | 519 mm | 511 mm |
| Top Tube Length | 547 mm | 548 mm | 581 mm | 583 mm | 609 mm | 611 mm | 636 mm | 638 mm | 668 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 75.7 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° |
| Seat Tube Length | 355 mm | 355 mm | 380 mm | 380 mm | 420 mm | 420 mm | 445 mm | 445 mm | 480 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 64.7 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 135 mm | 135 mm |
| Chainstay Length | 431 mm | 432 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm |
| Wheelbase | 1133 mm | 1133 mm | 1179 mm | 1179 mm | 1208 mm | 1208 mm | 1237 mm | 1237 mm | 1271 mm | 1271 mm |
| Bottom Bracket Drop | 19 mm | 28 mm | 36 mm | 47 mm | 36 mm | 47 mm | 36 mm | 47 mm | 36 mm | 47 mm |
| Standover Height | 778 mm | 775 mm | 819 mm | 816 mm | 817 mm | 814 mm | 816 mm | 812 mm | 814 mm | 810 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 156 cm | 156 cm | 167 cm | 167 cm | 175 cm | 175 cm | 185 cm | 185 cm |
| Rider Max Height | 159 cm | 159 cm | 170 cm | 170 cm | 177 cm | 177 cm | 188 cm | 188 cm | 198 cm | 198 cm |
About this model
Element Alloy 30 completes the Rockymountain Element model. 77 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Rocky Mountain Element A10 Shimano 2023 has a starting price of 2699$. Rocky Mountain Element Carbon 90 2023 on the other hand is the most expensive at 9699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Rocky Mountain Element Alloy 30 price was 3299$. In conclusion, this bike price is 19.44% higher than the price of the average Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Element Alloy 30 components
Fork
The Element Alloy 30 comes factory-installed with the RockShox Recon Gold RL fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Deluxe Select+ | Sealed Bearing, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Element Alloy 30 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Rocky Mountain Element Alloy 30 bike has 10 sizes, in the range of 142 cm – 198 cm (4.66 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Element Alloy 30. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
