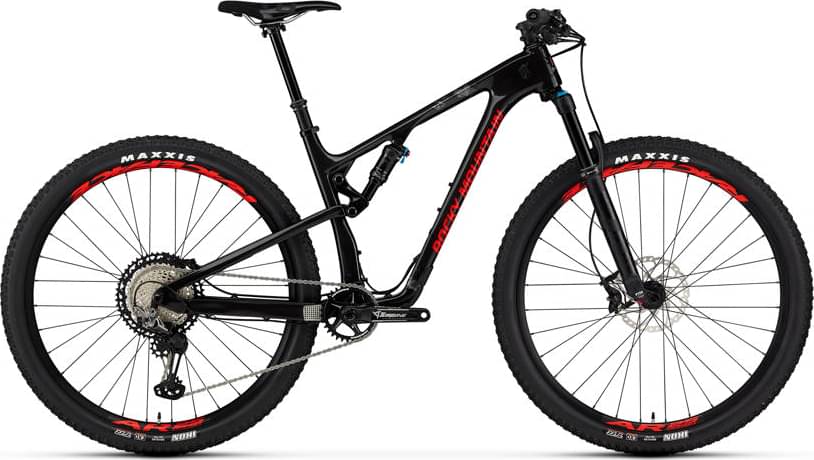

Rocky Mountain Element Carbon 70 2020
2020 Mountain
Estimate price |
5,799$
Weight | 12.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Performance Elite Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-9 Adjustable Geometry + Suspension Rate
Suspension Fork
Fox 34 Step Cast Float Performance Elite 120mm
Rear Shock
Fox Float DPS Performance Elite
Drivetrain
Rear Derailleur
Shimano XTR
Shift Levers
Shimano XT
Cassette
Shimano XT 10-51T
Crank
Race Face Turbine Cinch 32T
Bottom Bracket
Race Face BB92 30mm
Chain
Shimano HG8100
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm
Rims
Race Face AR 25
Spokes
DT Swiss Competition 2.0/1.8/2.0
Tires
Maxxis Ikon Tubeless Ready 29 x 2.35 / Maxxis Ikon Tubeless Ready 29 x 2.35
Brakes
Brakes
Shimano XT 2 Piston / Shimano RT66 180mm / Shimano RT66 160mm
Brake Levers
Shimano XT
Cockpit
Stem
Rocky Mountain 35 AM
Handlebar
Race Face Turbine 760mm
Grips
Rocky Mountain Lock On XC
Headset
FSA Orbit NO.57E
Seat
Saddle
WTB Silverado Race 142
Seatpost
Race Face Turbine R (by Fox) Dropper 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Steep | SM Slack | MD Steep | MD Slack | LG Steep | LG Slack | XL Steep | XL Slack | XXL Steep | XXL Slack |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.54 mm | 1.42 mm | 1.48 mm | 1.38 mm | 1.44 mm | 1.32 mm | 1.37 mm | 1.3 mm | 1.36 mm |
| Bottom Bracket Height | 343 mm | 330 mm | 343 mm | 330 mm | 343 mm | 329 mm | 343 mm | 329 mm | 343 mm | 329 mm |
| Front Center | 673 mm | 674 mm | 699 mm | 700 | 725 mm | 726 mm | 756 mm | 757 mm | 778 mm | 779 mm |
| Rake | 53 mm | 53 mm | 53 mm | 54 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 81 mm | 90 mm | 81 mm | 88 mm | 81 mm | 89 mm | 81 mm | 89 mm | 81 mm | 89 mm |
| Stack | 592 mm | 600 mm | 601 mm | 609 mm | 615 mm | 624 mm | 624 mm | 633 mm | 638 mm | 647 mm |
| Reach | 401 mm | 389 mm | 424 mm | 412 mm | 445 mm | 433 mm | 472 mm | 461 mm | 489 mm | 477 mm |
| Top Tube Length | 558 mm | 561 mm | 583 mm | 586 mm | 608 mm | 611 mm | 638 mm | 642 mm | 658 mm | 662 mm |
| Seat Tube Angle | 75.3 ° | 74.1 ° | 75.3 ° | 74.2 ° | 75.3 ° | 74.2 ° | 75.3 ° | 74.2 ° | 75.3 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm | 508 mm | 508 mm | 546 mm | 546 mm |
| Head Tube Angle | 69.8 ° | 68.6 ° | 69.8 ° | 68.7 ° | 69.8 ° | 68.7 ° | 69.8 ° | 68.7 ° | 69.8 ° | 68.7 ° |
| Head Tube Length | 93 mm | 93 mm | 103 mm | 103 mm | 118 mm | 118 mm | 128 mm | 128 mm | 143 mm | 143 mm |
| Chainstay Length | 431 mm | 433 mm | 431 mm | 433 mm | 431 mm | 433 mm | 431 mm | 433 mm | 431 mm | 433 mm |
| Wheelbase | 1102 mm | 1103 mm | 1128 mm | 1129 mm | 1154 mm | 1155 mm | 1185 mm | 1186 mm | 1207 mm | 1208 mm |
| Bottom Bracket Drop | 31 mm | 44 mm | 31 mm | 44 mm | 31 mm | 45 mm | 31 mm | 45 mm | 31 mm | 45 mm |
| Standover Height | 818 mm | 814 mm | 818 mm | 814 mm | 818 mm | 814 mm | 818 mm | 814 mm | 818 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Element Carbon 70 belongs to the Rockymountain Element model. 77 bikes variations carry this model name so far. Take a sneak peek at all Rockymountain Element bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Rocky Mountain Element Carbon 50 2020 has a starting price of 4599$. Rocky Mountain Element Carbon 90 2020 on the other hand is the most expensive at 7399$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Rocky Mountain released this model in 2020, its price was 5799$. Doing a quick comparison, we notice that Element Carbon 70 price is 204.41% higher than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Element Carbon 70 weighs 12.1 kg (26.68 lbs) and is slightly lighter than the average. In short, the average Crosscountry bike weight is 2.48% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Element Carbon 70 components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Element Carbon 70 has a rear shock with a travel of 100mm. The model Fox Float DPS Performance Elite is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Element Carbon 70 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Element Carbon 70 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
