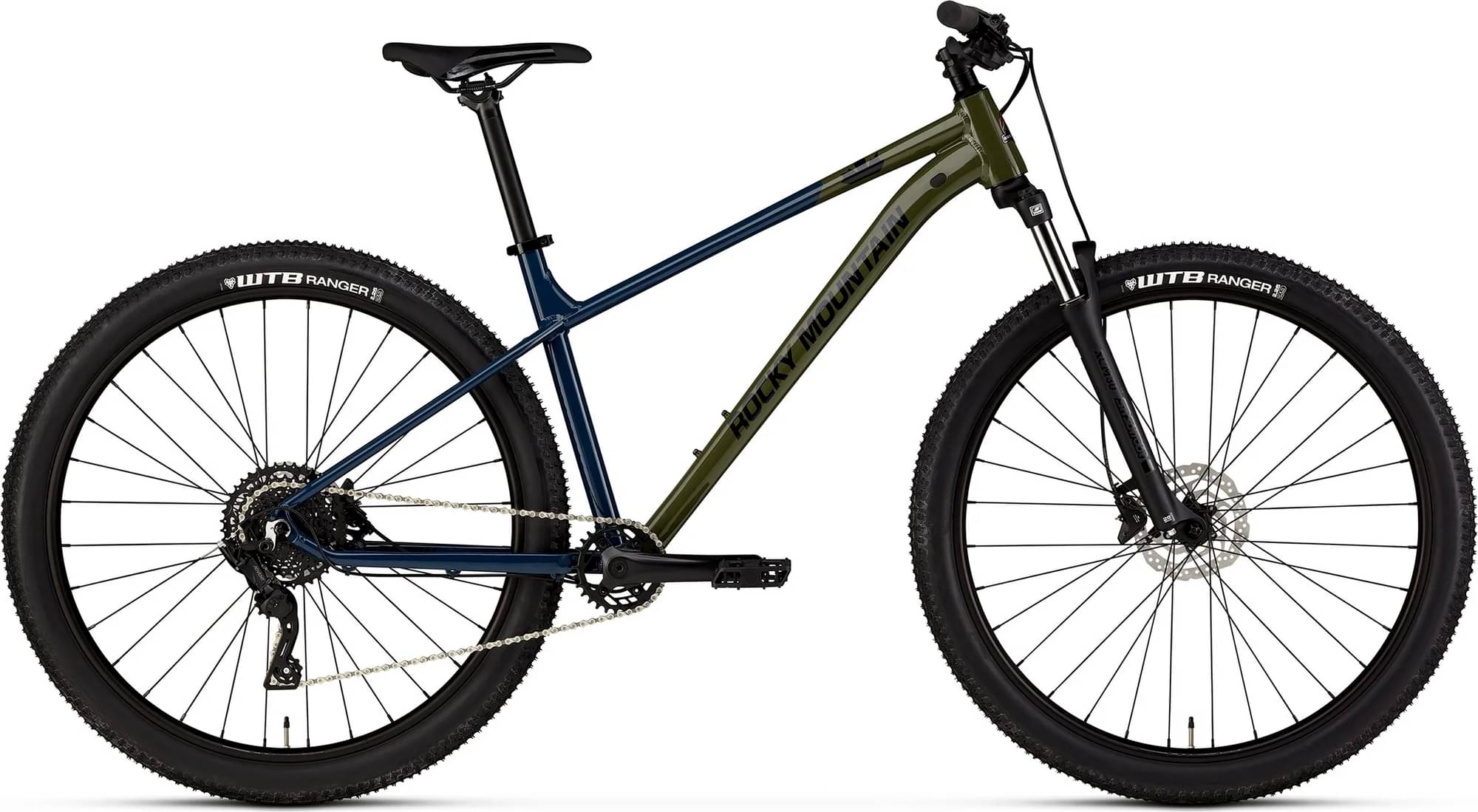

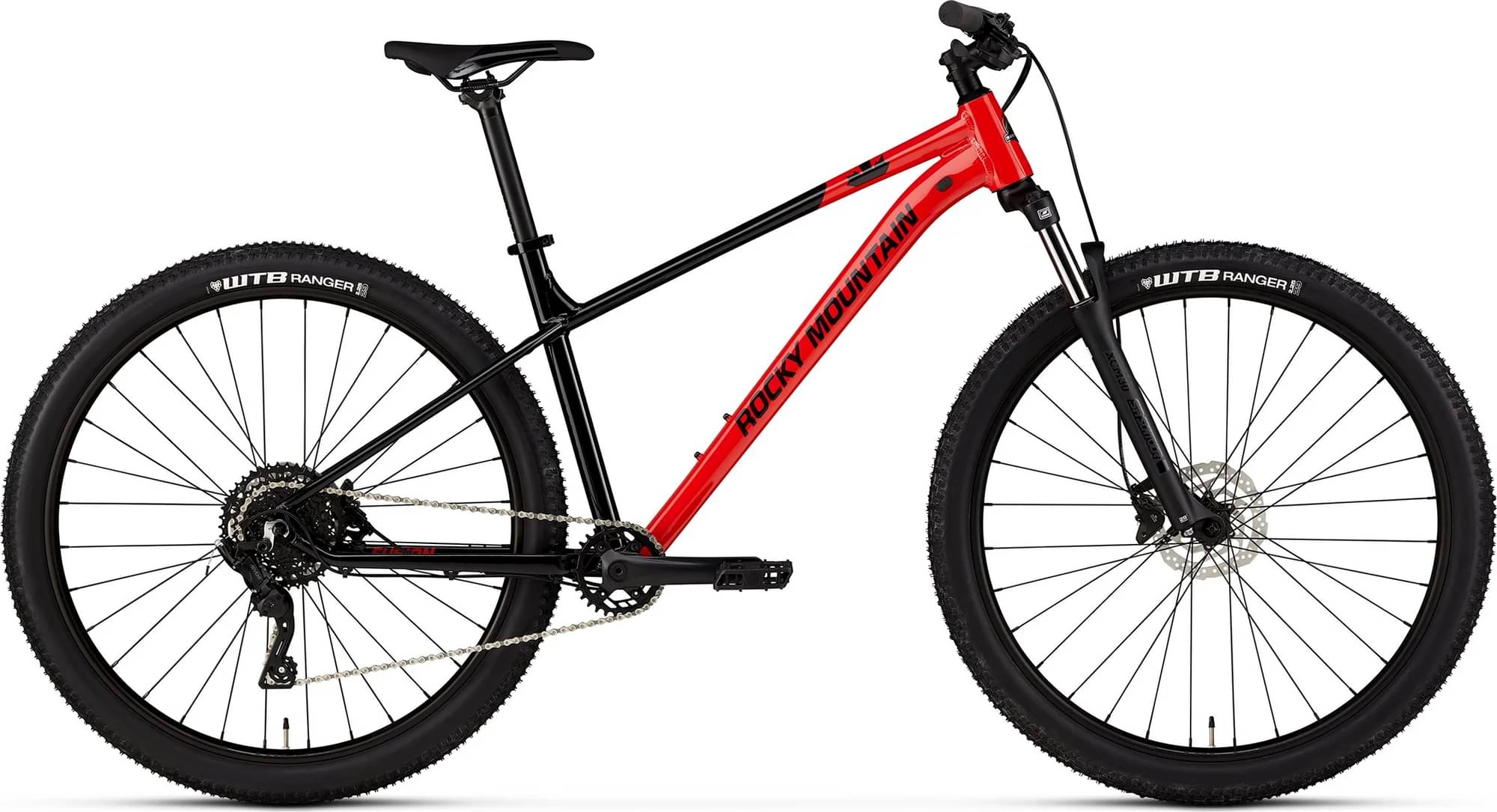

Rocky Mountain Fusion 10 Microshift 2023
2023 Mountain
Estimate price |
909$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 170cm
MD
167cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube Rear Triangle
Suspension Fork
Suntour XCM 100mm
Drivetrain
Rear Derailleur
MicroShift Advent With Clutch
Shift Levers
MicroShift Xpress Plus 9spd
Cassette
MicroShift CS-H093 11-42T
Crank
Rocky Mountain Microdrive 3PC | 30T |76mm Asymmetrical BCD | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC X9
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Spokes
2.0 Stainless
Tires
F: WTB Ranger Comp 29 x 2.25 // R: WTB Ranger Comp 29 x 2.25
Brakes
Brakes
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm
Cockpit
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Handlebar
Rocky Mountain XC | 740mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Seat
Saddle
Rocky Mountain 148 Steel
Seatpost
Rocky Mountain 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 715 mm | 741 mm | 770 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 590 mm | 595 mm | 604 mm | 613 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 586 mm | 613 mm | 640 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1150 mm | 1177 mm | 1206 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 760 mm | 773 mm | 783 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 167 cm | 177 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 188 cm | 198 cm |
Model Overview
Fusion 10 Microshift is a Rockymountain Fusion model. Rocky Mountain launched 35 bikes of this model so far. Take a sneak peek at all Rockymountain Fusion bikes models from 2023, by clicking here.
Model range prices
Rocky Mountain Fusion 10 Microshift 2023 is the most economical model, with a starting price of 909$. Rocky Mountain Fusion 40 2023 on the other hand costs 1439$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Rocky Mountain Fusion 10 Microshift price was 909$. If we compare this with the average Crosscountry bike cost we notice that the price is 109.57% smaller.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Fusion 10 Microshift are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rocky Mountain Fusion 10 Microshift is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
