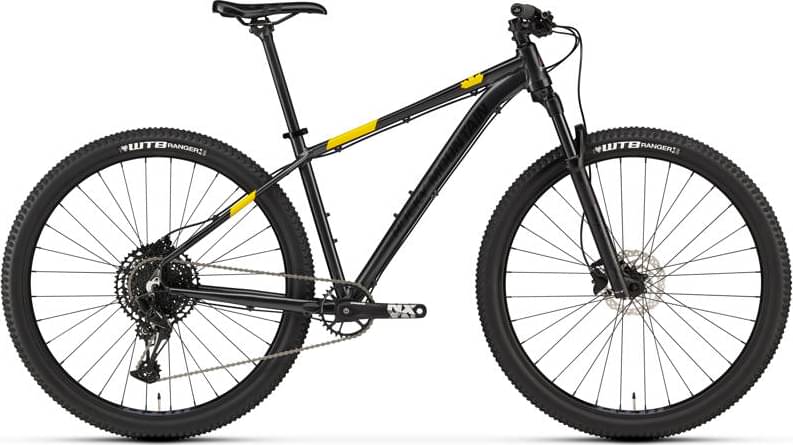

Rocky Mountain Fusion 40 2020
2020 Mountain
Estimate price |
1,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube
Suspension Fork
RockShox 30 Silver Fast Black TK Air 100mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM PG-1210 11-50T
Crank
SRAM SX Eagle Powerspline 30T
Bottom Bracket
SRAM Powerspline
Chain
SRAM SX Eagle
Pedals
Alloy Platform
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
WTB ST i30 TCS 2.0 Tubeless
Spokes
2.0 Stainless
Tires
WTB Ranger Comp 29 x 2.4
Brakes
Brakes
Shimano MT201 2 Piston
Brake Levers
Shimano MT201
Cockpit
Stem
Rocky Mountain XC
Handlebar
Rocky Mountain XC 760mm
Grips
Rocky Mountain Lock On Light
Headset
FSA No. 57B
Seat
Saddle
WTB Volt 142
Seatpost
Rocky Mountain 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.48 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 659 mm | 678 mm | 698 mm | 729 mm |
| Rake | 47 mm | 45 mm | 46 mm | 47 mm |
| Trail | 93 mm | 92 mm | 91 mm | 90 mm |
| Stack | 605 mm | 611 mm | 617 mm | 627 mm |
| Reach | 387 mm | 412 mm | 428 mm | 455 mm |
| Top Tube Length | 569 mm | 594 mm | 619 mm | 649 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1094 mm | 1113 mm | 1133 mm | 1164 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 803 mm | 814 mm | 837 mm | 854 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Fusion 40 completes the Rockymountain Fusion model. 35 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Rocky Mountain Fusion 10 2020 is the cheapest bike model and costs 699$. Rocky Mountain Fusion 40 2020 is the most expensive one and costs 1099$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Rocky Mountain released this model in 2020, its price was 1099$. Doing a quick comparison, we notice that Fusion 40 price is 73.34% smaller than the average cost of a Crosscountry bike.
Overview of components
Fork
This bike has the RockShox 30 Silver TK fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Fusion 40 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rocky Mountain Fusion 40 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
