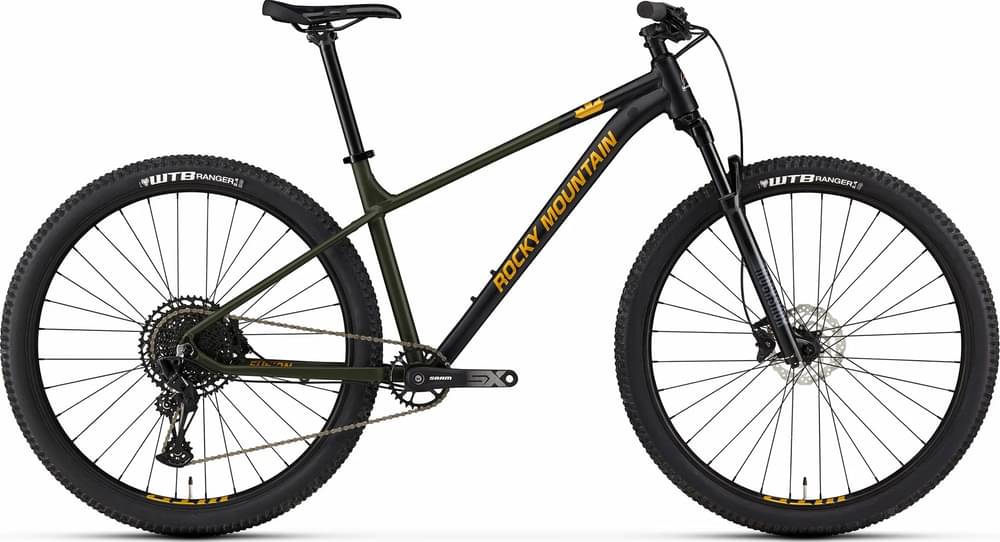

Rocky Mountain Fusion 40 2022
2022 Mountain
Estimate price |
1,439$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 170cm
MD
167cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube Rear Triangle
Suspension Fork
RockShox Judy Silver Fast Black TK Air 100mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM PG-1210 11-50T
Crank
SRAM SX Eagle Powerspline 30T
Bottom Bracket
SRAM Powerspline
Chain
SRAM SX Eagle
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Compatible - Tape and Valves Not Incl
Spokes
2.0 Stainless
Tires
F - WTB Ranger Comp 29 x 2.4 | R - WTB Ranger Comp 29 x 2.4
Brakes
Brakes
Shimano MT4100 2 Piston | Resin Pads
Cockpit
Stem
Rocky Mountain XC
Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
Rocky Mountain | Loose Ball Bearings | 1.5" Crown Race
Seat
Saddle
Rocky Mountain 148 Steel
Seatpost
Rocky Mountain 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 715 mm | 741 mm | 770 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 590 mm | 595 mm | 604 mm | 613 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 586 mm | 613 mm | 640 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1150 mm | 1177 mm | 1206 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 760 mm | 773 mm | 783 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 167 cm | 177 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 188 cm | 198 cm |
About this model
Fusion 40 belongs to the Rockymountain Fusion model. Rocky Mountain released 35 bikes variations of this model so far. Take a sneak peek at all Rockymountain Fusion bikes models from 2022, by clicking here.
Model range prices
Rocky Mountain Fusion 10 2022 is the most economical model, with a starting price of 909$. Rocky Mountain Fusion 40 2022 on the other hand costs 1439$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 1439$. Comparing the average cost of a Crosscountry bike to this one, you will see that Fusion 40 price is 32.38% lower.
Overview of components
Fork
This bike has the RockShox Judy fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Rocky Mountain Fusion 40 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Fusion 40 comes in 4 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
