Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Series Custom Hydroformed Alloy. Threaded BB. Tapered Zerostack Headtube. Rack and Fender Mounts.
Suspension Fork
Suntour XCM-LO.100mm (XS: 80mm)
Drivetrain
Rear Derailleur
Shimano Alivio 9spd
Front Derailleur
Shimano Acera 31.8mm
Shift Levers
Shimano Acera
Cassette
Shimano HG-200 11-34T
Crank
Shimano M371 42/32/22T
Bottom Bracket
Sealed Cartridge
Chain
KMC X9
Wheels
Front Hub
Shimano RM33
Rear Hub
Shimano RM33
Rims
Alex Rims MD19
Spokes
Stainless 2.0
Tires
Maxxis Sphinx 29 x 2.1
Brakes
Brakes
Shimano M355 160mm
Brake Levers
Shimano M355
Cockpit
Stem
Rocky Mountain XC
Handlebar
Rocky Mountain Flat 720mm
Grips
Rocky Mountain XC Kraton
Headset
FSA Orbit NO.57B
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain XC 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.61 mm | 1.51 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 637 mm | 630 mm | 652 mm | 676 mm | 699 mm |
| Rake | 53 mm | 44 mm | 43 mm | 42 mm | 43 mm |
| Trail | 83 mm | 88 mm | 89 mm | 90 mm | 89 mm |
| Stack | 603 mm | 621 mm | 620 mm | 634 mm | 648 mm |
| Reach | 382 mm | 386 mm | 410 mm | 429 mm | 446 mm |
| Top Tube Length | 556 mm | 576 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1084 mm | 1077 mm | 1099 mm | 1123 mm | 1146 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 725 mm | 744 mm | 758 mm | 782 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

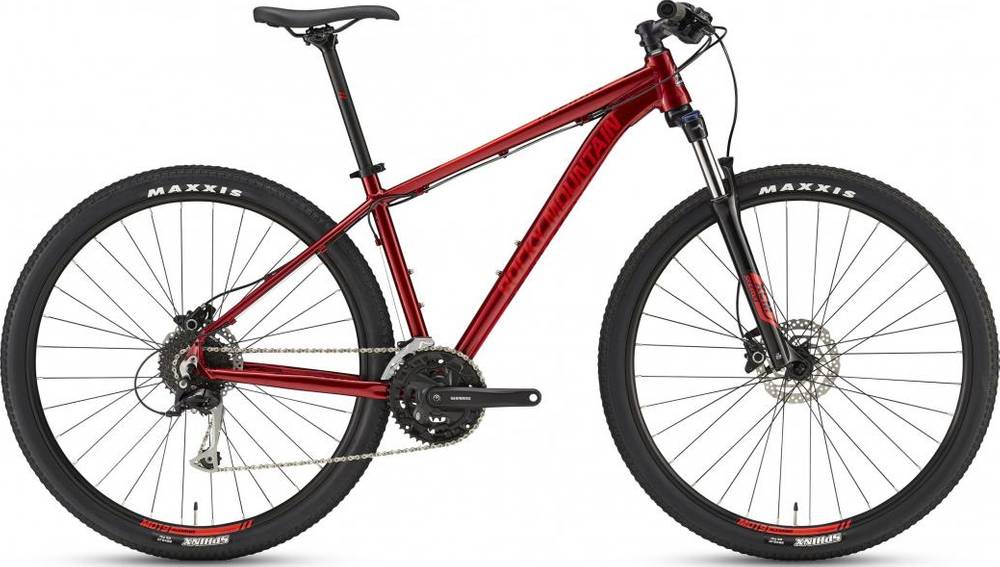

Fusion 920 is a Rockymountain Fusion model. Rocky Mountain launched 35 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Rocky Mountain Fusion 910 2017 is the cheapest bike model and costs 699$. Rocky Mountain Fusion 940 2017 is the most expensive one and costs 999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 799$. Doing a quick comparison, we notice that Fusion 920 price is 138.42% lower than the average cost of a Crosscountry bike.
Fusion 920 components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Rocky Mountain Fusion 920 2017, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fusion 920 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
