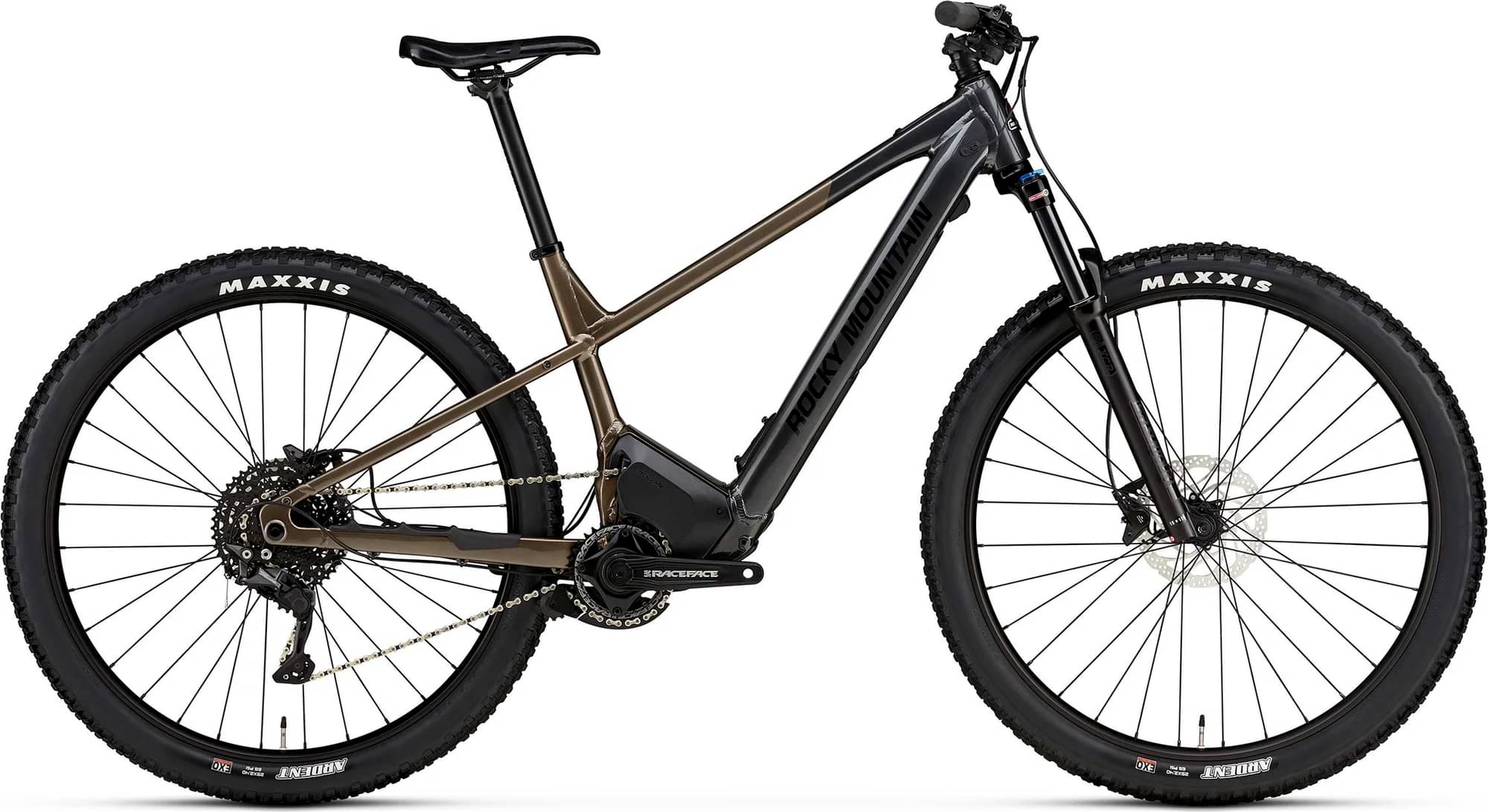

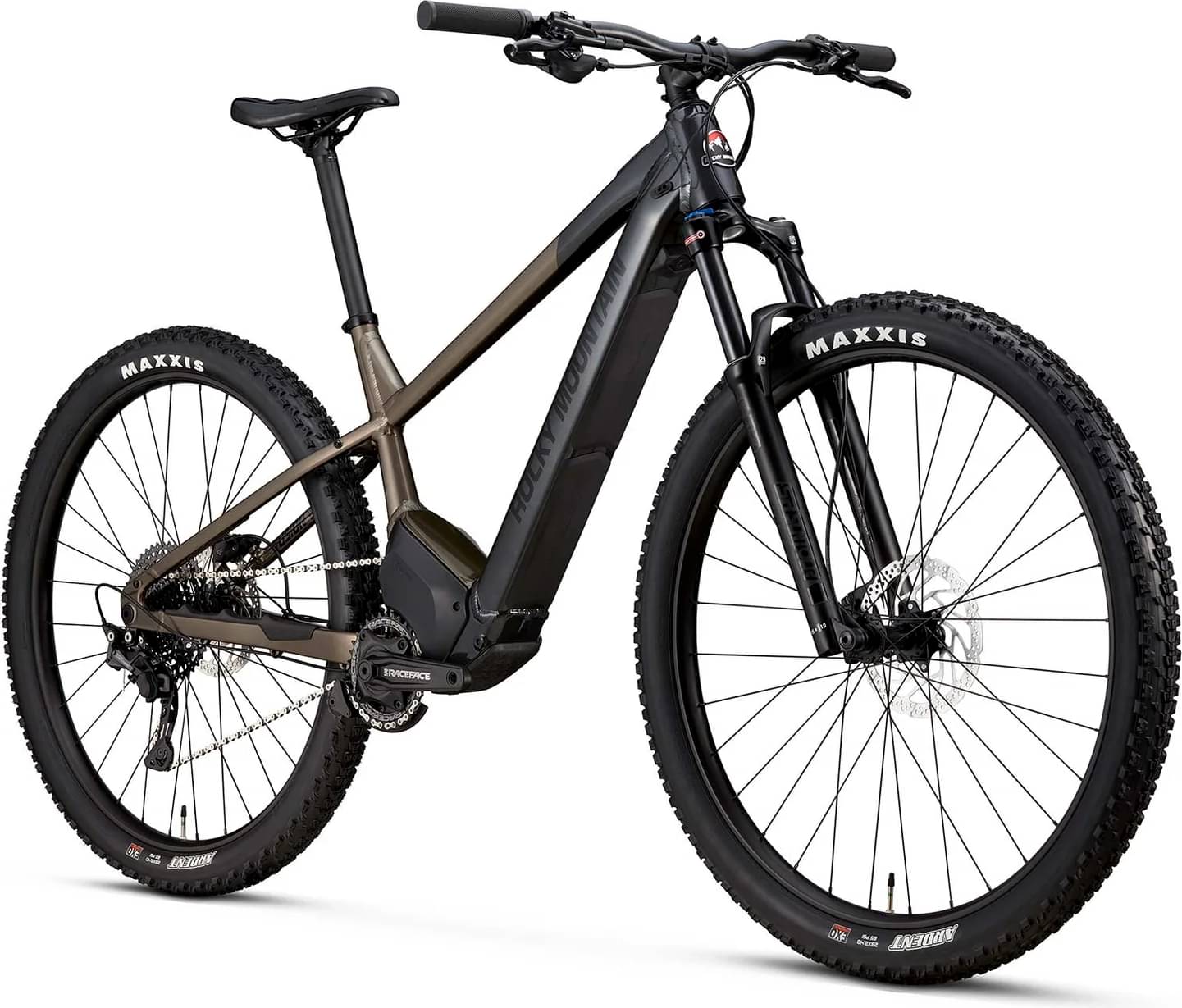

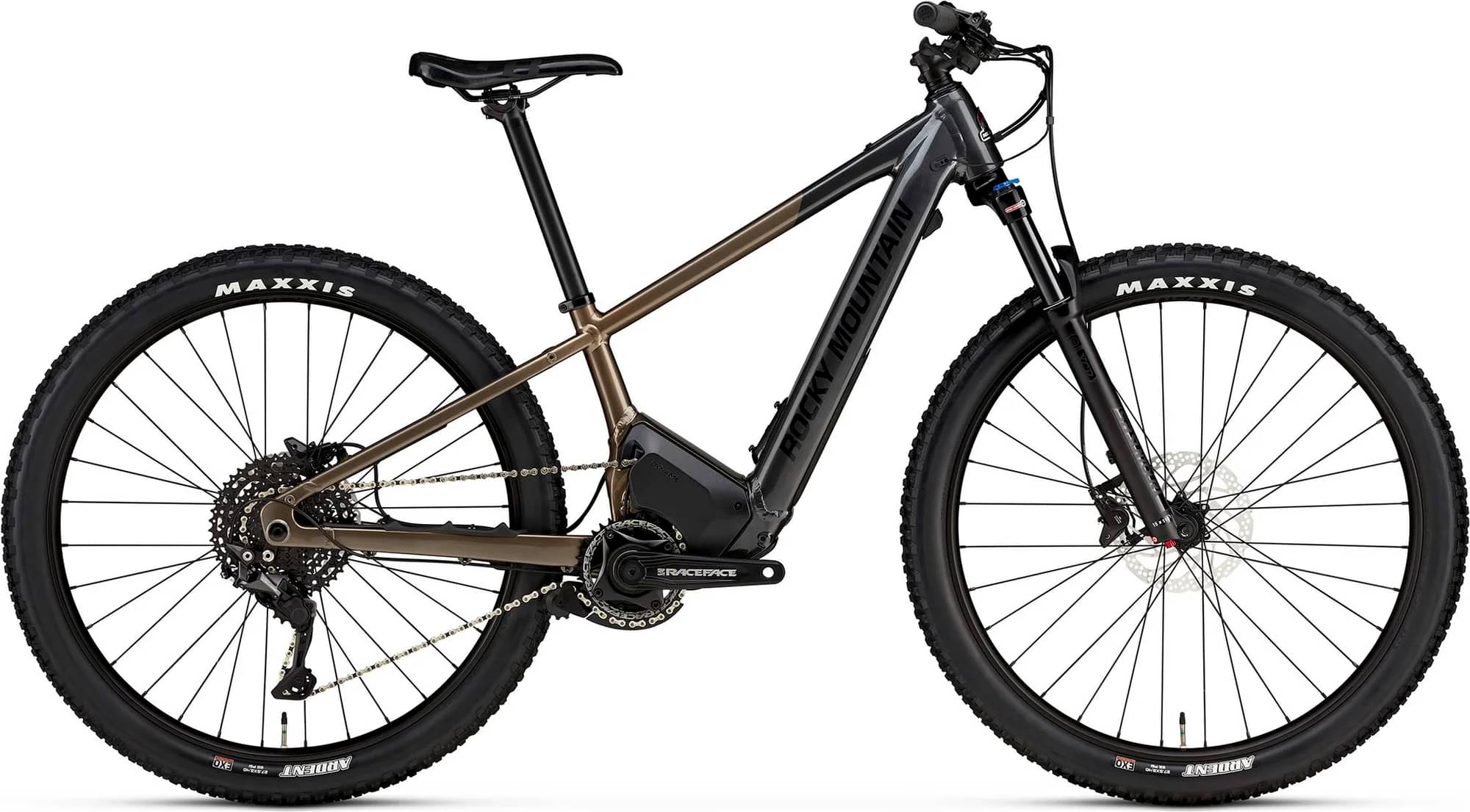

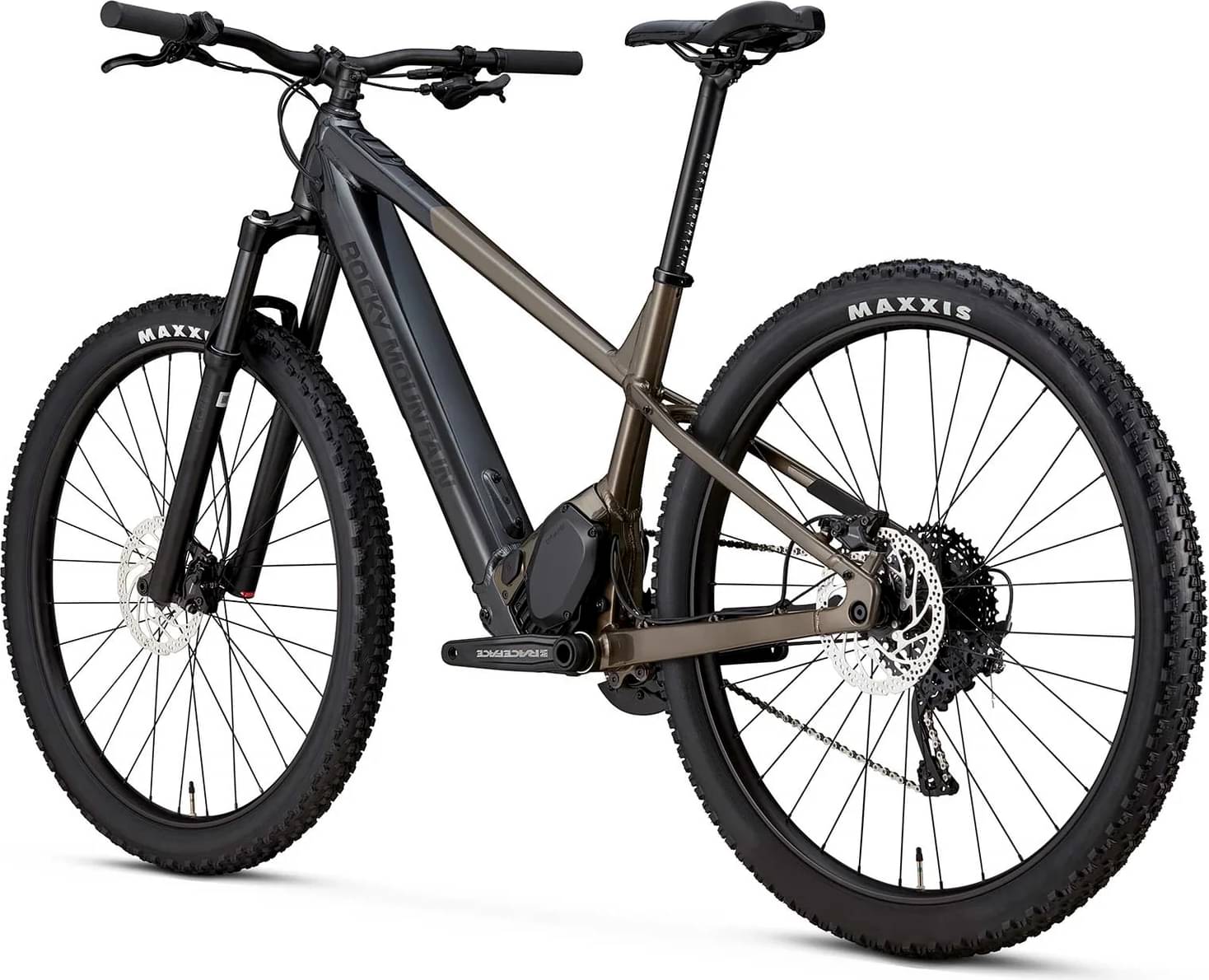

Rocky Mountain Fusion Powerplay 10 Shimano 2023
2023 E-bike
Estimate price |
4,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore, Race Face -
Suspension Hardtail -
Motor Dyname 250W 108Nm mid-drive -
Battery 480 Wh Removable Integrated Li-Ion | 100% Charged in 2:35 (4A) / 5:05 (2A) | 80% Charged in 1:55 (4A) / 4:00 (2A) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 165cm
SM
157cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy | Press Fit BB | Internal Cable Routing | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible. Rear Triangle
Suspension Fork

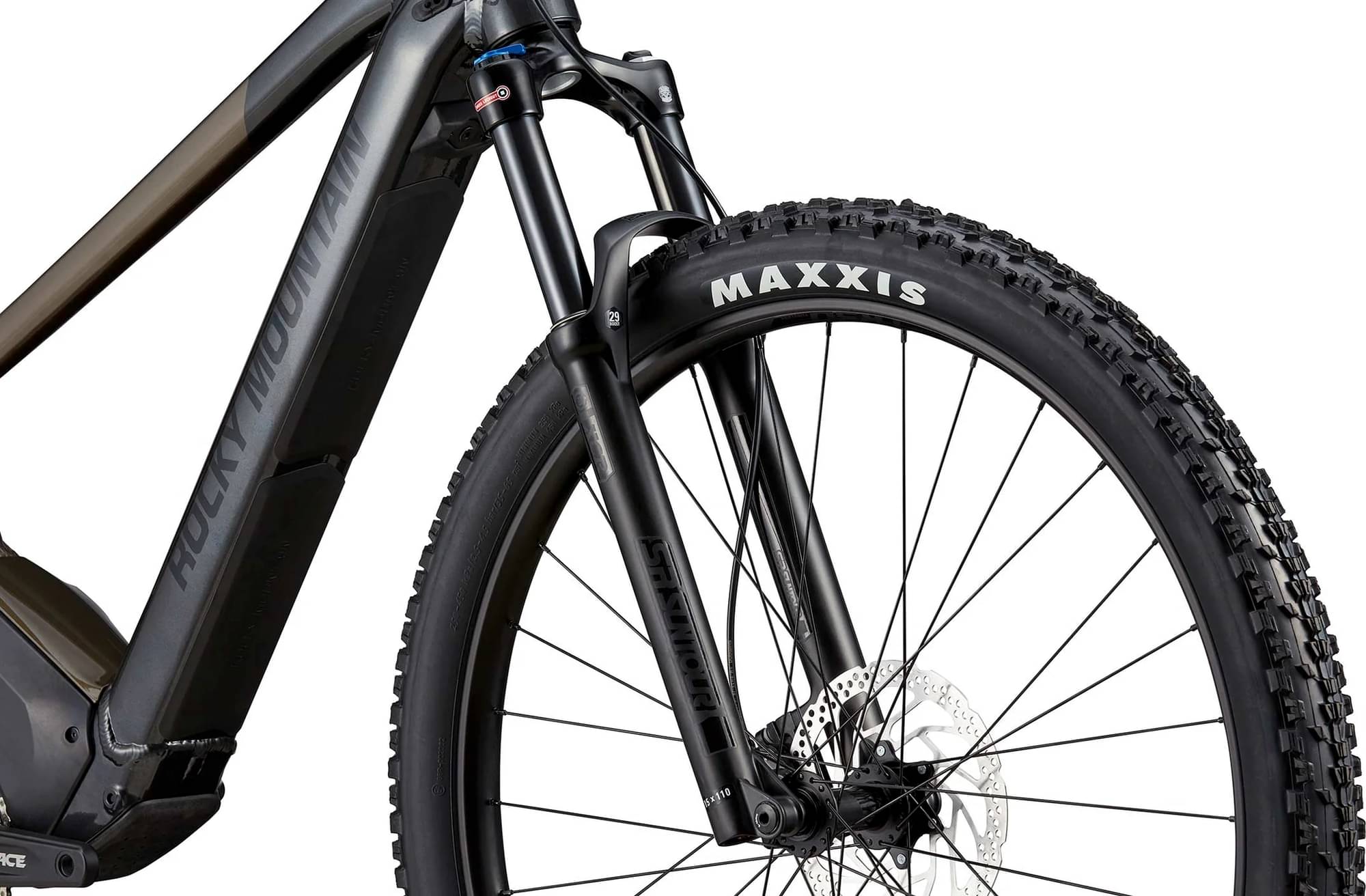

Suntour XCR32 AIR LOR DS Boost 29 = 120mm 46mm Offset | 27.5 = 100mm 42mm Offset
Drivetrain
Rear Derailleur

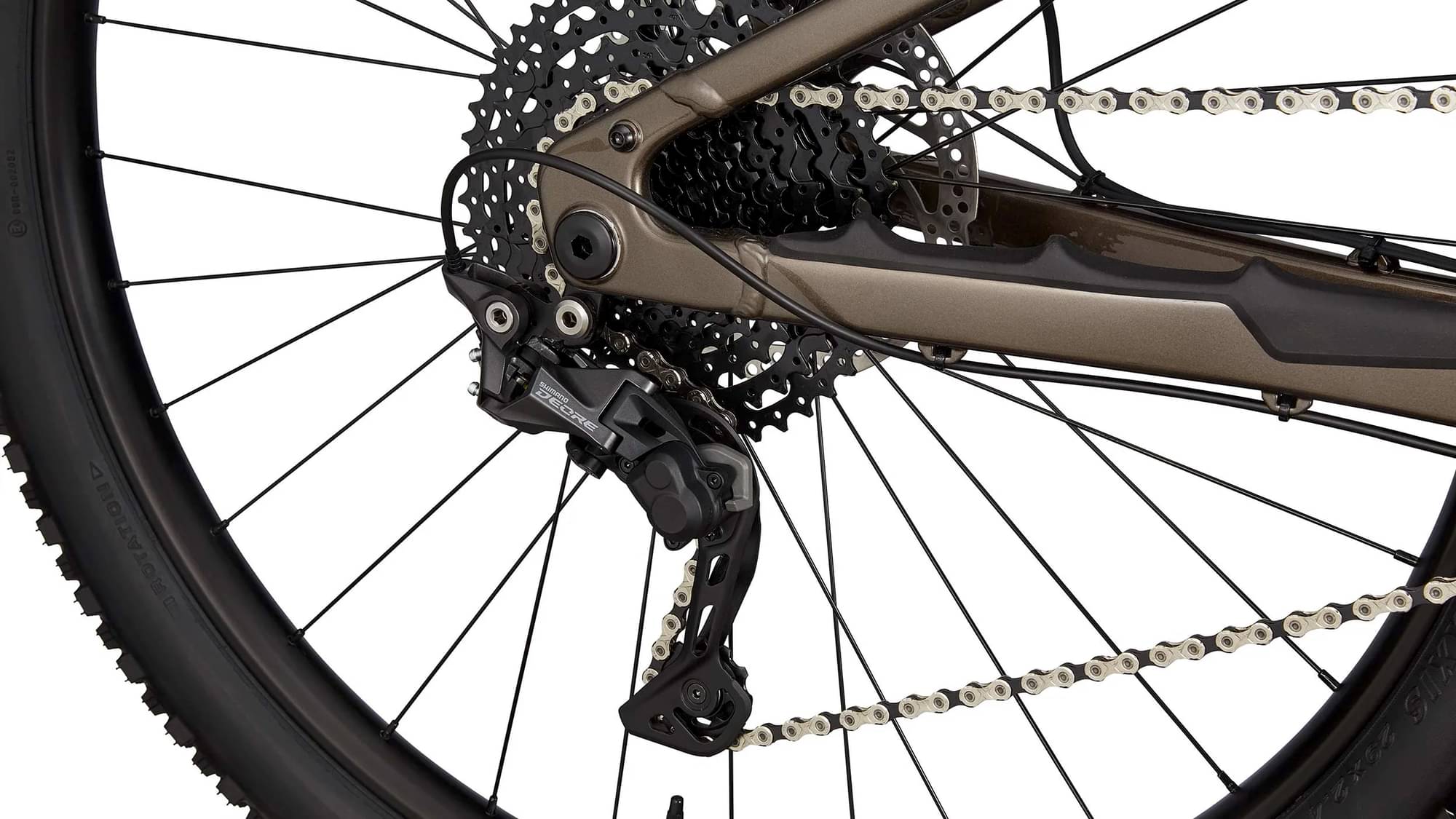

Shimano Deore 10spd
Shift Levers
Shimano Deore 10spd
Cassette
Sunrace CSMS2 11-46T
Crank
Race Face Ride Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Chain
KMC X10-1
Wheels
Front Hub
Shimano MT410 | 15mm Boost
Rear Hub
Shimano MT400 Boost 148mm
Rims
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Spokes
2.0 Stainless
Tires

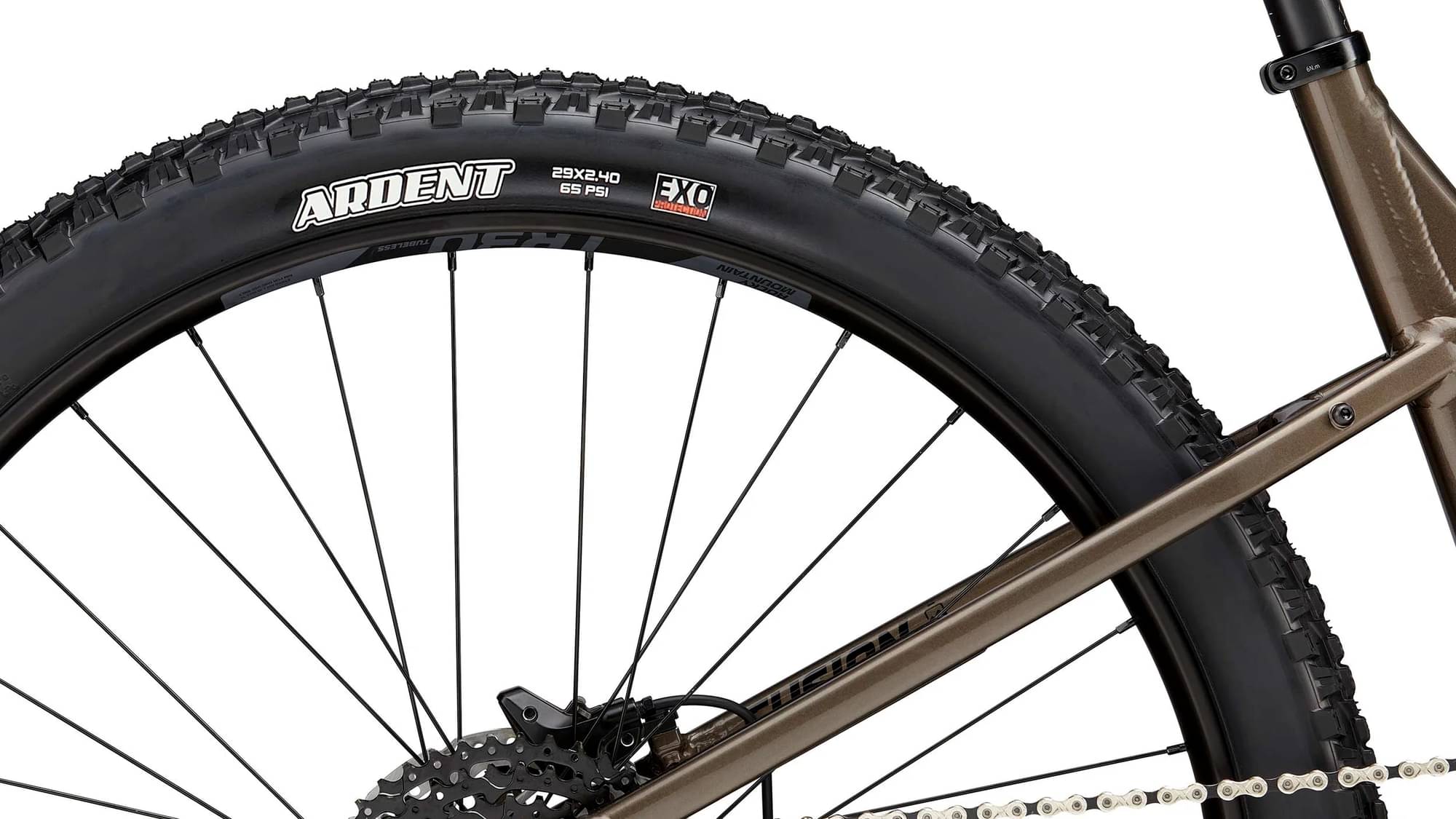

F: Maxxis Ardent 2.4 EXO // R: Maxxis Ardent 2.4 EXO
Brakes
Brakes
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT30 180mm | R:Shimano RT30 180mm
Cockpit
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Volt 142
Seatpost
Rocky Mountain 30.9mm
Motor & Battery
Motor

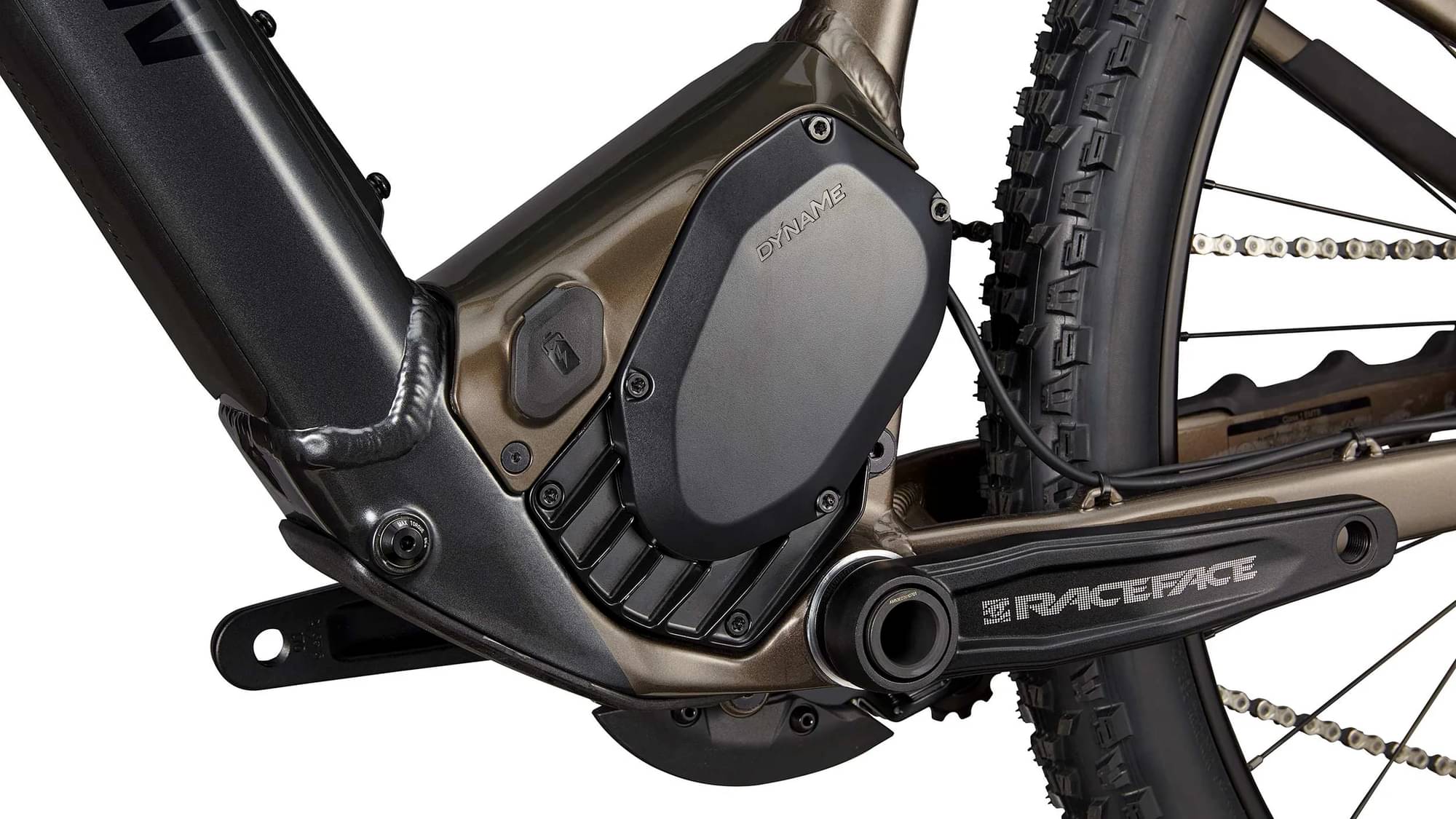

Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery
480 Wh Removable Integrated Li-Ion | 100% Charged in 2:35 (4A) / 5:05 (2A) | 80% Charged in 1:55 (4A) / 4:00 (2A)
Remote

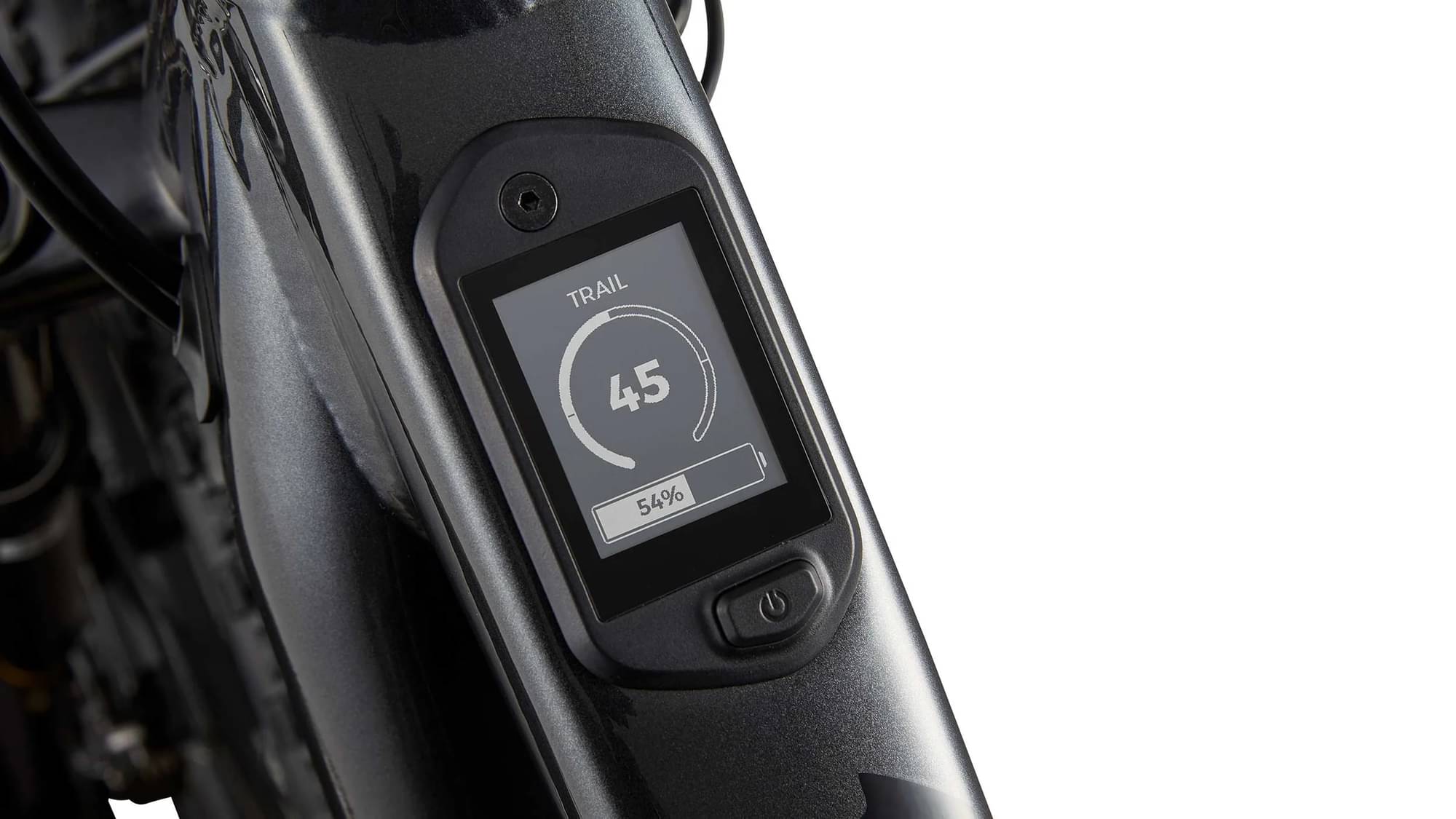

Rocky Mountain Micro Remote
Charger
Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.43 mm | 1.37 mm | 1.3 mm |
| Bottom Bracket Height | 305 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 688 mm | 727 mm | 755 mm | 784 mm | 809 mm |
| Rake | 40 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 118 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Stack | 588 mm | 627.91 mm | 637.08 mm | 646.25 mm | 646.25 mm |
| Reach | 391 mm | 421 mm | 446 mm | 471 mm | 496 mm |
| Top Tube Length | 555 mm | 596.25 mm | 623.79 mm | 651.33 mm | 676.33 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 345 mm | 380 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 100 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 436 mm | 441 mm | 446 mm | 451 mm | 456 mm |
| Wheelbase | 1119 mm | 1161 mm | 1195 mm | 1229 mm | 1259 mm |
| Bottom Bracket Drop | 50 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 773 mm | 792 mm | 791 mm | 787 mm | 782 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 157 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 165 cm | 170 cm | 177 cm | 188 cm | 198 cm |
About this model
Fusion Powerplay 10 Shimano belongs to the Rockymountain E Fusion model. Rocky Mountain launched 4 e-bikes of this model so far. Take a sneak peek at all Rockymountain E Fusion e-bikes models from 2023, by clicking here.
Model range prices
Rocky Mountain Fusion Powerplay 10 Shimano 2023 is the cheapest e-bike model and costs 4299$. Rocky Mountain Fusion Powerplay 30 2023 is the most expensive one and costs 4999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 4299$. In conclusion, this e-bike price is 27.76% higher than the price of the average Trail e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fusion Powerplay 10 Shimano components
Fork
The Fusion Powerplay 10 Shimano comes factory-installed with the Suntour XCR Air fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Fusion Powerplay 10 Shimano are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fusion Powerplay 10 Shimano has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 198 cm (5.12 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
