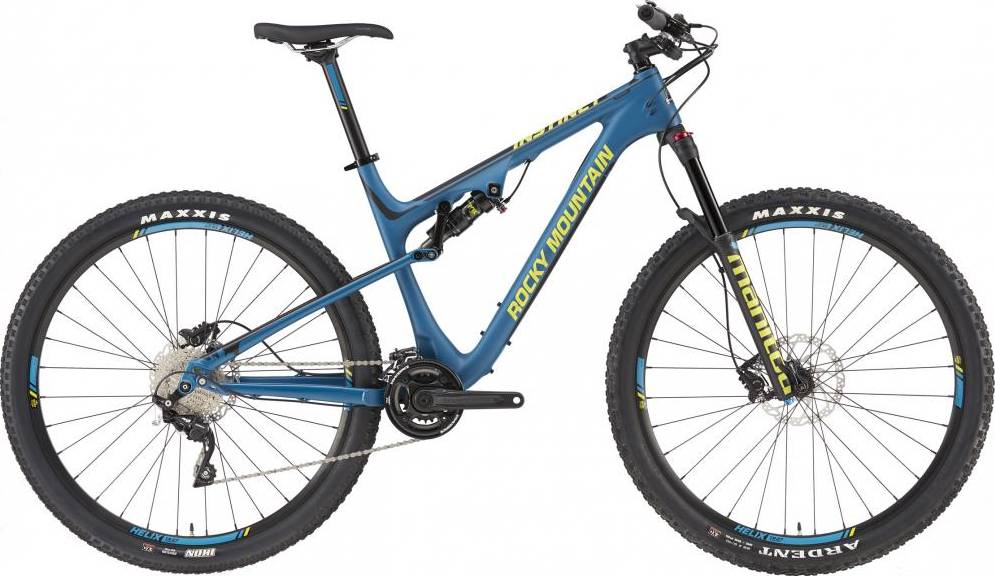

Rocky Mountain Instinct 930 MSL 2016
2016 Mountain
Estimate price |
3,399$
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Manitou
-
Groupset XT, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smoothwall Carbon Front Triangle. FORM 7005 Series Custom Hydroformed Rear Triangle. ABC + BC2 Pivots & Grease Ports. Press Fit BB. Internal Cable Routing. ISCG05 Tabs. RIDE-9 Adjustable Geometry + Suspension Rate
Suspension Fork
Manitou Minute Expert. 130mm. TPC Absolute+ Damper / Hydraulic Bottom Out / Compression / Lockout / Rebound / Tapered Steerer
Rear Shock
Fox Float DPS Remote Custom Valved. SmoothLink Design 130mm. Rebound / Remote Firm - Medium - Open Settings / EVOL Air Sleeve
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus Direct Mount 10spd
Front Derailleur
SRAM X7 S3 Direct Mount 2x10spd
Shift Levers
Shimano SLX Rapid Fire I-Spec 2x10spd
Cassette
Shimano HG50 11-36T 10spd
Crank
Race Face Aeffect Cinch 170-175mm Bash/36/22T 2x10spd
Bottom Bracket
Race Face Press Fit Team XC
Chain
Shimano HG54 10spd
Wheels
Front Hub
Shimano / Centerlock / 32H / 15mm Axle
Rear Hub
Shimano / Centerlock / 32H / 12 x 142mm Axle
Rims
Wheeltech Helix TR27 Tubeless Compatible by SUNringlé
Spokes
WTB 2.0 Stainless
Tires
Maxxis F: Ardent EXO Folding 29\" x 2.4\" R: Ikon EXO Folding 29\" x 2.35\"
Brakes
Brakes
Shimano M506 Hydraulic Disc 180mm
Brake Levers
Shimano M506 I-Spec Shifter Mount
Cockpit
Stem
RMB 6° x 60-80mm
Handlebar
Rocky Mountain Five15 XC 31.8mm x 760mm x 5° Sweep
Grips
Rocky Mountain Lock On XC
Headset
FSA Orbit C-40: IS42mm Top / 52mm Bottom Tapered
Seat
Saddle
WTB Volt Race
Seatpost
Rocky Mountain SL 30.9mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.54 mm | 1.49 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 675 mm | 700 | 724 mm | 750 mm | 776 mm |
| Rake | 47 mm | 46 mm | 46 mm | 46 mm | 44 mm |
| Trail | 111 mm | 112 mm | 112 mm | 112 mm | 114 mm |
| Stack | 599 mm | 608 mm | 618 mm | 627 mm | 641 mm |
| Reach | 372 mm | 394 mm | 414 mm | 436 mm | 458 mm |
| Top Tube Length | 547 mm | 571 mm | 594 mm | 619 mm | 644 mm |
| Seat Tube Angle | 72.6 ° | 72.6 ° | 72.6 ° | 72.6 ° | 72.6 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 508 mm | 546 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1118 mm | 1143 mm | 1167 mm | 1193 mm | 1219 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 724 mm | 724 mm | 724 mm | 724 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Instinct 930 MSL is part of the Rockymountain Instinct model. 89 bikes variations carry this model name so far. Take a sneak peek at all Rockymountain Instinct bikes models from 2016, by clicking here.
Model range prices
The most economical model, the Rocky Mountain Instinct 930 2016 has a starting price of 2499$. Rocky Mountain Instinct 999 MSL 2016 on the other hand is the most expensive at 9499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3399$. Comparing the average cost of a Trail bike to this one, you will see that Instinct 930 MSL price is 23.06% higher.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Instinct 930 MSL has a weight of 13.6 kg (29.98 lbs). To sum up, it’s 4.78% heavier than the average weight of Trail bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Manitou is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Rocky Mountain Instinct 930 MSL bike has the Fox Float DPS Remote Custom Valved. model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Instinct 930 MSL model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Instinct 930 MSL comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
