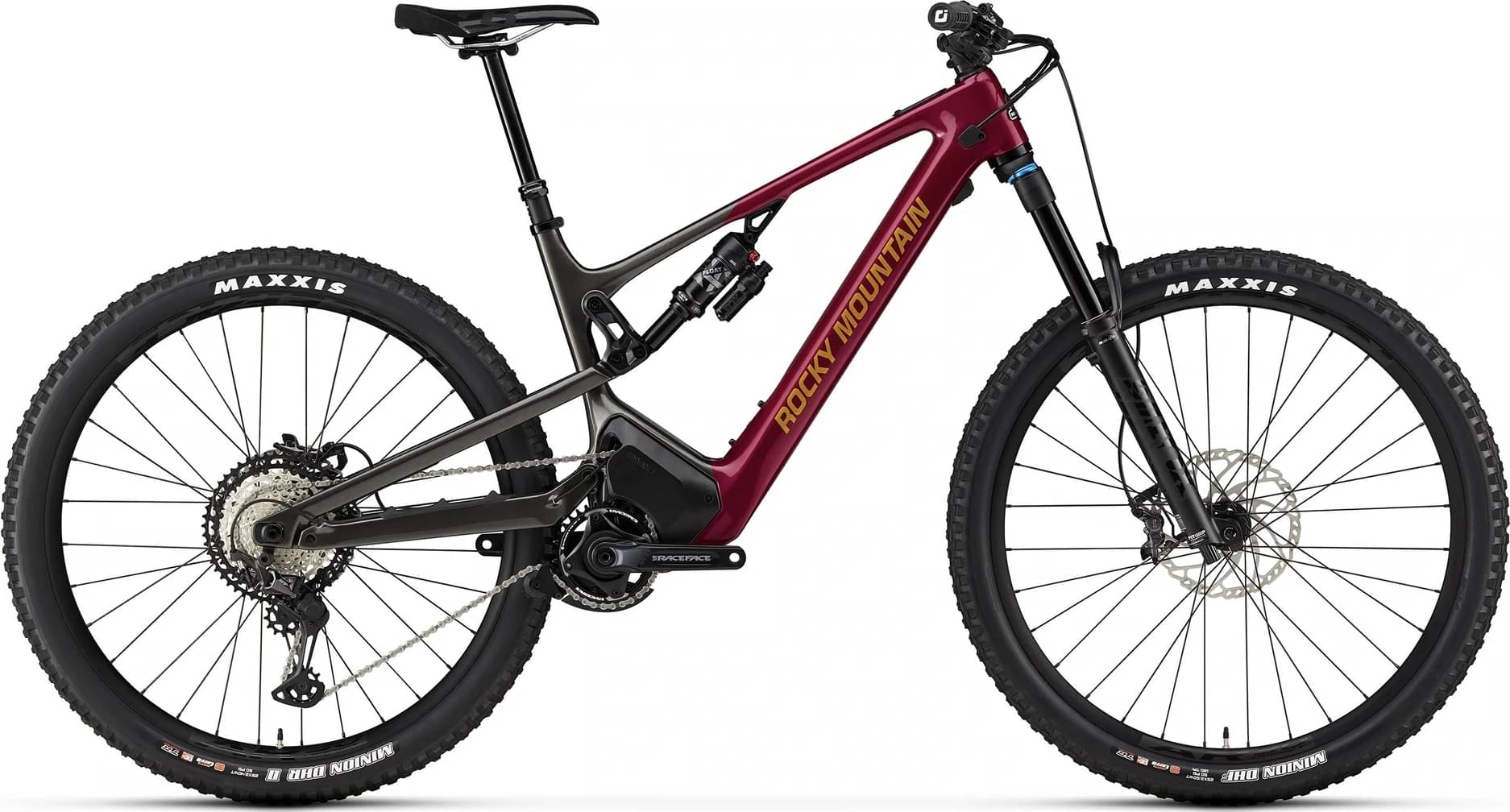

Rocky Mountain Instinct Powerplay Carbon 70 2022
2022 E-bike
Estimate price |
9,159$
Weight | 23.09 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, Race Face -
Suspension Full -
Motor Dyname 250W 108Nm mid-drive -
Battery 720 Wh Removable Integrated Li-Ion | xxx g -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Steep
157cm - 170cm
SM Slack
157cm - 170cm
MD Steep
167cm - 177cm
MD Slack
167cm - 177cm
LG Steep
175cm - 188cm
LG Slack
175cm - 188cm
XL Steep
185cm - 198cm
XL Slack
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL™ Carbon. Integrated Display. Mid-High Pivot Smoothlink Suspension System. Press Fit BB. RIDE-4™ Adjustable Geometry + Suspension Rate. 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Suspension Fork
Fox 36 E-MTB Float EVOL GRIP Performance 150mm | 44mm Offset
Rear Shock
Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano XT 10-51T
Crank
Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Bottom Bracket
FSA BB89.5 24mm
Chain
Shimano M8100
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
DT Swiss Hybrid 370 Boost 148mm
Rims
Race Face AR 30 | 32H | Tubeless Ready - Tape | Valves Incl
Spokes
F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
Tires
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
Brakes
Brakes
Shimano XT Trail 4 Piston | Metal Pads | F: Shimano RT66 203mm | R: Shimano RT66 203mm
Cockpit
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m
Handlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips
ODI Elite Pro Lock On
Headset
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Volt Race 142
Seatpost
Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Motor & Battery
Motor
Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 700w Peak Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency Classe 1 eMTB System | Designed in Canada
Battery
720 Wh Removable Integrated Li-Ion | xxx g
Remote
Rocky Mountain Micro Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Steep | SM Slack | MD Steep | MD Slack | LG Steep | LG Slack | XL Steep | XL Slack |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.45 mm | 1.33 mm | 1.37 mm | 1.28 mm | 1.31 mm | 1.23 mm | 1.26 mm |
| Bottom Bracket Height | 342 mm | 332 mm | 342 mm | 332 mm | 342 mm | 332 mm | 342 mm | 332 mm |
| Front Center | 765 mm | 765 mm | 790 mm | 790 mm | 819 mm | 820 mm | 856 mm | 856 mm |
| Rake | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 47 mm | 47 mm | 46 mm |
| Trail | 125 mm | 130 mm | 125 mm | 130 mm | 125 mm | 129 mm | 123 mm | 130 mm |
| Stack | 615 mm | 621 mm | 615 mm | 621 mm | 623 mm | 629 mm | 636 mm | 643 mm |
| Reach | 438 mm | 429 mm | 463 mm | 454 mm | 488 mm | 479 mm | 517 mm | 509 mm |
| Top Tube Length | 580 mm | 582 mm | 605 mm | 607 mm | 633 mm | 635 mm | 666 mm | 668 mm |
| Seat Tube Angle | 76.95 ° | 76.2 ° | 76.95 ° | 76.2 ° | 76.95 ° | 76.2 ° | 76.95 ° | 76.2 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 420 mm | 445 mm | 445 mm | 480 mm | 480 mm |
| Head Tube Angle | 64.95 ° | 64.2 ° | 64.95 ° | 64.2 ° | 64.95 ° | 64.2 ° | 64.95 ° | 64.2 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 433 mm | 436 mm | 433 mm | 436 mm | 433 mm | 436 mm | 433 mm | 436 mm |
| Wheelbase | 1196 mm | 1198 mm | 1221 mm | 1223 mm | 1250 mm | 1253 mm | 1287 mm | 1289 mm |
| Bottom Bracket Drop | 32 mm | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm |
| Standover Height | 820 mm | 816 mm | 820 mm | 815 mm | 820 mm | 814 mm | 820 mm | 815 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 157 cm | 167 cm | 167 cm | 175 cm | 175 cm | 185 cm | 185 cm |
| Rider Max Height | 170 cm | 170 cm | 177 cm | 177 cm | 188 cm | 188 cm | 198 cm | 198 cm |
About this model
Instinct Powerplay Carbon 70 is a Rockymountain E Instinct model. 37 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Rocky Mountain Instinct Powerplay Alloy 30 2022 is the most affordable e-bike of this model and has a price of 5599$. On the other hand, Rocky Mountain Instinct Powerplay Carbon 90 2022, is the most expensive and costs 12039$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 9159$. In conclusion, this e-bike price is 172.18% higher than the price of the average Trail e-bike.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Rocky Mountain Instinct Powerplay Carbon 70 it’s weighing 23.09 kg (50.9 lbs). At this weight, is slightly lighter than average. In short, the average Trail e-bike weight is 2.64% higher than this one.
Instinct Powerplay Carbon 70 components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rocky Mountain Instinct Powerplay Carbon 70 e-bike has the Fox Float X Performance | Sealed model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Instinct Powerplay Carbon 70 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Rocky Mountain Instinct Powerplay Carbon 70 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 157 cm – 198 cm (5.15 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Rocky Mountain model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
