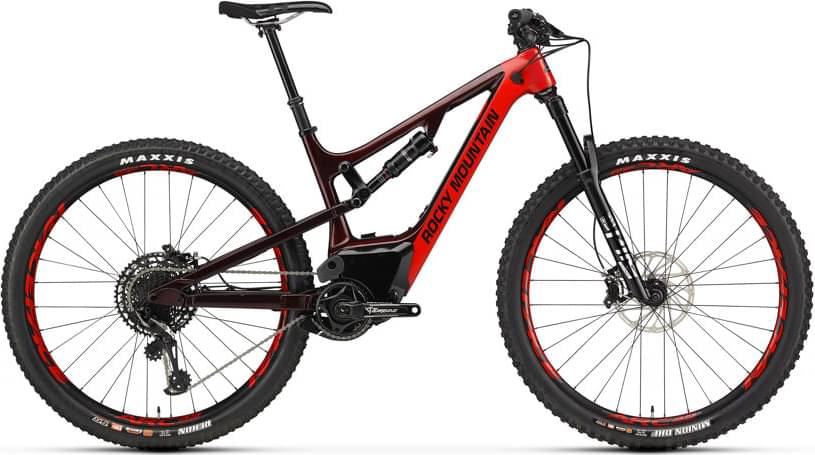

Rocky Mountain Instinct Powerplay Carbon 90 2020
2020 E-bike
Estimate price |
8,599$
Weight | 22.62 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, SRAM -
Suspension Full -
Motor Dyname 250W 108Nm mid-drive -
Battery 672 Wh Fully Integrated Li-Ion | 48V FAST Charger | 80% Charge in 2:10 | 100% Charge in 3:50 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL Carbon Front Triangle. FORM Alloy Rear Triangle. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9 Adjustable Geometry + Suspension Rate.
Suspension Fork
RockShox Pike Ultimate RCT3 140mm E-MTB Approved 42mm Offset
Rear Shock
RockShox Deluxe Ultimate RCT
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01E Eagle
Cassette
SRAM PG-1230 11-50T
Crank
Race Face Turbine Cinch 34T
Bottom Bracket
Race Face BB92 30mm
Chain
SRAM NX Eagle. E-MTB Aprroved.
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm Torque Cap
Rear Hub
DT Swiss Hybrid 350 Boost 148mm
Rims
Race Face ARC 35
Spokes
DT Swiss Alpine 2.3/2.0
Tires
Maxxis Minion DHF EXO+ Maxx Terra Tubeless Ready 29 x 2.6 / Maxxis Rekon Maxx Terra EXO+ Silk Shield Tubeless Ready 29 x 2.6
Brakes
Brakes
SRAM Code RSC / SRAM Centerline 200mm / SRAM Centerline 200mm
Brake Levers
SRAM Code RSC
Cockpit
Stem
Rocky Mountain 35 CNC
Handlebar
Race Face Next R 780mm
Grips
Rocky Mountain Lock On XC
Headset
FSA Orbit NO.57E
Seat
Saddle
WTB Volt Race 142
Seatpost
Race Face Turbine R (by Fox) Dropper 30.9mm
Motor & Battery
Motor
Dyname 3.0 Class 1 eMTB Drive | 250w | 108Nm
Battery
672 Wh Fully Integrated Li-Ion | 48V FAST Charger | 80% Charge in 2:10 | 100% Charge in 3:50
Remote
iWoc Trio
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Steep | SM Steep | SM Slack | SM Slack | MD Steep | MD Steep | MD Slack | MD Slack | LG Steep | LG Steep | LG Slack | LG Slack | XL Steep | XL Steep | XL Slack | XL Slack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.51 mm | 1.51 mm | 1.37 mm | 1.37 mm | 1.42 mm | 1.42 mm | 1.32 mm | 1.32 mm | 1.37 mm | 1.37 mm | 1.26 mm | 1.26 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 351 mm | 332 mm | 338 mm | 319 mm | 351 mm | 332 mm | 337 mm | 318 mm | 351 mm | 332 mm | 337 mm | 318 mm | 351 mm | 332 mm | 337 mm | 318 mm |
| Front Center | 720 mm | 720 mm | 720 mm | 720 mm | 745 mm | 745 mm | 746 mm | 746 mm | 772 mm | 772 mm | 772 mm | 772 mm | 803 mm | 803 mm | 804 mm | 804 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 51 mm | 51 mm | 53 mm | 53 mm | 51 mm | 51 mm | 52 mm | 52 mm | 51 mm | 51 mm | 53 mm | 53 mm |
| Trail | 102 mm | 94 mm | 110 mm | 101 mm | 104 mm | 95 mm | 109 mm | 100 mm | 104 mm | 95 mm | 110 mm | 101 mm | 104 mm | 95 mm | 109 mm | 100 mm |
| Stack | 598 mm | 598 mm | 605 mm | 605 mm | 597 mm | 597 mm | 605 mm | 605 mm | 606 mm | 606 mm | 615 mm | 615 mm | 615 mm | 615 mm | 624 mm | 624 mm |
| Reach | 412 mm | 412 mm | 401 mm | 401 mm | 437 mm | 437 mm | 426 mm | 426 mm | 460 mm | 460 mm | 449 mm | 449 mm | 487 mm | 487 mm | 476 mm | 476 mm |
| Top Tube Length | 566 mm | 566 mm | 569 mm | 569 mm | 590 mm | 590 mm | 593 mm | 593 mm | 616 mm | 616 mm | 619 mm | 619 mm | 647 mm | 647 mm | 650 | 650 |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 74.7 ° | 74.8 ° | 75.8 ° | 75.8 ° | 74.7 ° | 74.9 ° | 75.6 ° | 75.6 ° | 74.6 ° | 74.7 ° | 75.6 ° | 75.6 ° | 74.6 ° | 74.7 ° |
| Seat Tube Length | 394 mm | 394 mm | 394 mm | 394 mm | 432 mm | 432 mm | 432 mm | 432 mm | 470 mm | 470 mm | 470 mm | 470 mm | 508 mm | 508 mm | 508 mm | 508 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 66 ° | 66 ° | 67 ° | 67 ° | 66 ° | 66 ° | 67 ° | 67 ° | 66 ° | 66 ° | 67 ° | 67 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 437 mm | 437 mm | 435 mm | 435 mm | 437 mm | 437 mm | 435 mm | 435 mm | 437 mm | 437 mm | 435 mm | 435 mm | 437 mm | 437 mm |
| Wheelbase | 1154 mm | 1154 mm | 1155 mm | 1155 mm | 1179 mm | 1179 mm | 1181 mm | 1181 mm | 1206 mm | 1206 mm | 1207 mm | 1207 mm | 1237 mm | 1237 mm | 1239 mm | 1239 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 36 mm | 36 mm | 23 mm | 23 mm | 37 mm | 37 mm | 23 mm | 23 mm | 37 mm | 37 mm | 23 mm | 23 mm | 37 mm | 37 mm |
| Standover Height | 815 mm | 801 mm | 810 mm | 796 mm | 809 mm | 801 mm | 804 mm | 796 mm | 808 mm | 801 mm | 802 mm | 796 mm | 806 mm | 801 mm | 800 mm | 796 mm |
| Wheels | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 27" |
Model Overview
Instinct Powerplay Carbon 90 belongs to the Rockymountain E Instinct model. 37 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Rocky Mountain Instinct Powerplay Alloy 30 2020 has a starting price of 4699$. Rocky Mountain Instinct Carbon 99 2020 on the other hand is the most expensive at 9999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Rocky Mountain released this model in 2020, its price was 8599$. Comparing the average cost of a Trail e-bike to this one, you will see that Instinct Powerplay Carbon 90 price is 155.54% higher.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 22.62 kg (49.87 lbs), Rocky Mountain e-bike is slightly lighter than average. In other words, this model is 4.77% lighter than the average Trail e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Instinct Powerplay Carbon 90 components
Fork
Rocky Mountain Instinct Powerplay Carbon 90 2020 e-bike is equipped with the RockShox Pike Ultimate fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Ultimate RCT, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Instinct Powerplay Carbon 90 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Instinct Powerplay Carbon 90 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
The Rocky Mountain model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
